IOC4T 200-560-000-016

Brand: Vibro-Meter
Description: Input/Output Card
Condition: Brand New
Certificate: COO TEST REPORT WARRANTY LETTER
Warranty: 1 year
Inventory Qty: 4
Payment Term: T/T
Shipping Port: Shenzhen

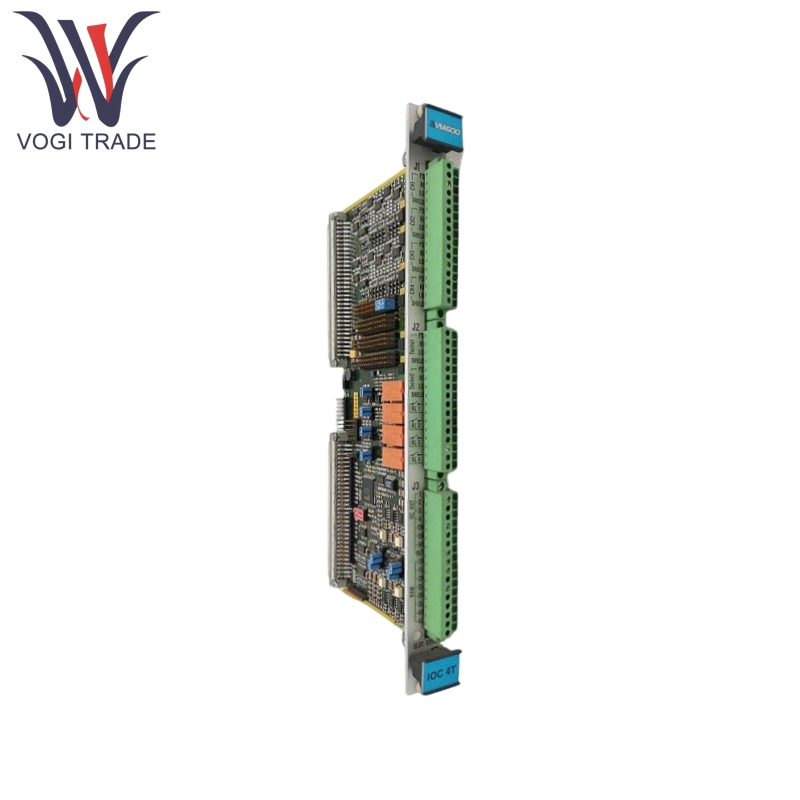

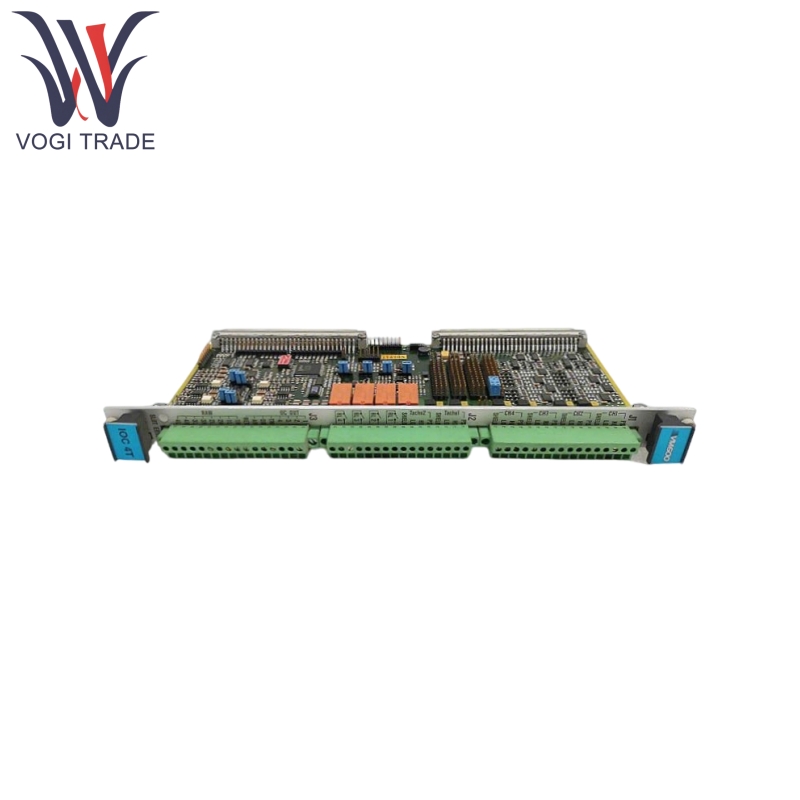

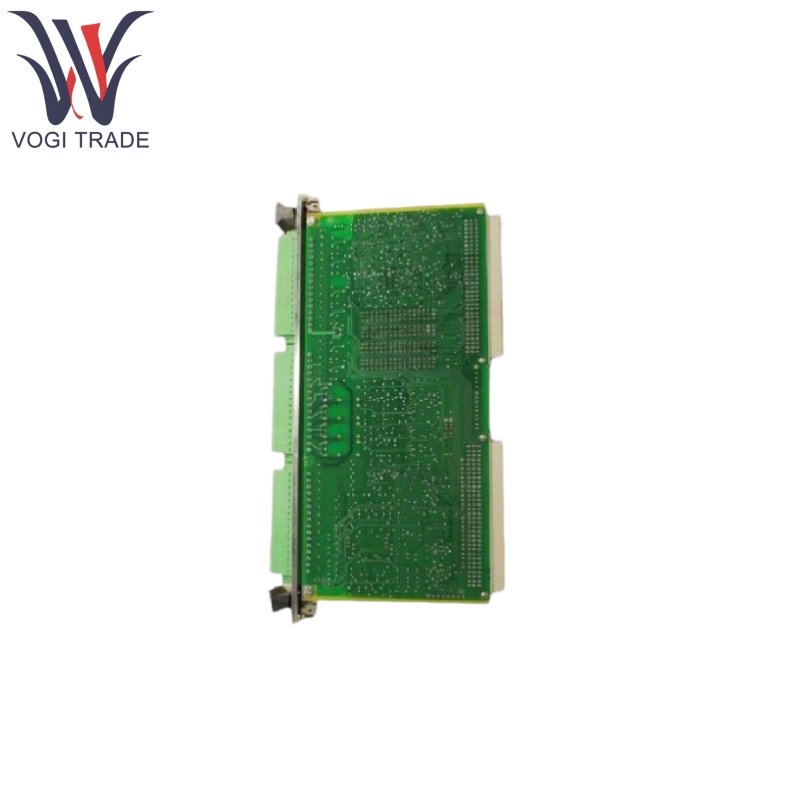

IOC4T 200-560-000-016 input/output card acts as a signal interface for the VM600 series MPC4 machinery protection card. Installed at the rear of a VM600 rack, it connects directly to the rack backplane via two connectors.

Send Inquiry

Product Description

Manufacture
Vibro-Meter
Model Number
IOC4T
Ordering Number
200-560-000-016
Catalog
VM600
Country Of Origin Switzerland
HS CODE

8473309000

Dimension 28*4*14cm
Weight
0.4kg

Product Feature

Signal interface card with 4 dynamic signal inputs and 2 tachometer (speed) inputs, for the MPC4 machinery protection card

Screw-terminal connectors (48 terminals) for all input/output connections

Contains 4 relays which can be attributed to alarm signals, under software control

32 fully-programmable open-collector outputs (jumper selectable) to IRC4 and RLC16 relay cards

Buffered “raw” sensor signals and analog output signals (voltage or current) for vibration channels

EMI protection for all inputs and outputs

Live insertion and removal of cards (hot-swappable)

Available in “standard” and “separate circuits” versions


Product Application

Signal Acquisition and Processing:

IOC4T 200-560-000-016 connecting raw dynamic (vibration) and speed signals from sensors to the MPC4, with buffered outputs and analog conversions (0 to 10 V voltage or 4 to 20 mA current) for monitored parameters .

Alarm and Relay Control:

IOC4T 200-560-000-016 providing 4 local relays and 32 programmable open-collector outputs to trigger alarms, bypass danger signals, or control external systems (e.g., RLC16/IRC4 relay cards) under software control .

Industrial Monitoring Systems:

IOC4T 200-560-000-016 integrating with the VM600 rack to support machinery protection in sectors like power generation, oil & gas, and industrial manufacturing, where real-time vibration and speed monitoring is critical
