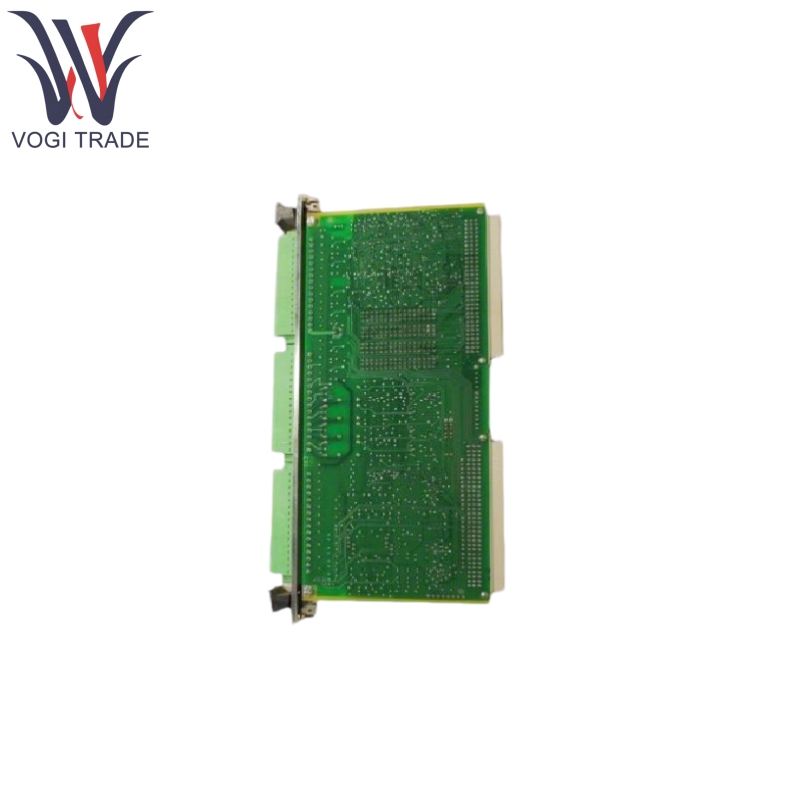

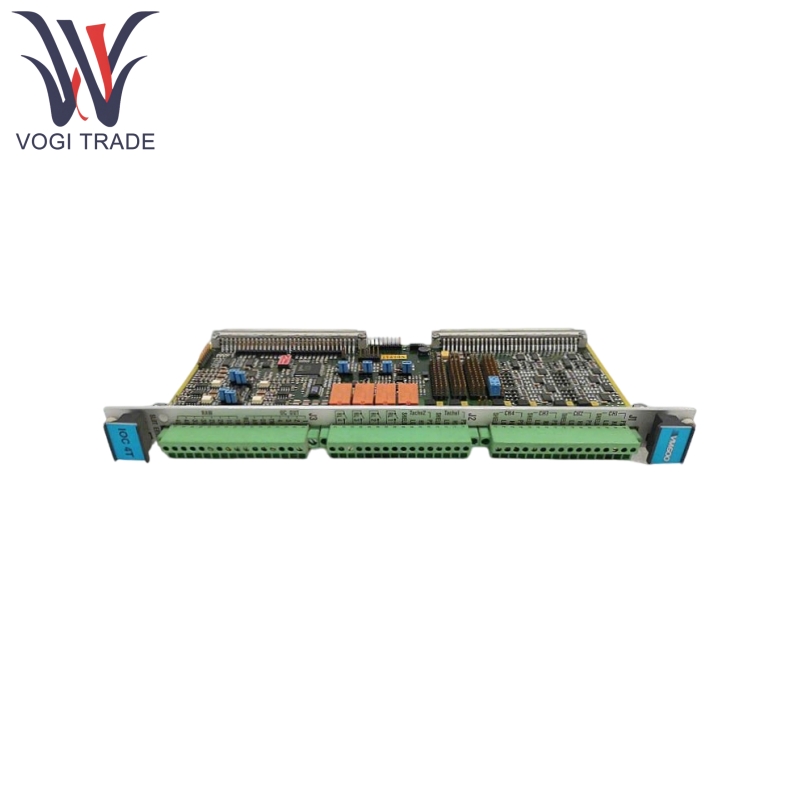

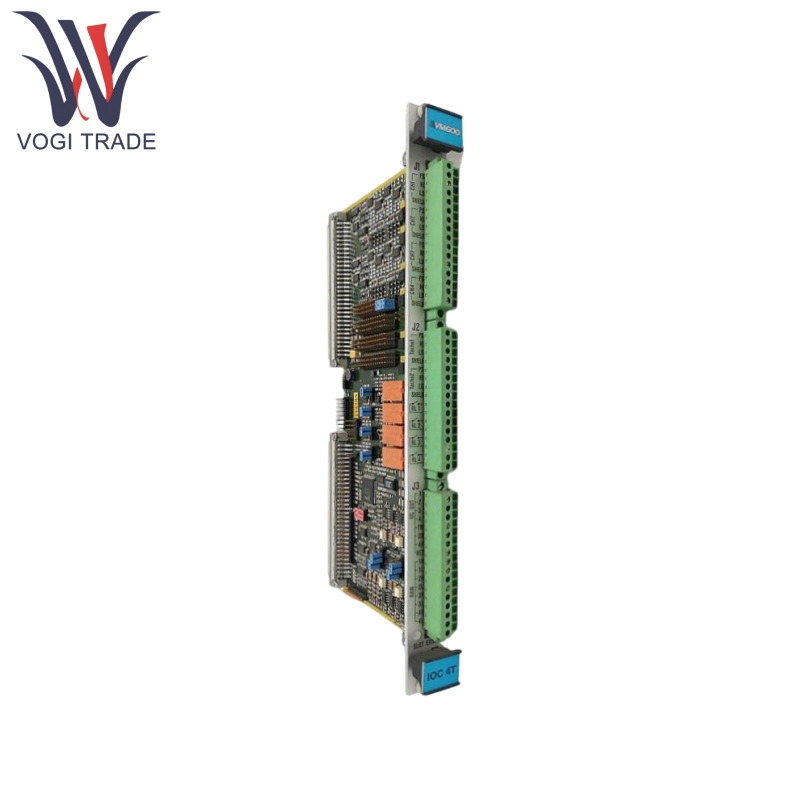

Brand: Vibro-Meter Description: Input/Output Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 5 Payment Term: T/T Shipping Port: Shenzhen IOC4T 200-560-000-019 serves as a signal interface for the VM600 series MPC4 machinery protection card. It is mounted at the back of a VM600 rack and connects directly to the rack's backplane through two connectors.
|
Manufacture |
Vibro-Meter |
|
Model Number |
IOC4T |
|
Ordering Number |
200-560-000-019 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
28*4*14cm |
|
Weight |
0.4kg |
Product Specification
The IOC4T 200-560-000-019 features dynamic signal inputs for receiving time-varying signals.
The IOC4T 200-560-000-019 is equipped with buffered dynamic signal outputs to deliver stable, drive-capable dynamic signals.
The IOC4T 200-560-000-019 includes speed/phase reference inputs for receiving signals related to speed measurement and phase synchronization.
The IOC4T 200-560-000-019 incorporates discrete signal interface (DSI) inputs for accepting on/off or high/low discrete signals.
The IOC4T 200-560-000-019 is designed with alarm outputs to trigger alerts when abnormal conditions are detected.
The IOC4T 200-560-000-019 provides analog (DC) outputs for delivering continuously variable direct current signals.
Product Parameters
Environmental
Temperature Operating: −25 to 65°C (−13 to 149°F)
Temperature Storage: −40 to 85°C (−40 to 185°F)
Humidity Operating: 0 to 90% non-condensing
Humidity Storage: 0 to 95% non-condensing
Communication
MPC4 to IOC4T bus: Similar to industry pack (IP)
Configuration
MPC4/IOC4T card pair: Software configurable via an RS-232 or Ethernet connection, using a computer running the VM600 MPSx software. Hardware configurable using jumpers on the MPC4/IOC4T card pair. (Note: Configuration via an Ethernet connection requires a CPUx card acting as a rack controller in the VM600 rack.)
Status
SLOT ERROR: Used to indicate indicates whether the IOC4T is installed in the correct slot of the VM600 rack
