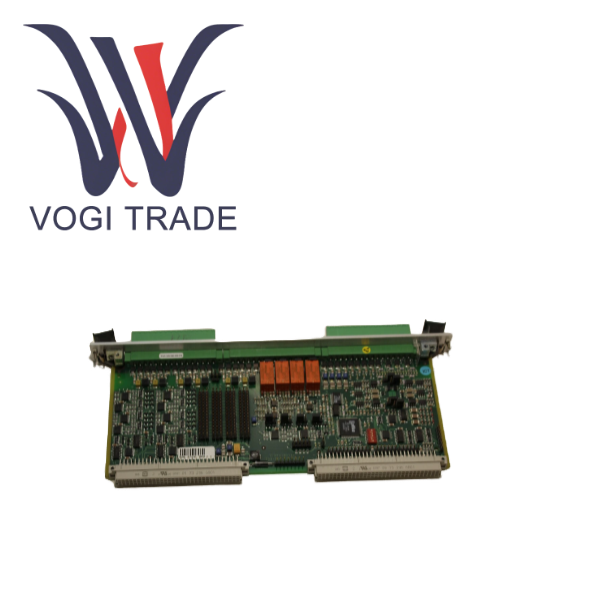

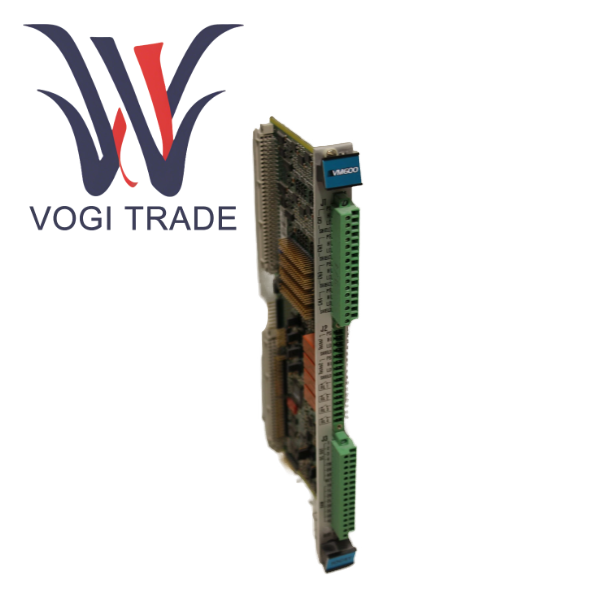

IOC4T 200-560-000-061

Detailed Comparison of Advantages and Disadvantages

Advantages

Flexibility and adaptability

The core logic of software-defined functions, such as the functions of relays, alarm thresholds, and filter Settings, is entirely defined by the VM600 MPSx software. This means that the same hardware card can be reconfigured through software to adapt to different machines, different monitoring strategies, and even undergo functional upgrades after device modifications without the need to replace the hardware.

Hardware jumpers are a safety net. For key analog output types, physical jumpers are provided as an option. This provides an additional layer of protection for those occasions where there are extremely high requirements for the security of software configuration, ensuring that even if the software is operated by mistake, the output signal type will not change.

A robust design for harsh industrial environments

EMC/EMI protection: 200-560-000-061. All input and output channels are equipped with built-in filters that comply with EC standards, effectively resisting common electromagnetic interference in industrial sites and ensuring the purity of the signal.

Optional Conformal Coating is available. For environments with high humidity, high dust or corrosive gases, the IOC4T can order a version with conformal coating, which provides additional physical and chemical protection for the circuit board and significantly extends its service life.

Disadvantage

The inherent limitations of the standard version in the field of functional safety

Although the standard version of IOC4T supports SIL 1 applications, its internal circuits are not physically isolated. In critical safety circuits that require SIL 2 or SIL 3 certification, it cannot meet the requirements of an independent protective layer. At this point, users have no choice but to purchase the "separated circuit" version, which is several times more expensive. This has caused the standard version to lose its competitiveness in the high-end security market.

In the standard version, all channels share the same set of power supply and ground plane. Theoretically, a serious electrical fault may simultaneously affect multiple channels, leading to the collective failure of protection functions. The "separated circuit" version minimizes the risk of common cause failure through physical isolation.

The limitations of operation and maintenance and diagnosis

The limited self-diagnostic capability is reflected in the fact that IOC4T 200-560-000-061 mainly relies on MPC4 for status reporting. If the card itself experiences a hardware failure, its self-diagnostic capability is relatively limited. It may need to rely on external testing or replacement methods to locate the fault, which increases the average repair time.

Although it supports "plugging and unplugging while powered on", in actual operation, there is still a risk in plugging and unplugging an I/O card carrying critical protection signals while powered on. Improper operation may introduce interference in an instant, causing the MPC4 to misjudge and even triggering unnecessary downtime. Therefore, the operation and maintenance regulations of many factories prohibit the insertion and removal of such cards during operation.

Related Product Recommendations

To build a complete working unit around IOC4T 200-560-000-061, the following key products are required:

Core pairing card

It is recommended to choose the later hardware version of the MPC4 main processing card to ensure a 50Ω output impedance match with the IOC4T and achieve full RoHS compliance.

System platform and power supply

The VM600 rack ABE04x provides physical installation slots and backplane communication.

The RPS6U rack power supply provides working power for the entire rack.

Communication and Management

The CPU4 rack controller must be equipped with this card if remote configuration and data access via Ethernet are required.

The VM600 Manager software is used for configuring, calibrating, monitoring and analyzing data of card pairs.

Front-end sensors and cables

Sensor TQ402/TQ412 eddy current probe and the matching 3300 XL 8mm preamplifier; MPU magnetoelectric tachometer probe.

Extended cable RG178/RG179 coaxial cable.
