IOC4T 200-560-000-111
  • IOC4T 200-560-000-111 IOC4T 200-560-000-111
  • IOC4T 200-560-000-111 IOC4T 200-560-000-111
  • IOC4T 200-560-000-111 IOC4T 200-560-000-111

IOC4T 200-560-000-111

Brand: Vibro-Meter
Description: Input/Output Card
Condition: Brand New
Certificate: COO TEST REPORT WARRANTY LETTER
Warranty: 1 year
Inventory Qty: 15
Payment Term: T/T
Shipping Port: Shenzhen

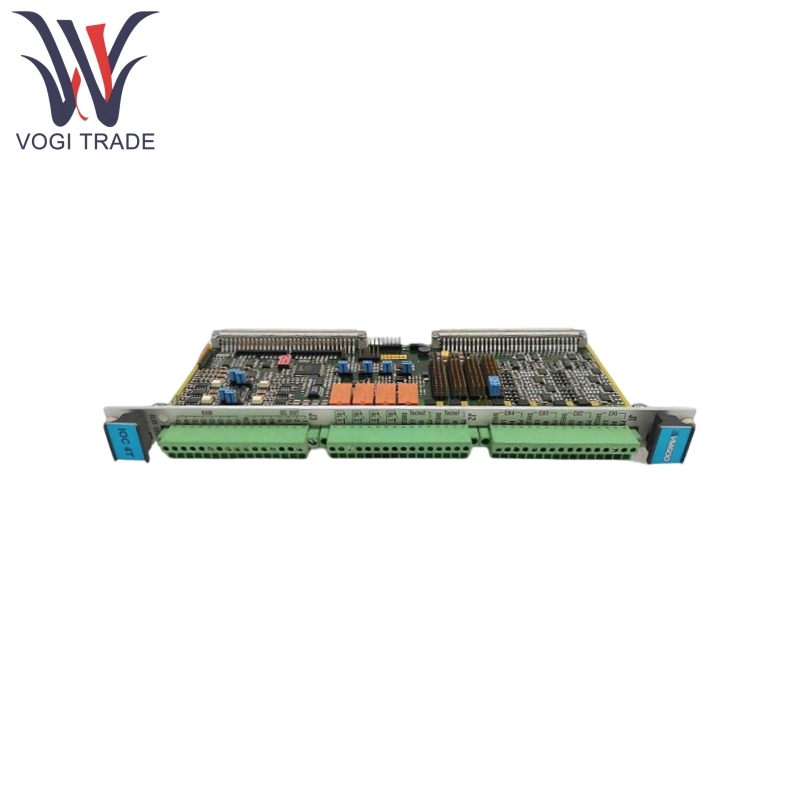

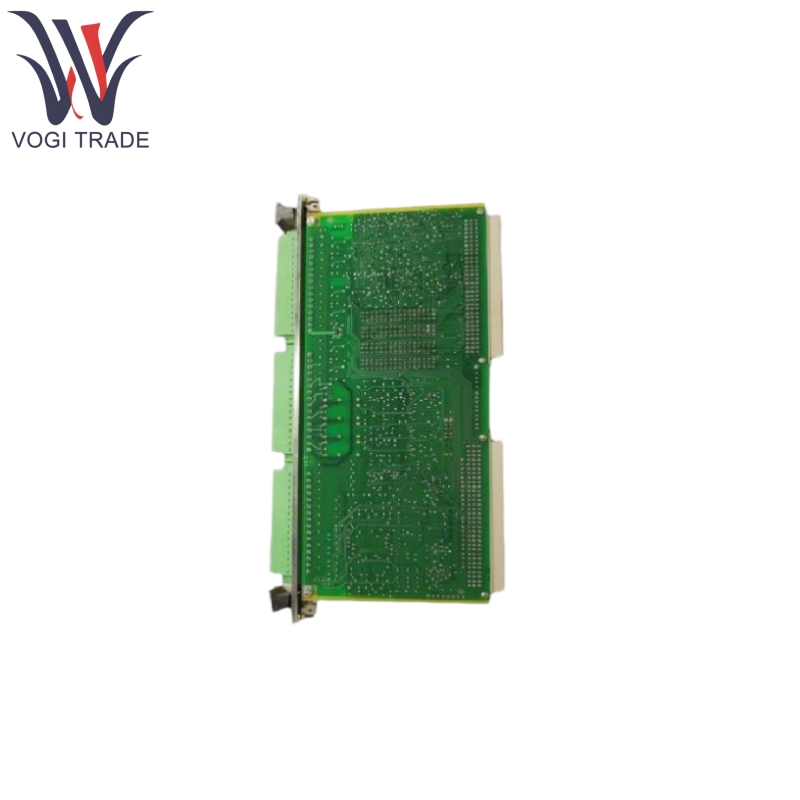

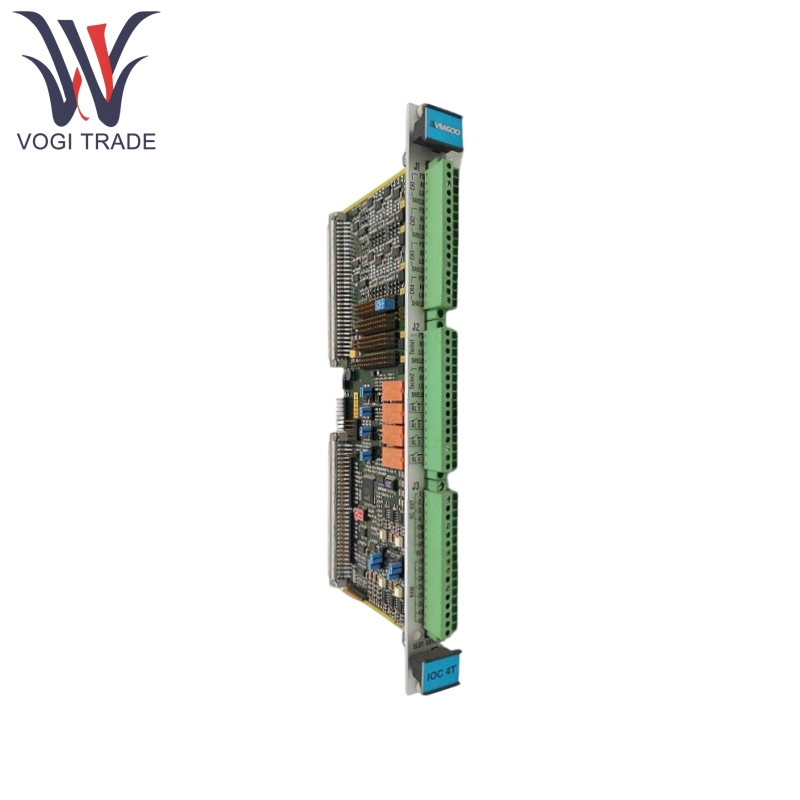

IOC4T 200-560-000-111 input/output card serves as a signal interface for the VM600 series MPC4 machinery protection card. It is mounted at the back of a VM600 rack and connects directly to the rack's backplane through two connectors.

Send Inquiry

Product Description

Manufacture
Vibro-Meter
Model Number
IOC4T
Ordering Number
200-560-000-111
Catalog VM600
Country Of Origin
Switzerland
HS CODE
8473309000
Dimension
28*4*14cm
Weight
0.4kg


Product Specification

1. Each IOC4T 200-560-000-111 card is associated with a corresponding MPC4 card and is mounted directly behind it in the VM600 rack (ABE04x or ABE056). And lOC4T operates in slave mode and communicates with the MPC4, through connector P2, using an industry Pack (IP) interface.

2. The front panel of the lOC4T 200-560-000-111 (rear of the VM600rack) contains terminal strip connectors for wiring to the transmission cables coming from measurement chains (sensors and /or signal conditioners). The screw-terminal connectors are also used to input all signals from and output all signals to any external control system.

3. The IOC4T 200-560-000-111 card protects all inputs and outputs against electromagnetic interference (EMI) and signal surges and also meets electromagnetic compatibility (EMC) standards.

4. The IOC4T 200-560-000-111 connects the raw dynamic (vibration) and speed signals from the sensors to the MPC4. These signals, once processed, are passed back to the IOC4T and made available on the terminal strip on its front panel (rear of VM600). For the dynamic signals, four on-board digital-to-analog converters (DACs) provide calibrated signal outputs in the range 0 to 10 V. In addition, four on board voltage-to-current converters allow the signals to be provided as current outputs in the range 4 to 20 mA (jumper selectable).

5. The IOC4T 200-560-000-111 contains four local relays that can be attributed to any specific alarm signals under software control. For example, these may be used to signal an MPC4 fault or a problem detected by a common alarm (Sensor OK, Alarm and Danger) in a typical application.


Product Parameters

Analog (DC) outputs:

Number of output: 4 per IOC4T card (one per MPC4 dynamic signal channel)

Signal range: Current output (4 to 20 mA) or voltage output (0 to 10 V), individually selectable by a jumper on the IOC4T for each output (Note: For current outputs, the analog output is actually driven in a slightly wider 2 to 23 mA range, proportional to the input signal.)

Accuracy: ≤±0.5%

Linearity error: ≤±0.5%

Admissible load on output: >100 kΩ for voltage output and <325 Ω for current output


Relay characteristics:

Relay names: RL1 to RL4

Type: PE014005

Contact arrangement: 1 x NC or 1 x NO contact per relay (user configurable). The selected contacts are available on J2

Nominal rated voltage: 250 VAC

Nominal rated current: 5 AAC

Maximum breaking capacity (without contact protection): 1250 VA

Operate / release / bounce time: Typically 8 / 8 / 6 ms

Dielectric strength test voltages:

between open contacts: 1000 VAC

between contact and coil: 4000 VAC


Power supply to card (input):

Power source: VM600 rack power supply

Supply voltages: +5 VDC and ±12 VDC

Consumption from +5 VDC supply: 1.5 W

Consumption from ±12 VDC supply: 0.7 W, plus an additional 0.25 W per current output used
