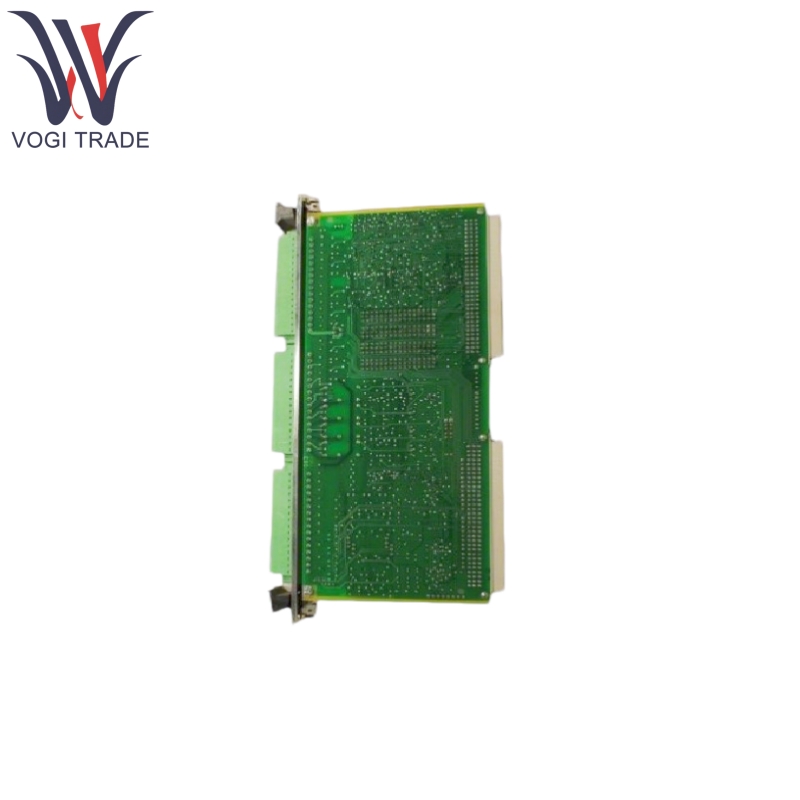

Brand: Vibro-Meter Description: Input/Output Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Shenzhen IOC4T 200-560-000-114 acts as a signal interface for the VM600 series MPC4 machinery protection card. Installed at the rear of a VM600 rack, it connects directly to the rack backplane via two connectors.
|
Manufacture |
Vibro-Meter |
|
Model Number |
IOC4T |
|
Ordering Number |
200-560-000-114 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
28*4*14cm |
|
Weight |
0.4kg |
Product Specification
Connectors Types:
The IOC4T 200-560-000-114 features J1, a 16-contact screw-terminal connector, which serves as the interface for analog signal inputs corresponding to dynamic measurement channels 1 to 4.
The IOC4T 200-560-000-114 includes J2, a 16-contact screw-terminal connector, functioning as the interface for analog signal inputs of tachometer (speed) channels 1 to 2 and outputs for relays RL1 to RL4.
The IOC4T 200-560-000-114 is equipped with J3, a 16-contact screw-terminal connector.
Inputs (digital signals) for DSI control signals: AR, DB and TM. Outputs (analog signals) for DC outputs 1 to 4. Outputs (analog signals) for buffered “raw” sensor outputs for dynamic measurement channels 1 to 4.
Ordering Information
IOC4T-Standard-200-560-000-1Hh
IOC4T-Separate circuits-200-560-000-2Hh
