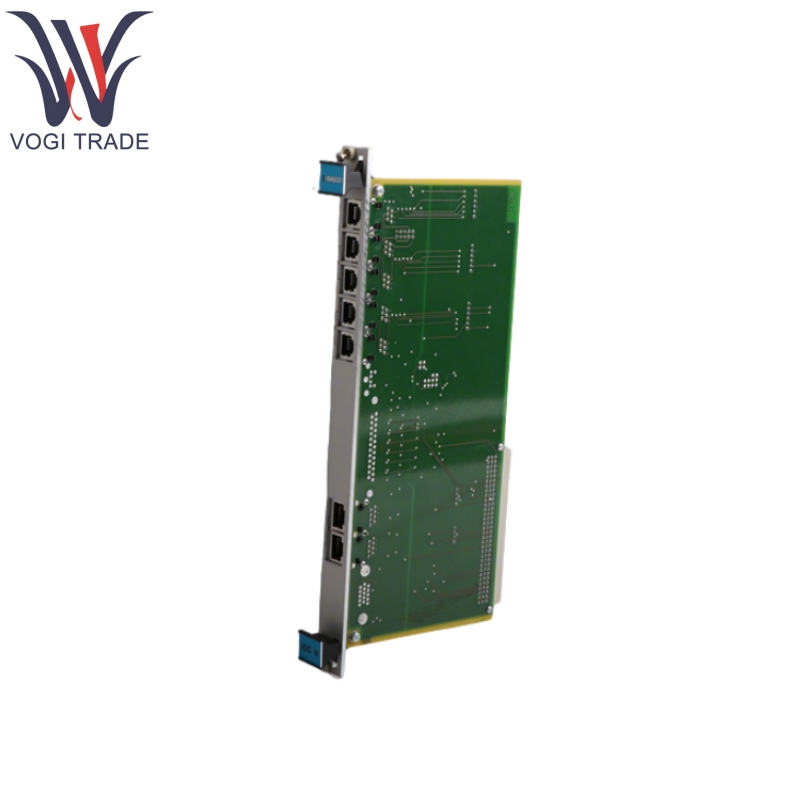

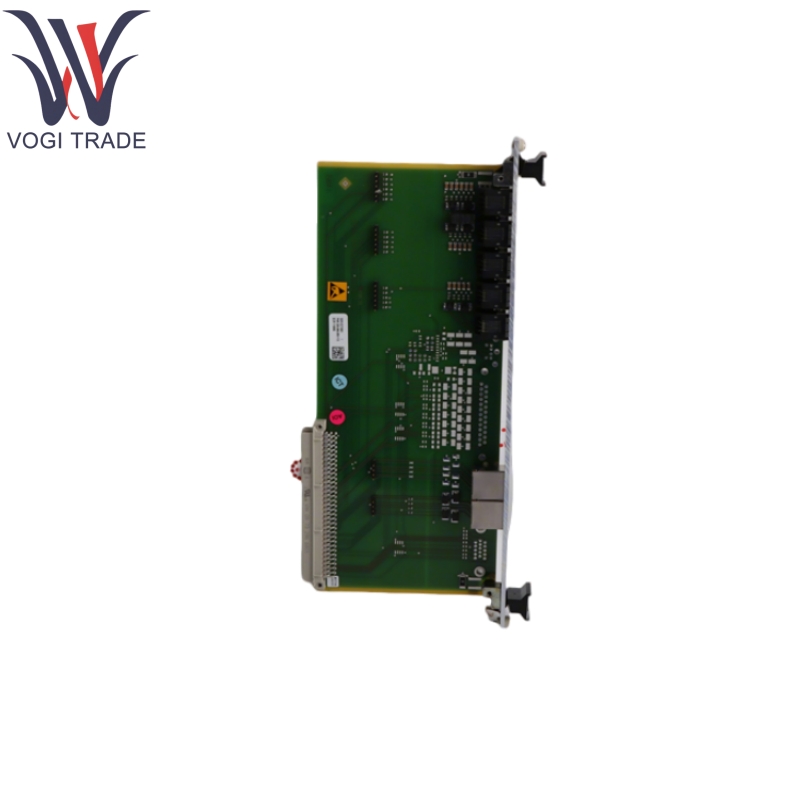

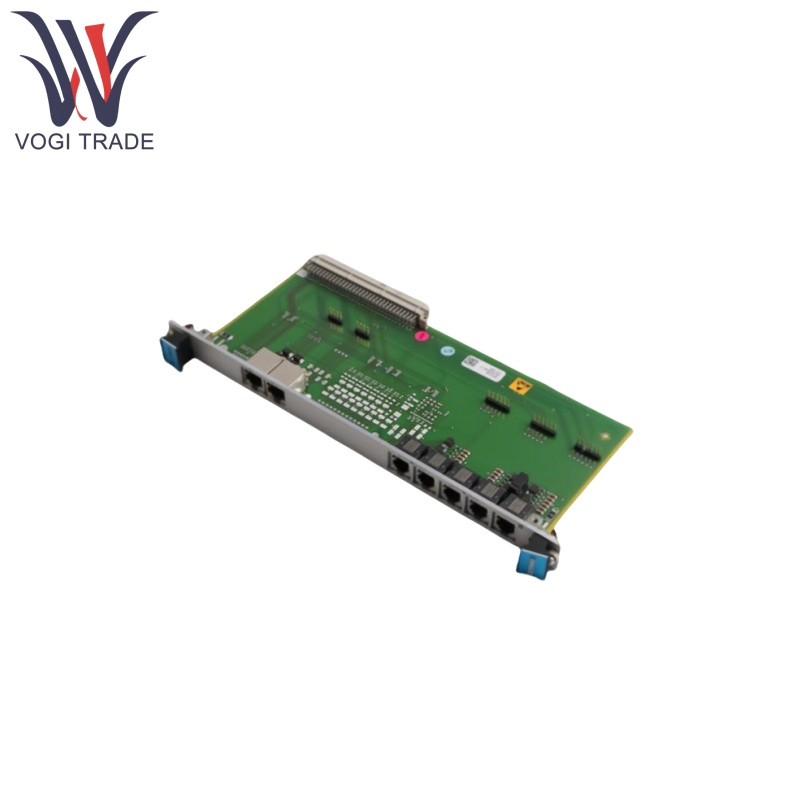

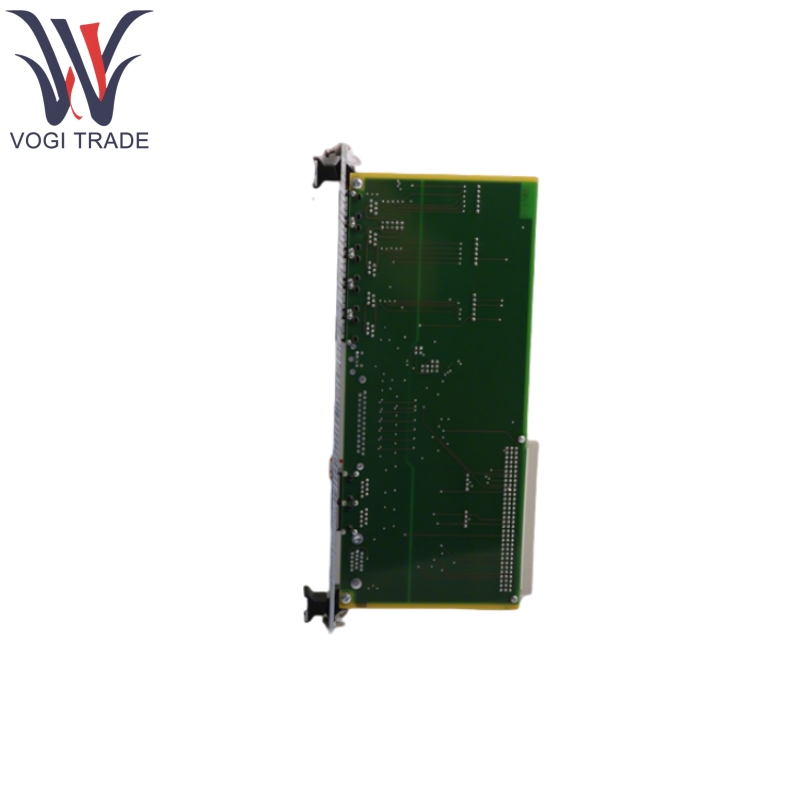

Brand: Vibro-Meter Description: Input/Output Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: Shenzhen IOCN 200-566-000-112 acts as a signal and communications interface for the CPUM card, also protects all inputs against electromagnetic interference (EMI) and signal surges to sure electromagnetic compatibility (EMC) standards.
|
Manufacture |
Vibro-Meter |
|
Model Number |
IOCN |
|
Ordering Number |
200-566-000-112 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
28*4*15cm |
|
Weight |
0.6kg |
Product Specification
Connector Varieties:
RS: 6P6C (RJ12/RJ25), female. Used for the secondary serial connection.
A: Two 6P6C (RJ12/RJ25), female. Used for additional serial connections (requires the optional serial communications module).
B: Two 6P6C (RJ12/RJ25), female. Used for additional serial connections (requires the optional serial communications module).
1: 8P8C (RJ45), female. Can be used for the primary Ethernet connection (instead of the CPUM connector (NET)).
2: 8P8C (RJ45), female. Used for the secondary Ethernet connection.
Communication Interfaces:
Ethernet Port:
IOCN 200-566-000-112 connectors (1 and 2) support 10/100BASE-TX Ethernet (up to 100 Mbps) for Modbus TCP and PROFINET (requires CPUM firmware version≥081) .
Serial Port:
IOCN 200-566-000-112 connector (RS) of one RJ12/RJ25 supports RS-232/RS-485 (half/full-duplex) at up to 115.2 kBaud for Modbus RTU.
Expanded Serial:
IOCN 200-566-000-112 two pairs of serial connectors (A and B) enable RS-422/RS-485 multi-drop networks of VM600 racks (requires optional CPUM serial module).
Version Types:
Standard Ethernet redundant version-200-566-000-1Hh
Varnished version with conformal coating for additional environmental protection-200-566-000-1HhL
Product Parameters
Power Consumption:
Source: VM600 rack power supply
Voltage: 5 VDC
Power consumption: ＜2W
Total power consumption (CPUM/IOCN card pair): ≤12 W
Environmental Conditions:
Operating Temperature: −20 to 65°C (−4 to 149°F)
Storage Temperature: −25 to 80°C (−13 to 176°F)
Humidity: 0 to 90% relative humidity, non-condensing
Product Application
Industrial Communication Gateway:
IOCN 200-566-000-112 acts as an interface between VM600 systems and third-party systems (e.g., DCS, PLC) via Modbus or PROFINET for data sharing.
Multi-Rack Network Expansion:
IOCN 200-566-000-112 builds RS-485 multi-drop networks via connectors A and B for extended monitoring points.
Machinery Protection and Condition Monitoring:
IOCN 200-566-000-112 collaborates with CPUM to manage protection cards (e.g., MPC4, AMC8), supporting hot-swapping, alarm reset, and event logging.
