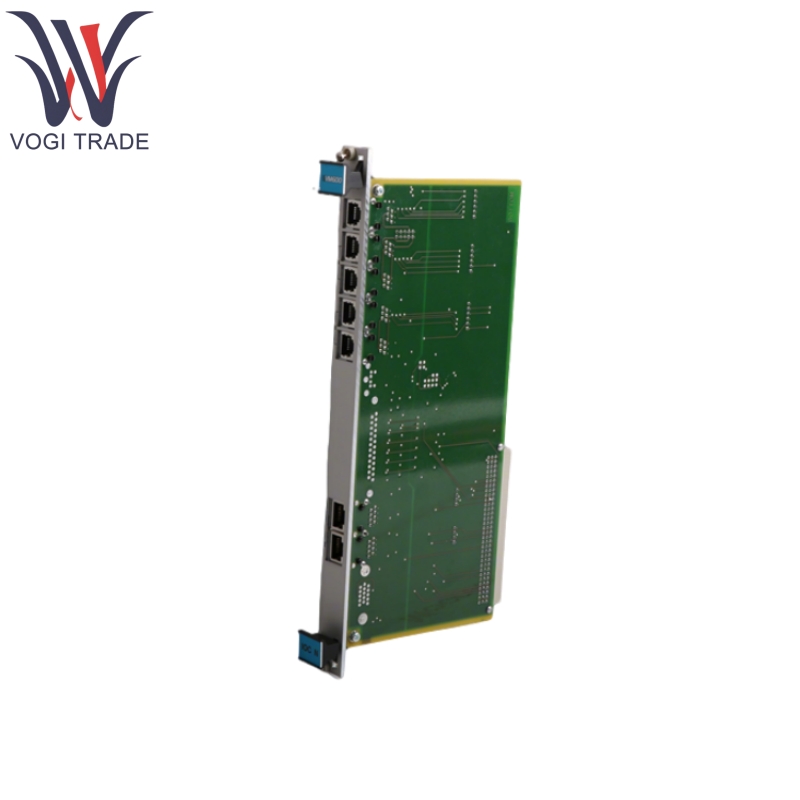

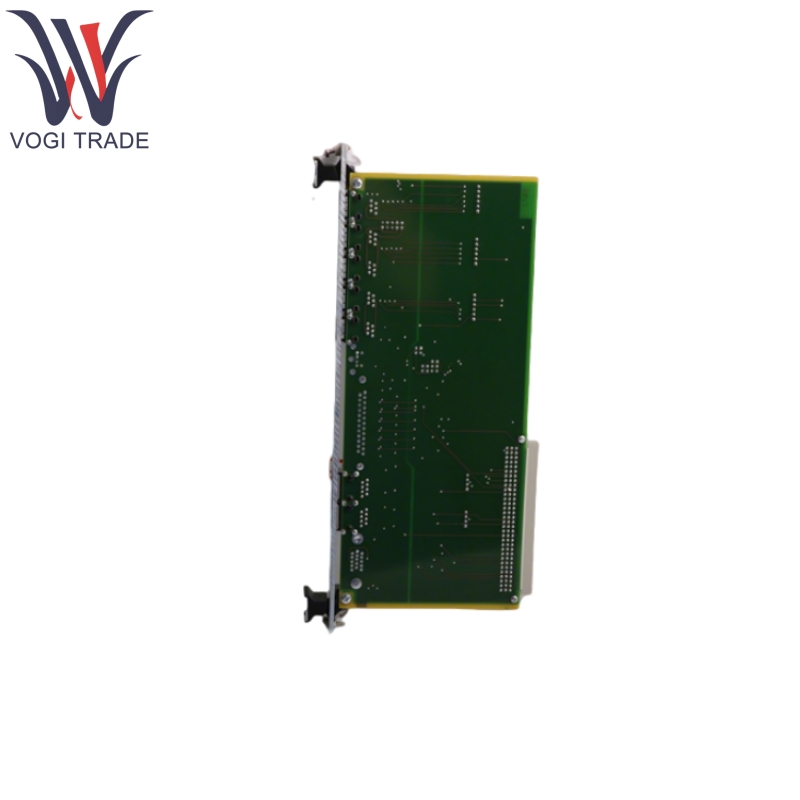

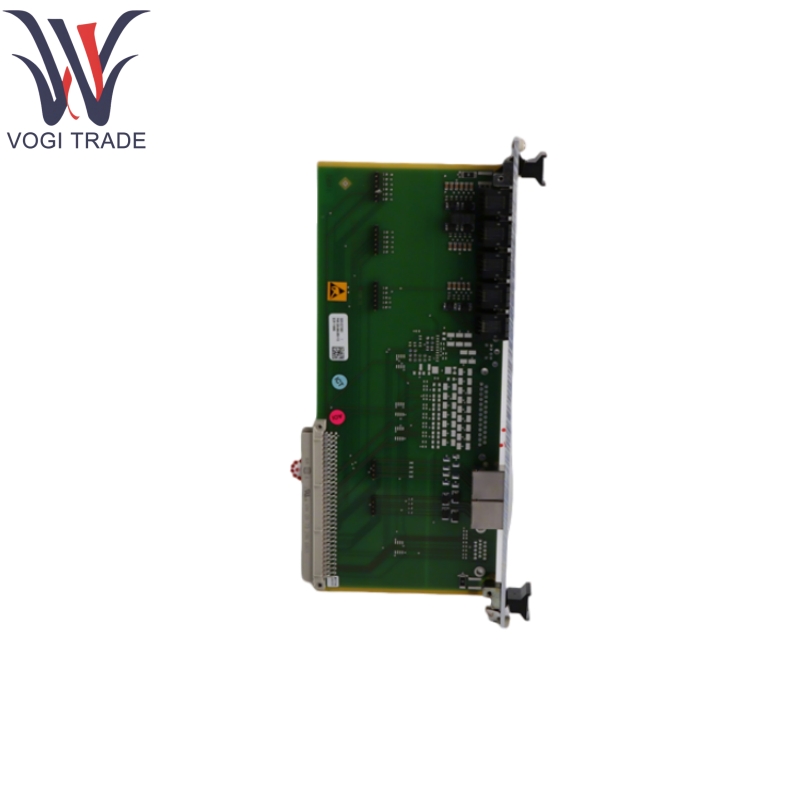

Brand: Vibro-Meter Description: Input/Output Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: Shenzhen IOCN 200-566-000-113 serves as a communication and signaling interface for the CPUM card, while also safeguarding all inputs from electromagnetic interference (EMI) and signal surges to ensure compliance with electromagnetic compatibility (EMC) standards.
|
Manufacture |
Vibro-Meter |
|
Model Number |
IOCN |
|
Ordering Number |
200-566-000-113 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
28*4*15cm |
|
Weight |
0.6kg |
Product Specification
Connector Varieties:
RS: 6P6C (RJ12/RJ25), female. Used for the secondary serial connection.
A: Two 6P6C (RJ12/RJ25), female. Used for additional serial connections (requires the optional serial communications module).
B: Two 6P6C (RJ12/RJ25), female. Used for additional serial connections (requires the optional serial communications module).
1: 8P8C (RJ45), female. Used for the primary Ethernet connection (instead of the CPUM connector (NET)).
2: 8P8C (RJ45), female. Used for the secondary Ethernet connection.
Communication Interfaces:
Ethernet: IOCN 200-566-000-113, 2 x 10/100BASE-TX (10/100 Mbps, ≤100 m)
Serial: IOCN 200-566-000-113, 1 x RS-232/485 (≤115.2 kBaud, Modbus RTU)
Additional: IOCN 200-566-000-113, 2 x RS-422/485 (with optional module, multi-drop RS-485 networks)
Version Types:
Standard Ethernet redundant version-200-566-000-1Hh
Varnished version with conformal coating for additional environmental protection-200-566-000-1HhL
Product Parameters
Power Consumption:
Voltage source: 5 VDC from VM600 rack power supply
Power consumption: ＜2W
Total consumption (CPUM/IOCN card pair): ≤12 W
Environmental Requirement:
Operating Temperature: −20 to 65°C (−4 to 149°F)
Storage Temperature: −25 to 80°C (−13 to 176°F)
Humidity: 0 to 90% (non-condensing)
Product Function
Data Gateway:
IOCN 200-566-000-113 serves as a bridge between VM600 systems and external systems (such as DCS/PLC) using Modbus or PROFINET for data exchange.
Multi-Rack Network Expansion:
IOCN 200-566-000-113 facilitates the creation of RS-485 multi-drop networks through connectors A and B, allowing for additional monitoring points.
Machinery Protection and Condition Monitoring:
IOCN 200-566-000-113 works in conjunction with CPUM to oversee protection cards (like MPC4 and AMC8), enabling features such as hot-swapping, alarm resetting, and event logging.
