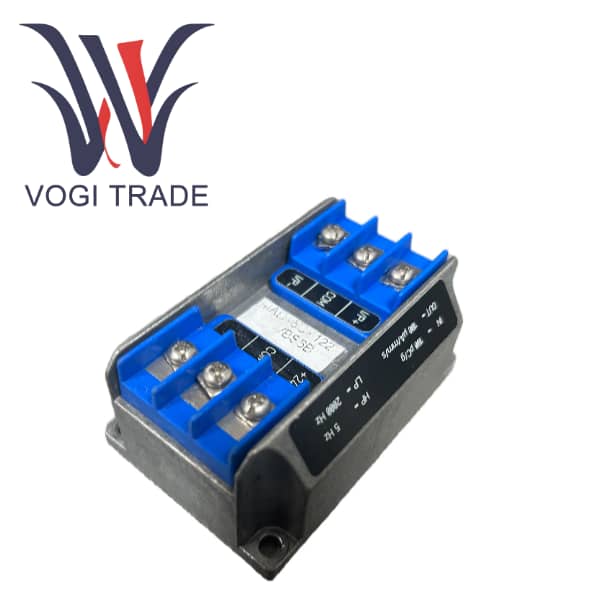

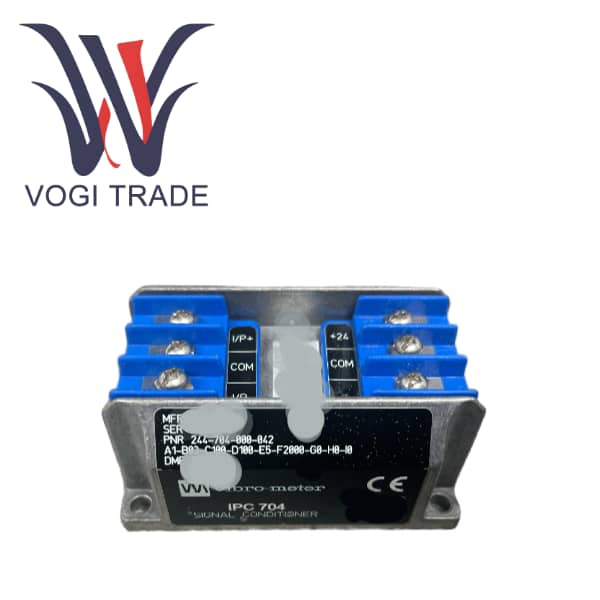

IPC704 244-704-000-042 A1-B03-C100-D100-E5-F2000-G0-H0-I0

Product Overview

The IPC704  244-704-000-042 A1-B03-C100-D100-E5-F2000-G0-H0-I0 is a highly versatile and powerful signal regulator from Megite's vibration meter product line. Signal conditioner is specially designed to interface with piezoelectric accelerometers and dynamic pressure sensors, converting their high-impedance charge output into standardized low-impedance signals, which are suitable for long-distance transmission to monitoring and control systems.

This special configuration is an optimized vibration velocity measurement using a standard piezoelectric accelerometer.  244-704-000-042 A1-B03-C100-D100-E5-F2000-G0-H0-I0 is a standard, non-hazardous area version, provided as an independent module without a housing, offering maximum flexibility for integration into existing panels or custom housings.

Specifications & Parameters

Product type                           IPC704 standard piezoelectric material signal regulator

Complete order number           244-704-000-042-A1-B03-C100-D100-E5-F2000-G0-H0-I0

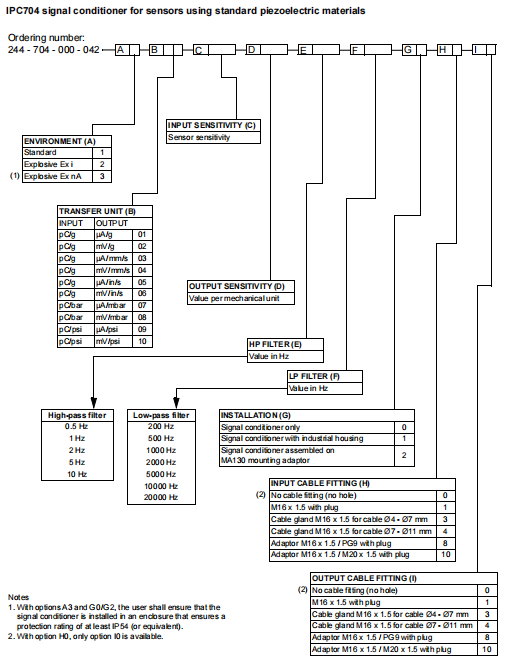

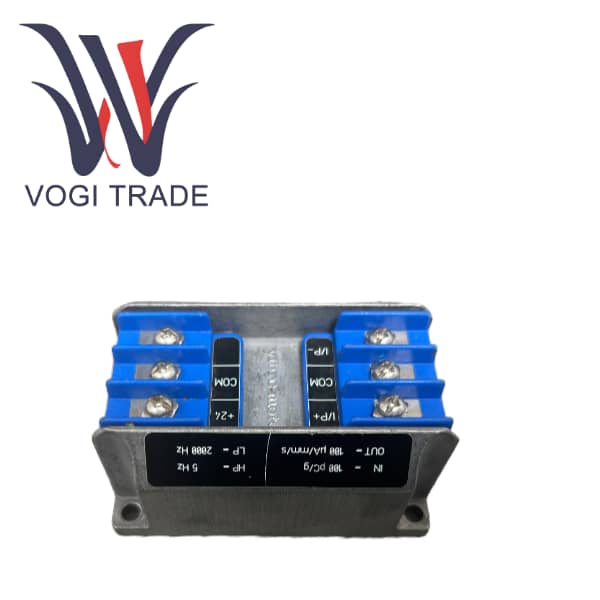

Order code details and key parameters

A1                      Environment - Standard (for safe areas without danger).

B03                    Transmission unit - Input unit is pC/g (Picombic acceleration per gram); The output unit is µA/mm/s (microamperes per millimeter/second of speed). This indicates the integrated speed output.

C100                  Input sensitivity - The sensitivity of the connected sensor is 100pc /g.

D100                 Output Sensitivity - The regulator is calibrated, with an output of 100µA/mm/s.

E5                      High-pass Filter (HP) - The cut-off frequency is set to 5hz (~ 3db, 24 dB/ octave slope), filtering out low-frequency noise and drift.

F2000                 Low-pass Filter (LP) - The cut-off frequency is set at 2000hz (~ 1db, 12db/octave slope) to prevent aliasing and filter out high-frequency noise.

G0                     Installation - Only signal regulator, without industrial housing or DIN rail adapter.

H0 & I0              Cable Connector - Cable connectors are not provided at the input or output ends. There are flush holes on this machine.

General Electric specifications

Power supply mode            18-30vdc.

Current consumption          Maximum 25 milliamperes.

Output signal

Type                                2-wire current transmission.

Dynamic signal                 A ±5 milliampere peak is superimposed on a constant current.

Rated current                  12 milliampere ±0.5 milliampere.

Frequency range              Defined by the filter; Under this configuration, the effective frequency ranges from 5hz to 2000hz.

Linear error                     ≤0.2%

Temperature stability        Typical at 100 ppm/°C

Environmental specifications (Module only, G0)

Operating temperature            -30℃ to +85℃

Protection grade                    IP40 (Must be installed in any protective enclosure other than a clean indoor electrical cabinet).

Anti-vibration                         Peak 2g (10-500hz)

Impact resistance                  Peak 15g (11ms)
