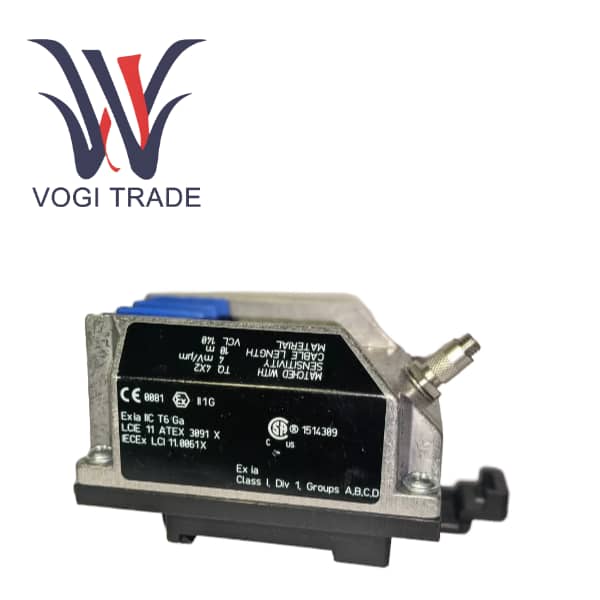

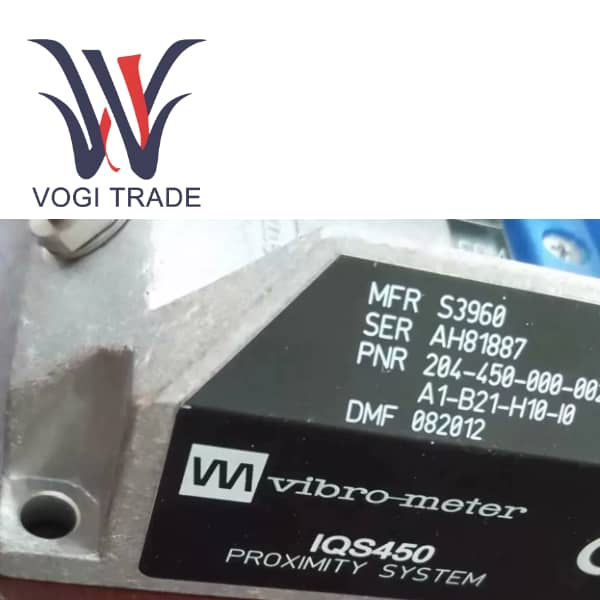

Brand: Vibro-Meter Description:Signal Conditioner Condition: New Warranty: 1 year Inventory Qty: 1 Payment term: T/T Shipping Port: Xiamen IQS450 204-450-000-002 A1-B21-H10-I0 is an industrial vibration monitoring module produced by Vibro-Meter, mainly used for vibration protection and monitoring of rotating machinery.
|
Manufacture |
Vibro-Meter |
|
Model Number |
IQS450 |
|

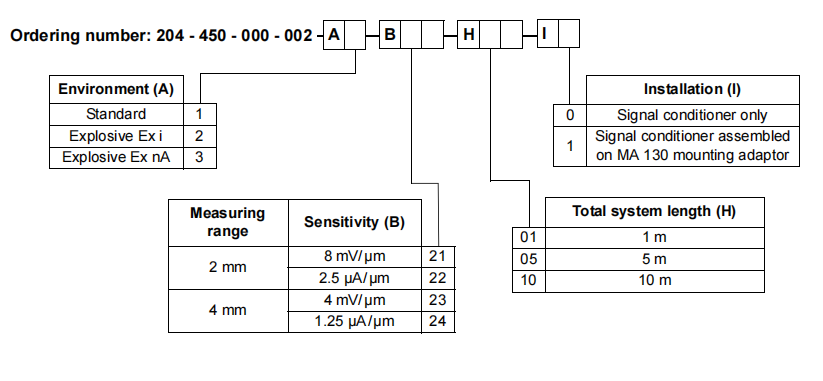

Ordering Number |
204-450-000-002 A1-B21-H10-I0 |
|
Catalog |
Probes & Sensors |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8537109090 |
|
Dimension |
26.2cm*12.5cm*2cm |
|
Packing Dimension |
28.2cm*14.5cm*4cm |
|
Weight |
0.3kg |
Product functional features
High-precision signal conversion can linearly convert the minute gap changes detected by proximity sensors into high-precision and high-stability voltage signals.
The wideband response and temperature compensation design enable it to precisely capture vibration signals ranging from slow shaft displacement to high frequencies through a wideband response of DC to 20 kHz. The system is equipped with a temperature compensation function to ensure the accuracy of measurement within a wide temperature range.
As part of the TQ400 measurement system, the sensors, extension cables and signal conditioners are fully interchangeable, eliminating the need for separate calibration and greatly simplifying spare parts inventory and maintenance.
The sturdy industrial design of the metal casing provides excellent electromagnetic shielding and mechanical protection, making it suitable for use in industrial environments.
Supports flexible installation method with direct screw installation, and the MA130 installation adapter (order option I1) can be purchased to fit the standard TH 35 DIN rail.
The output terminal is equipped with short-circuit protection function, which enhances the reliability of the system.
Fully certified, versions certified by Ex i (intrinsically safe type) and Ex nA (non-spark type) are provided and can be used in hazardous areas.
Comparison of similar products
|
Characteristics |
IQS450(This model, TQ400 system |
IQS900(New Generation System |
Remarks |
|
The system to which |
TQ400 series |
TQ900 series |
Product platforms belonging to different generations |
|
Diagnostic function |
none |
Optional built-in diagnostic system (BIST) is available, which can remotely indicate sensors and cables Or the regulator malfunctions |
The IQS450 does not have advanced diagnostic capabilities |
|
Functional safety |
SIL certification was not mentioned |
Support SIL 2 (IEC 61508) and Cat 1 PL c (ISO 13849) |
The IQS900 is more suitable for security-related applications |
|
Output impedance |
500 Ω (voltage output) |
<100 Ω (Voltage output) |
The low impedance of the IQS900 enables it to drive longer distances or be compatible with more isolators, resulting in less signal loss |
|
Probe compatibility |
Optimized specifically for the TQ4xx sensor |
Designed specifically for the TQ9xx sensor, it can directly replace most of the IQS45x |
The components of the two systems are incompatible |
|
Protection grade |
IP40 |
IP20 |
Both usually need to be installed in an additional housing |
|
Thermal deration |
The maximum voltage is limited at high temperatures |
The data does not emphasize that it might be better designed |
|
