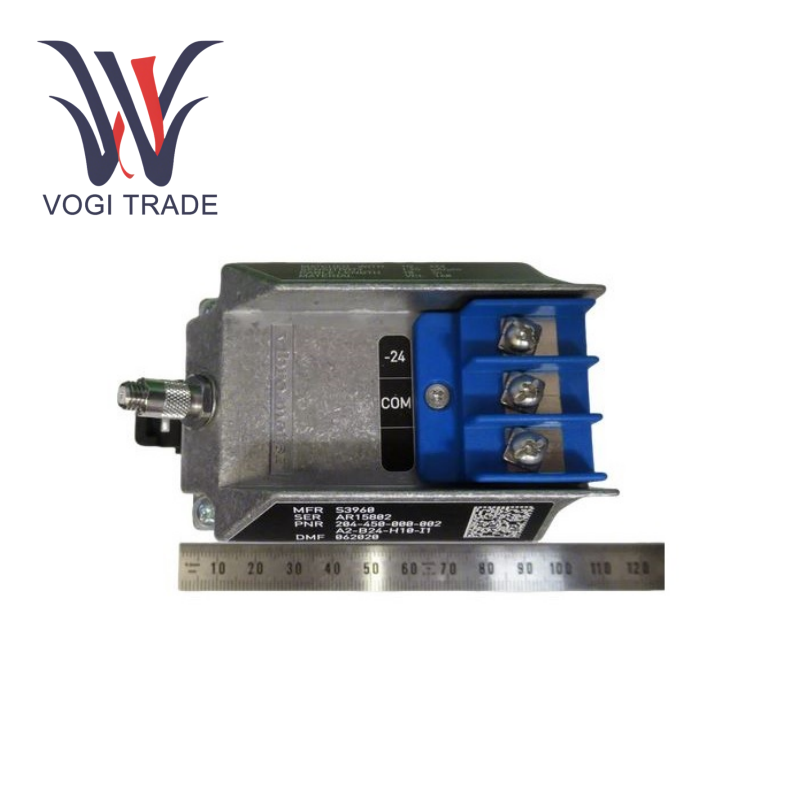

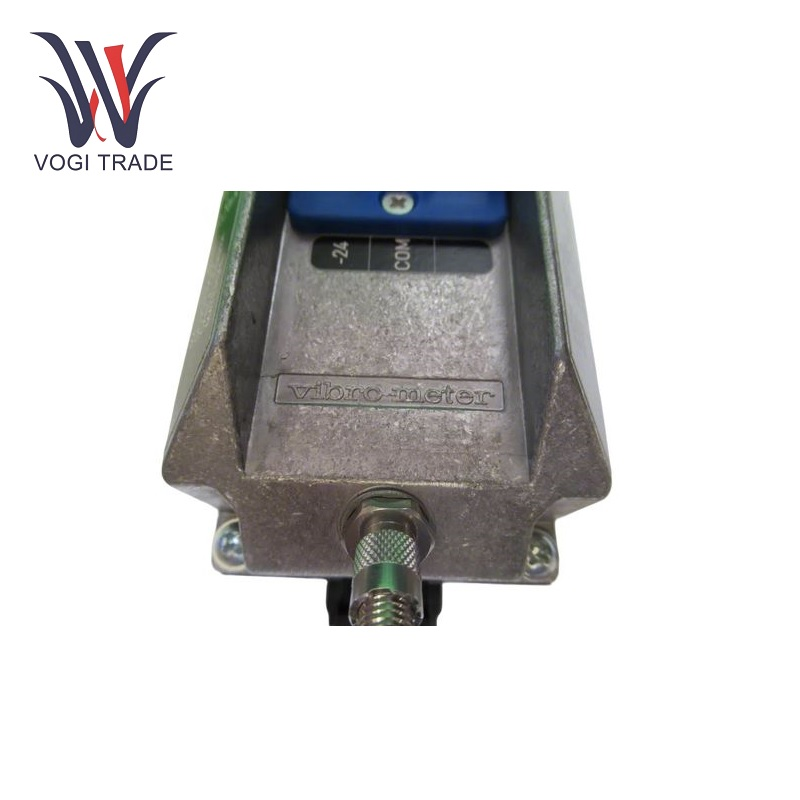

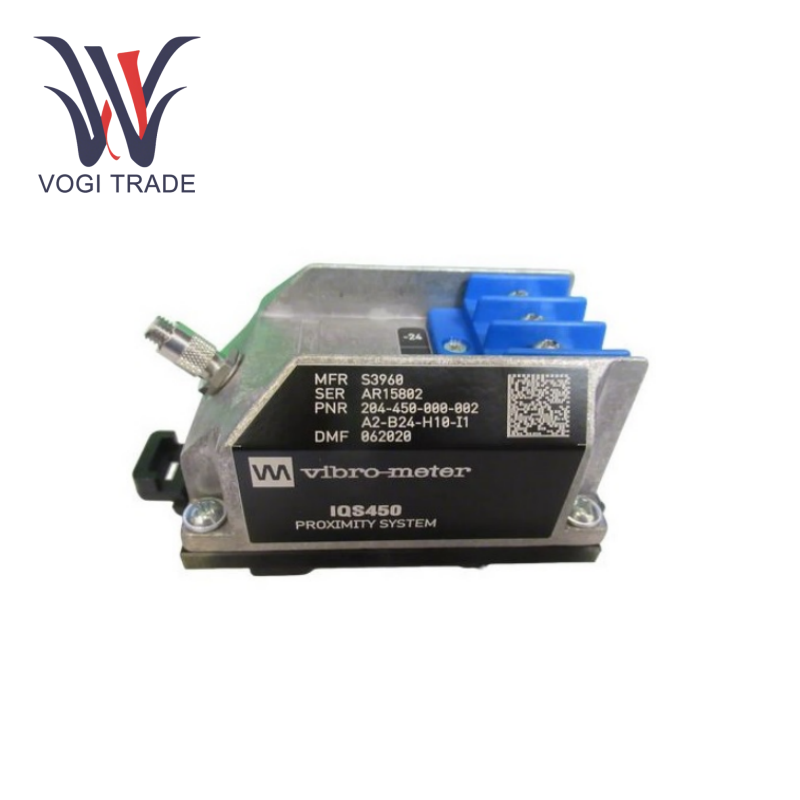

Brand: Vibro-Meter Description:Signal Conditioner Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 8 Payment Term: T/T Shipping Port: ShenZhen IQS450 204-450-000-002-A2-B21-H05-I0 is a signal conditioner that can convert the shaft vibration/displacement signal collected by the TQ401 sensor into a high-precision current output.
|
Manufacture |
Vibro-Meter |
|
Model Number |
IQS450 |
|
Ordering Number |
204-450-000-002-A2-B21-H05-I0 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9031809090 |
|
Dimension |
95×70×40mm |
|
Packing Dimension |
10×25cm |
|
Weight |
2 kg |
Core parameters
Output configuration: 2-wire current output (-15.5 mA to -20.5 mA), corresponding to 0.2–2.2 mm linear range
Response frequency: DC to 20 kHz (-3 dB), meeting the needs of high-speed vibration monitoring
Explosion-proof certification: Ex ia IIC T6 (in compliance with IECEx, ATEX, cCSAus and other national standards)
Environmental adaptability: Working temperature -35°C to +85°C (voltage derating required), protection level IP40
System combination: Standard 5-meter total cable (TQ401 main cable + EA401 extension cable)
Features and advantages
The explosion-proof design of Meggitt Vibro-Meter IQS450 204-450-000-002-A2-B21-H05-I0 ensures its safe operation in Zone 0/1 hazardous areas. The current output has strong anti-interference and can be directly connected to monitoring systems such as VM600.
Compact aluminum housing and modular cable solutions (supporting custom length combinations) increase industrial deployment flexibility.
The temperature compensation and interchangeable design (all components are replaceable) of the Vibro-Meter 204-450-000-002-A2-B21-H05-I0 can significantly reduce maintenance costs, making the IQS450 204-450-000-002-A2-B21-H05-I0 the core of a high-reliability mechanical protection solution.
