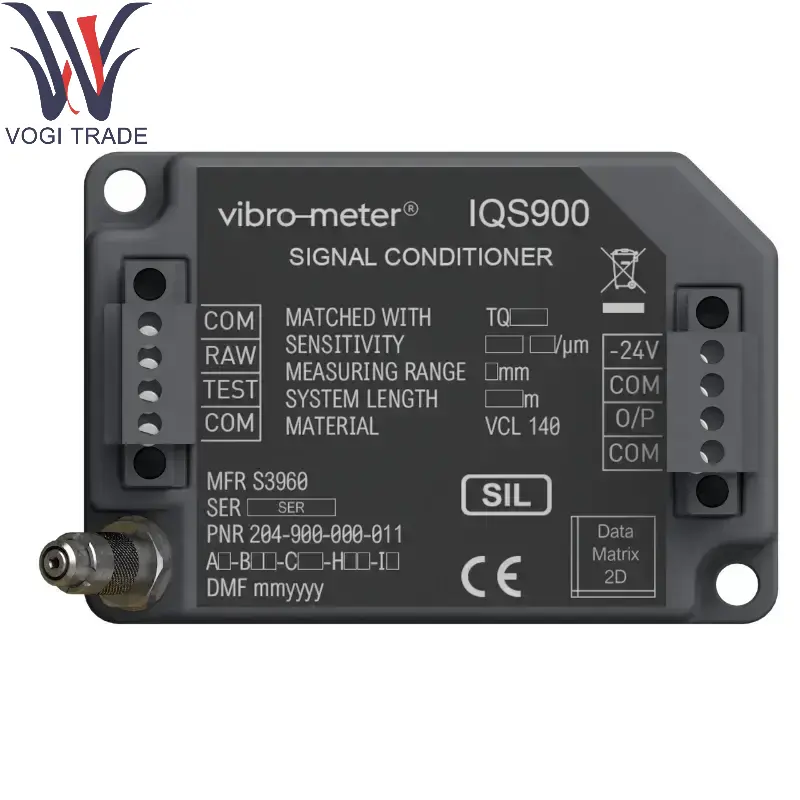

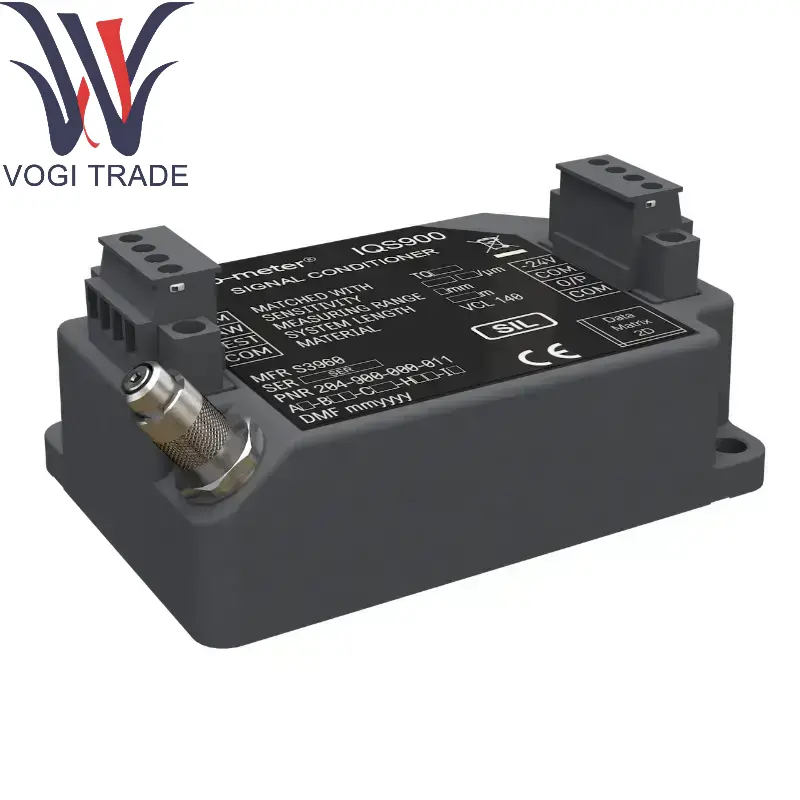

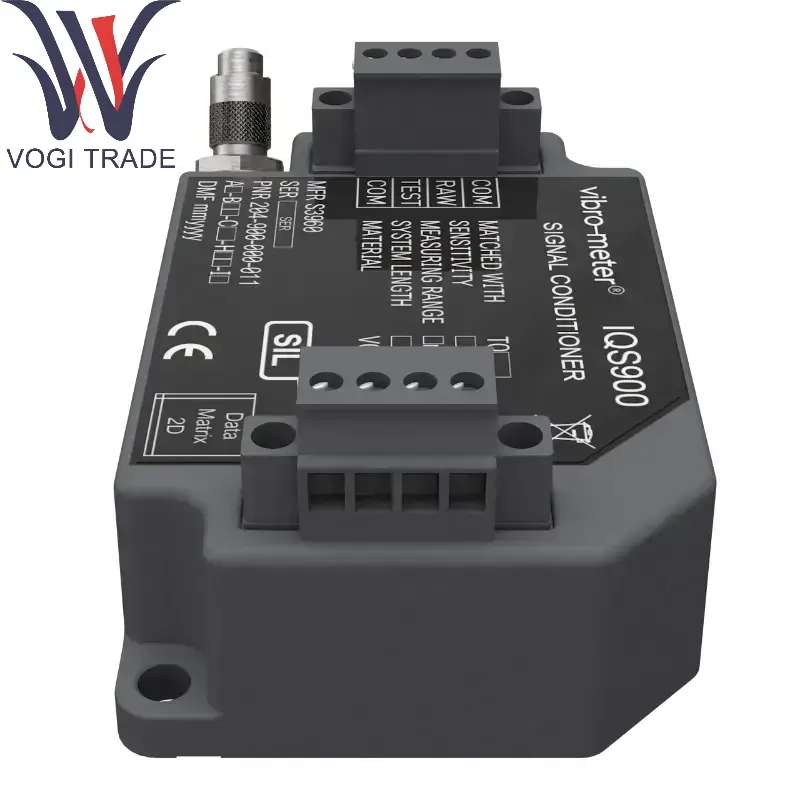

IQS900 204-900-000-011-A1-B23-C1-H05-I1

Operating Parameters

Frequency Range: The system allows a wide and highly detailed frequency range from DC to 20 kHz. This range of just a few decades guarantees a dynamic analysis of any vibration characteristics of any machinery or instrument.

Output Signal: The valve system also has two different outputs to meet the distance requirements of signal transmission. The current output range for long-distance transmission is -15.5 to -20.5, and the voltage output range for medium-distance transmission is -1.6 V to -17.6 V. This allows individual design according to specific installation and transmission distance requirements and interface with different monitoring systems.

Operating Temperature: The operating temperature range is -40 to 18 °C. Under these conditions, the Vibration IQS900 will operate reliably and cover a wide range of environmentally relevant temperature ranges from absolute cold to relatively hot during operation, unaffected by the ambient temperature.

Protection Rating: With IP68 protection rating, 204-900-000-011-A1-B23-C1-H05-I1

has good dust and water intrusion resistance. This is a strong protection rating; therefore, it is suitable for both interior and exterior locations, especially in dirty or wet conditions, protecting internal components and ensuring their long service life.

Measuring Range: For the 08.2 mm sensor, the available configuration measuring range options are 2 and 4 mm. This provides flexibility in the actual monitoring application, allowing accurate and reasonable vibration measurements based on the machinery being monitored.

Product Features

Signal Conditioning:Vibro-Meter IQS900 204-900-000-011-A1-B23-C1-H05-I1 is used for signal conditioning of TQ proximity sensors. It takes the raw signals from the TQ proximity sensors and amplifies these records through various enhancements while filtering out unwanted noise in the processed output for further monitoring and intelligence. This includes features such as amplification, filtering, and modulation, which improve the output and make it suitable for further analysis and control.

Vibration and Position Measurement: Vibro-Meter IQS900 204-900-000-011-A1-B23-C1-H05-I1 can evaluate the relative vibration and clearance/position of the shaft as a strategy for machinery protection and advanced condition monitoring functions. These parameters provide very useful input into the general condition of the machinery and predict its future health.

Configurable Sensitivity and Measurement Range: The Vibration IQS900 has a highly regarded configurability feature. Users can choose to vary the sensitivity and measurement range depending on the specific characteristics of the machinery involved and the monitoring system requirements. It ensures that the device is optimized for different applications to provide accurate and relevant measurements.

Diagnostics and Health Monitoring: The product integrates optional diagnostic circuitry that is able to automatically and remotely indicate the health or status of the measurement chain. Such diagnostics can improve reliability by providing real-time information about sensor performance and the status of the signal conditioning process. Users can identify and resolve problems before they negatively affect the monitored process or equipment. Vibro-Meter IQS900 204-900-000-011-A1-B23-C1-H05-I1 is fully compatible with API 670 Fifth Edition, a widely recognized standard for machinery protection systems in the oil and gas industry. This compatibility guarantees the highest industry standards of performance, reliability and safety for equipment used in critical oil and gas applications and other industries with the same requirements.

Applications

Power Generation: Vibro-Meter IQS900 204-900-000-011-A1-B23-C1-H05-I1 is used to monitor vibration in power plant equipment, such as turbine generators and other rotating machinery. Continuous measurement and analysis of vibration can help avoid disasters, optimize maintenance schedules and improve the overall reliability and efficiency of power generation equipment and engines.

Oil and Gas: It is commonly used to monitor vibration in compressors, pumps and other equipment in oil and gas exploration, production and transportation. Vibration measurements made by the Vibration IQS900 help detect early signs of wear, misalignment, and other mechanical issues, eliminating the risk of costly downtime and ensuring that facilities operate safely and efficiently.

Chemical and Petrochemical:Vibro-Meter IQS900 204-900-000-011-A1-B23-C1-H05-I1 is used in chemical and petrochemical manufacturing plants to monitor vibration in reactors, agitators, and other operating plants. This ensures equipment integrity, minimizes leaks and spills, and ensures consistent quality of production processes.

For more information about IQS900 datasheet, please click on the datasheet below.
