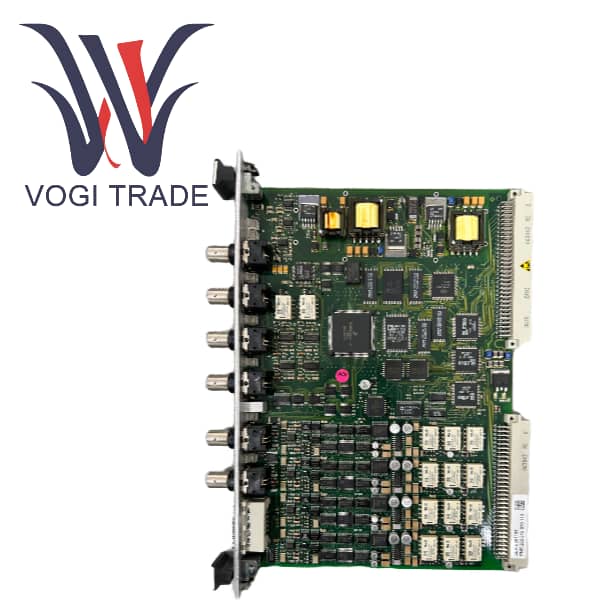

MPC4 200-510-070-113

Product Feature

The MPC4 (Model: 200-510-070-113) is the core processing unit of the VM600 series mechanical protection system in the VM product line. This is a continuously online, powerful mechanical protection card that adopts advanced digital signal processing technology and is used for real-time monitoring and protection of critical rotating equipment.

This model belongs to the early hardware version of the "standard" version (Hardware version 113) and is one of the most classic and widely used single cards in the VM600 system. It needs to be used in conjunction with the IOC4T input/output card to jointly form a complete monitoring channel. MPC4 200-510-070-113 core function is to simultaneously process four dynamic signals (such as vibration and displacement) and two key signals (rotational speed), and through programmable alarm setting values, machinery protection card promptly issues alarm or shutdown signals when the equipment malfunctions, preventing equipment damage.

Product specifications and parameters

Product Type                                         MPC4 Mechanical Protection Card (Standard Version)

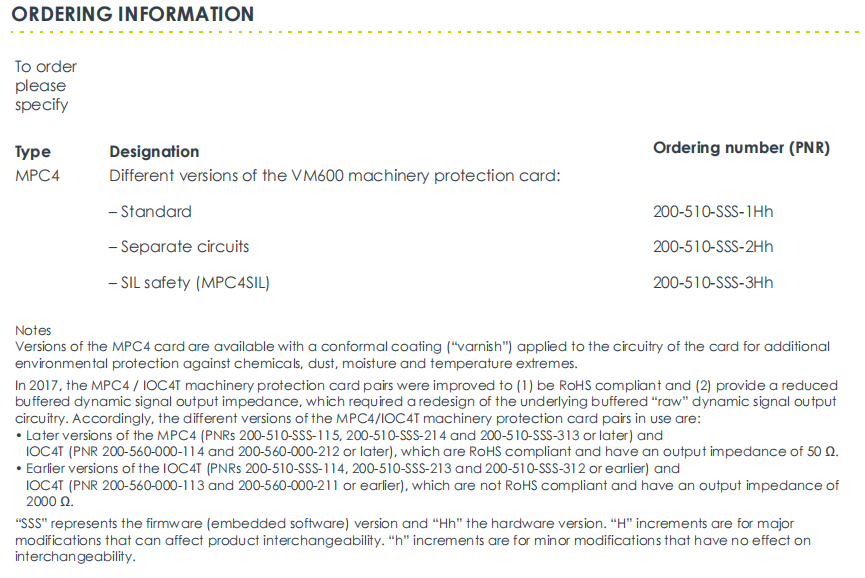

Hardware version                                  113 (Early version, for details, see the following description)

Matching requirements                           must be used in conjunction with the IOC4T input/output card

Dynamic signal input

Number of channels                               4

Input type                                             Voltage (0 to ±20 VDC) or current (0 to ±25 mA)

Input impedance                                    200 kΩ

Frequency range                                    DC to 60 kHz (-3 dB, when sharing Raw bus)

AC frequency range (processing)              0.1Hz to 10kHz

Common-mode rejection ratio (CMRR)      >60 dB @ 50 Hz

Crosstalk                                               -72 dB

Key signal input

Number of channels                                2

Input voltage range                                0.4 to 500 Vpp

Rotational speed range                           0.016Hz to 50kHz (input); 1 to 65,535 RPM (after processing)

Trigger mode                                         Triggered by the threshold of the rising/falling edge of the signal

Buffered output

Dynamic signal "original" output               4 BNC interfaces on the front panel

Output impedance                                  2000 Ω (a feature of the early version, 50Ω in the new version)

Frequency range                                    DC to 40 kHz (-3 dB)

Applicable industry scope

Monitoring of shaft vibration, bearing vibration, eccentricity, key phase and displacement of gas turbines, steam turbines, water turbines and wind turbine generators in power energy.

Comprehensive protection for pipeline compressors of oil and gas, offshore platform turbines, pump units and gas turbines.

Protection systems for large high-speed rotating equipment in industrial manufacturing, such as turbine blowers, centrifugal compressors, and large motors.

Traditional industrial upgrading and maintenance are carried out as spare parts for the existing large number of in-service VM600 systems.

DataSheet DownLoad
