Brand: Vibro-Meter Description: Machinery Protection Card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 4 Payment Term: T/T Shipping Port: Xiamen MPC4 200-510-071-113 is designed for continuous, online monitoring and protection of critical rotating assets in industrial environments.
|
Manufacture |
Vibro-Meter |
|
Model Number |
MPC4 |
|
Ordering Number |
200-510-071-113 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
28*20*4cm |
|
Weight |
0.6kg |
Product Feature

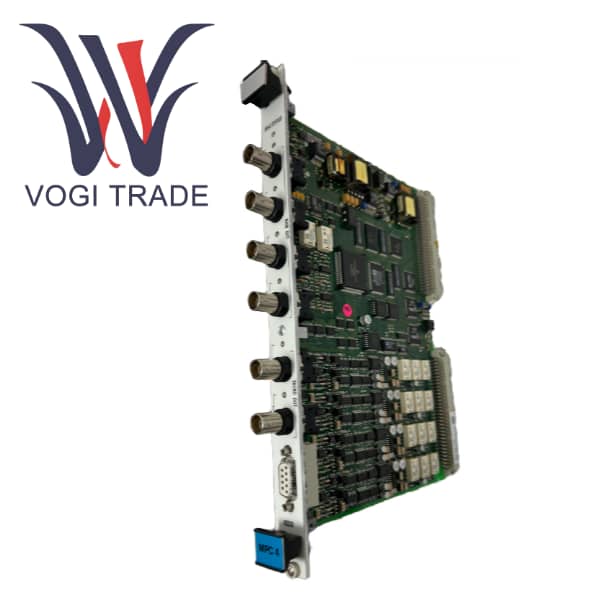

The MPC4 (Model: 200-510-071-113) is a multi-functional and robust mechanical protection card in the Megite vibration meter product line, serving as the central processing unit in the VM600 series mechanical protection system (MPS). This card is specifically designed for the continuous online monitoring and protection of critical rotating assets in industrial environments.
The model decoding is as follows:
200-510: Basic part number of MPC4 card.
071: Firmware/Software version identifier.
1: Indicates the "standard" version.
13: Indicates the hardware version. This is an early version of the card, featuring the specific characteristics outlined in the specifications.
This "standard" version of the MPC4 is a fully functional card capable of simultaneously processing four dynamic vibration/displacement signals and two tachometer signals, making it an ideal choice for comprehensive mechanical protection applications.
Comparison with Similar Products
|
Feature |
MPC4 Standard (This Model - 200-510-071-113) |
MPC4SIL (Safety Version) |
MPC4 "Separate Circuits" Version |
|
Primary Purpose |
General-purpose, full-featured machinery protection |
Functional Safety (SIL) applications |
Enhanced electrical isolation between channels |
|
Tachometer Channels |
Yes (2 channels) |
No |
Yes (2 channels) |
|
Narrowband Tracking |
Yes |
No |
Yes |
|
VME Bus Interface |
Yes (enables Ethernet configuration) |
No (RS-232 only) |
Yes |
|
Safety Certification |
SIL 1 (IEC 61508) |
SIL 1 (IEC 61508) |
SIL 1 (IEC 61508) |
|
Key Differentiator |
Full functionality for most applications |
Isolated design for use in safety instrumented systems |
Input channel isolation for harsh electrical environments |
|
Output Impedance |
2000 Ω |
50 Ω (newer versions) |
50 Ω (newer versions) |
The comprehensive channel capacity integrates 4 dynamic and 2 tachometer channels in a single slot, optimizing rack space.
Advanced DSP processing utilizes powerful digital signal processing for real-time wideband and order tracking analysis, providing precise vibration, displacement and phase measurements.
MPC4 200-510-071-113 The active system diagnosis is equipped with an inbuilt "OK system" that automatically detects sensor and wiring faults, enhancing system reliability and reducing troubleshooting time.
