Brand: Vibro-Meter Description: Relay Card Condition: New Warranty: 1 year Inventory Qty: 8 Payment term: T/T Shipping Port: ShenZhen RLC16 200-570-000-012 is a 16-channel relay module in the Vibro-meter VM600Mk2 mechanical protection system. It supports hot swapping, safety line drive and real-time monitoring functions, and is suitable for industrial scenarios such as vibration and combustion monitoring.
|
Manufacture |
Vibro-Meter |
|
Model Number |
RLC16 |
|
Ordering Number |
200-570-000-012 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
85389091 |
|
Dimension |
26.2*2*12.5CM |
|
Packing Dimension |
28.2*4*14.5CM |
|
Weight |
0.3KG |

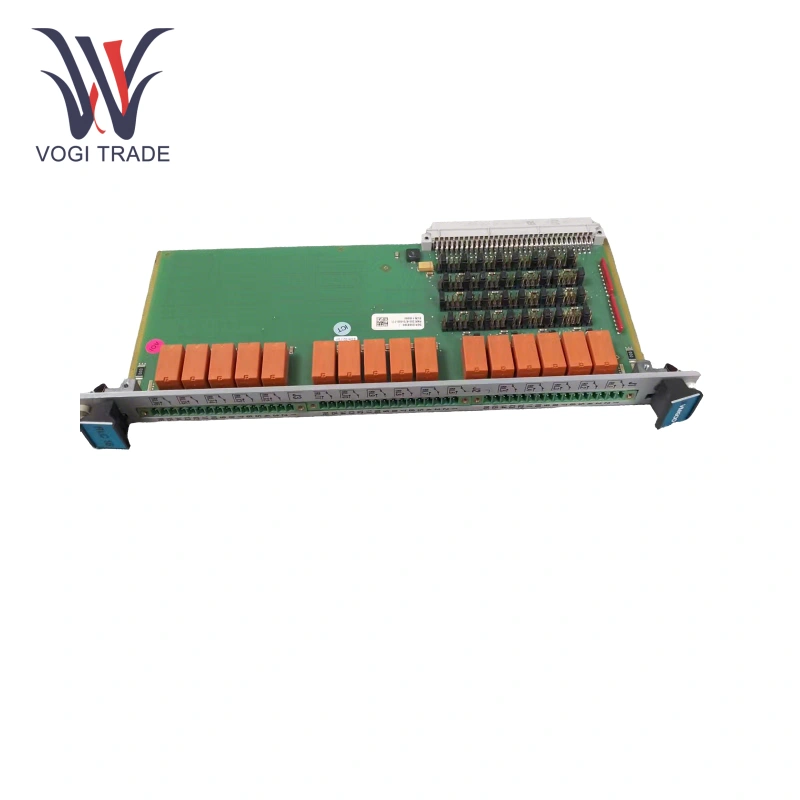

RLC16 200-570-000-012

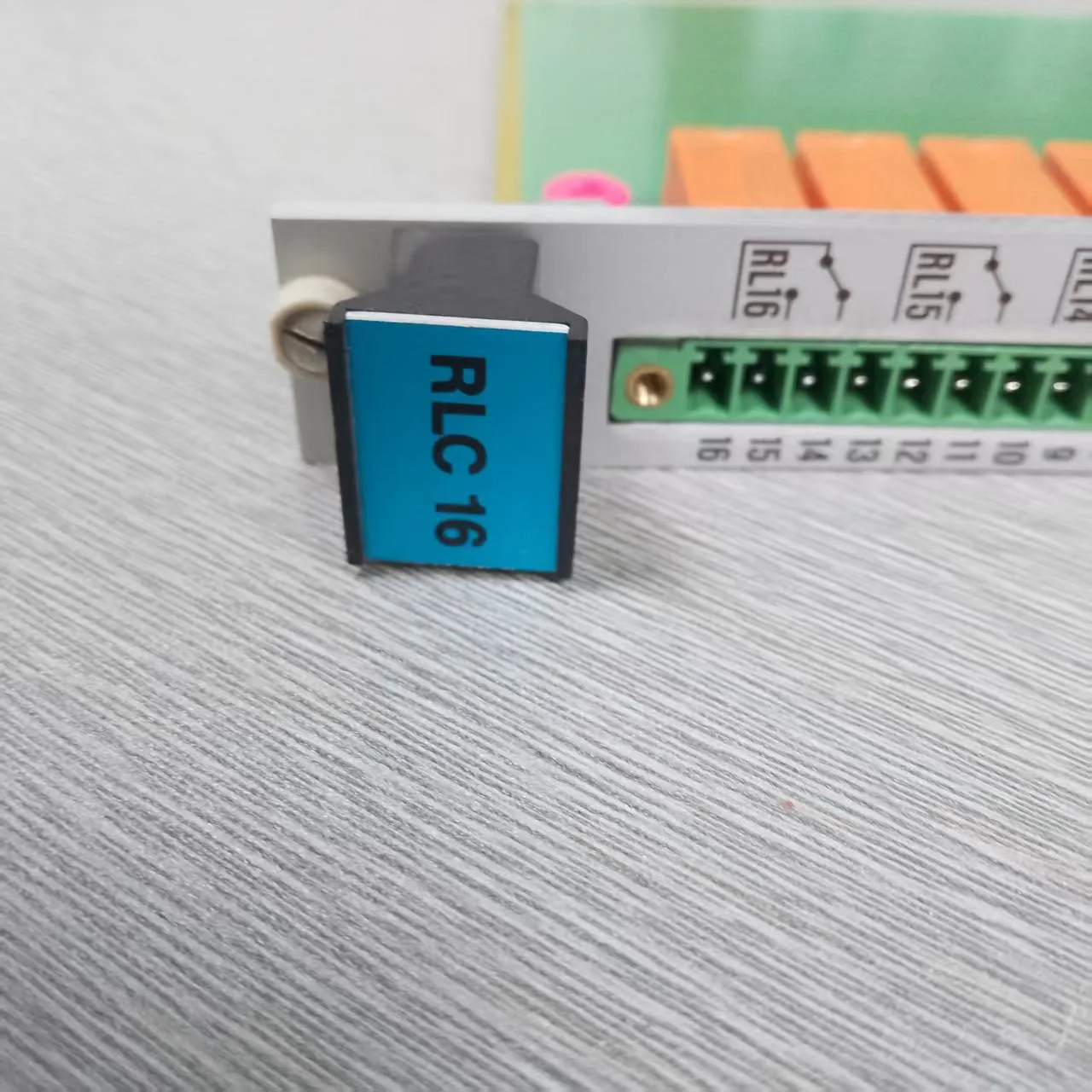

RLC16 relay card
KEY FEATURES AND BENEFITS
• Relay card with screw terminal connectors
• 16 relays with break contacts
• Jumper selectable relay driver on inverter logic
• Low contact resistance
• Low capacitance
• High through power
• Card hot-swapping of card live insertion and removal
• EC approved with EMC according to EC 89/336 and 72/23
The RLC16 relay card is intended for the series of machine protection systems and the condition monitoring systems. It's a pull-in-card, when 4 relays (available at the IOC4T input /output card) are not enough for the applicatio how much does good storage cost and need more relays.
The RLC16 is mounted in the rear of a rack (ABE04x or ABE056) and connects directly to the rack backplane via a single connector.
The RLC16 has 16 relays with CO (change-over) contacts. Every relay is wired to 3 terminals on a screw-terminal connector located at the back of the rack.
The open-collector drivers are under software control, driving the relays. RLC16 Jumper Settings on card provide selection of relay to be N.E. or N.D.E.
