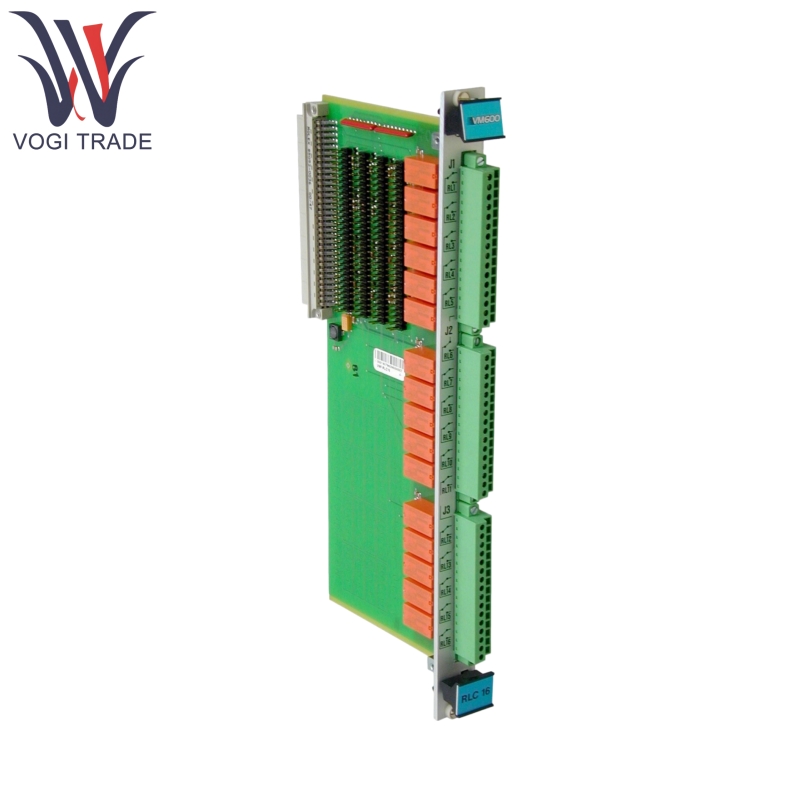

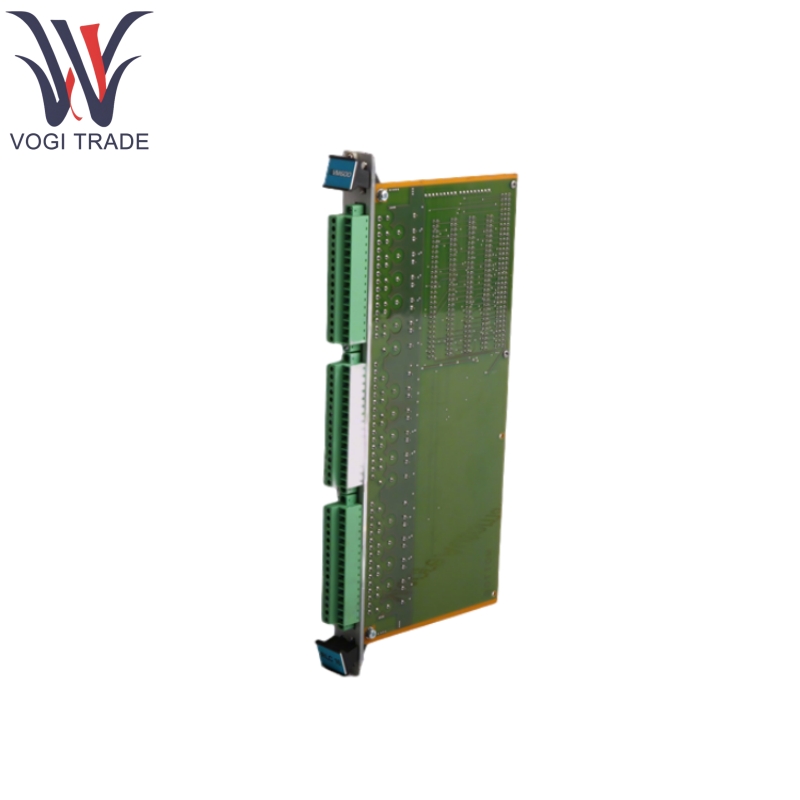

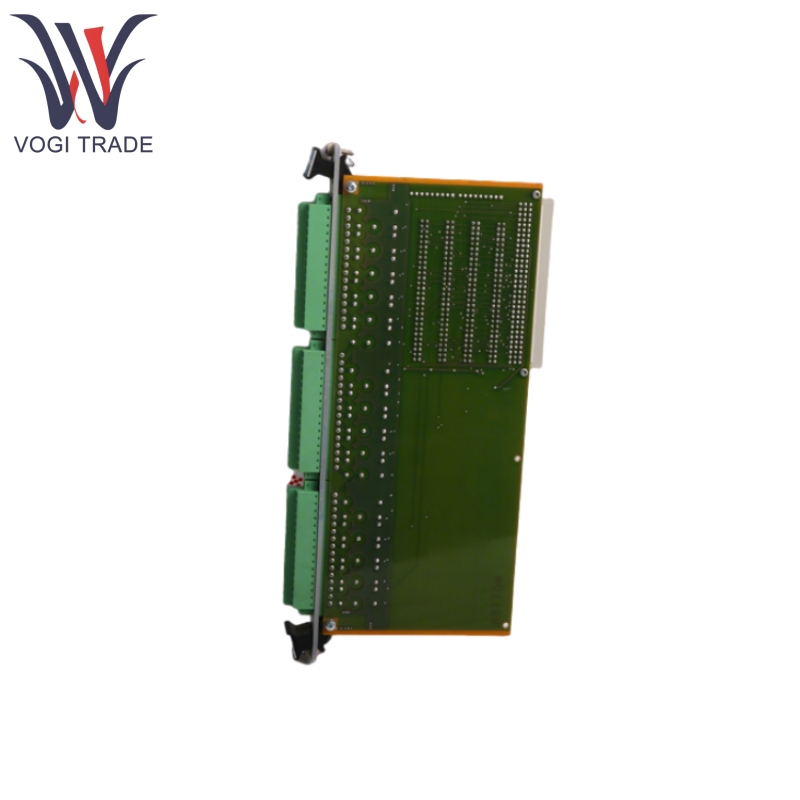

Brand: Vibro-Meter Description: relay card Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: Shenzhen RLC16 200-570-000-111 relay card is designed for use in the VM600 series of machinery protection systems and condition and performance monitoring systems. It is an optional card, for use when the four relays on the IOC4T input/output card are insufficient for the application and additional relays are required.
|
Manufacture |
Vibro-Meter |
|
Model Number |
RLC16 |
|
Ordering Number |
200-570-000-111 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8473309000 |
|
Dimension |
28*4*14cm |
|
Weight |
0.6kg |
Product Specifications
RLC16 200-570-000-111 is installed in the rear of a VM600 rack (ABE04x or ABE056) and connects directly to the rack backplane via a single connector.
RLC16 200-570-000-111 contains 16 relays with change-over contacts. Each relay is associated with 3 terminals on a screw-terminal connector accessible at the rear of the VM600 rack.
RLC16 200-570-000-111 is controlled by open-collector drivers under software control. Jumpers on the RLC16 card allow the selection of relay normally energized (NE) or normally de-energized (NDE).
Product Features
Relay card with screw-terminal connectors
Relay driver inverter logic (jumper selectable)
16 relays with change-over contacts
Low contact resistance
Low capacitance
High through power
Live insertion and removal of cards (hot-swappable)
Conforms to EC standards for EMC
Product Parameters
Characteristics Information:
Presentation-16 relay PCB
Relay state-Normally energized or normally de-energized (jumper selectable)
External connections-Screw-terminal connectors (J1, J2 and J3)
Mounting-Installs in the rear of a VM600 rack and connects to the rack’s backplane via a connector
Connectors types:
J1: 16-contact screw-terminal connector. Outputs (contacts) for relays RL1 to RL6.
J2: 16-contact screw-terminal connector. Outputs (contacts) for relays RL6 to RL11.
J3: 16-contact screw-terminal connector. Outputs (contacts) for relays RL11 to RL16.
Power Supply:
Power source: VM600 rack power supply
Supply voltage: +5 VDC
Consumption: 40 mA × 16 (per relay)
Environment Condition:
Temperature
Operating: −25 to 65°C (−13 to 149°F)
Storage: −40 to 85°C (−40 to 185°F)
Humidity
Operating: 0 to 90% non-condensing
Storage: 0 to 95% non-condensing
