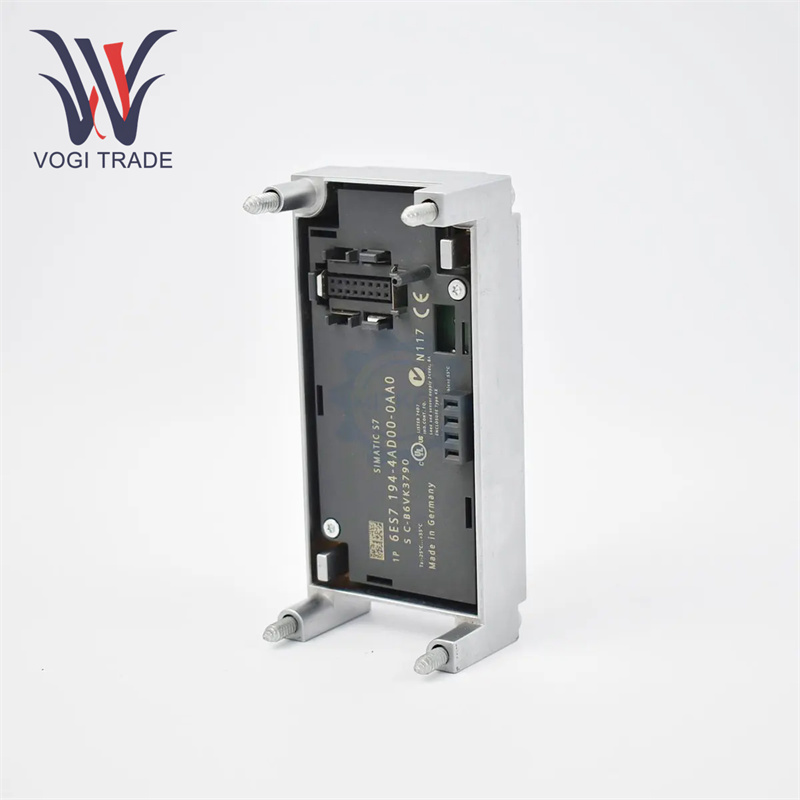

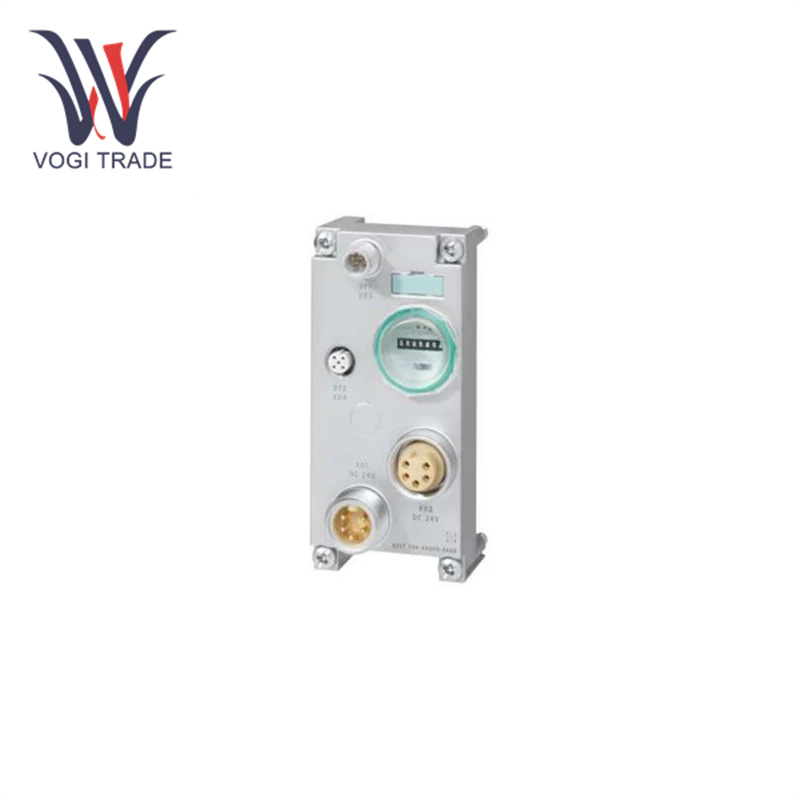

Siemens 6ES7194-4AD00-0AA0

Technical parameters

Working voltage: The module operates at DC voltage: 20.4 - 28.8 V, with a maximum input and output current of 8 A. This voltage range is compatible with a standard 24 V DC power supply. The device is versatile and can be easily used in machines, other equipment, etc.

Dimensions: The dimensions of Siemens 6ES7194-4AD00-0AA0 are 60 mm in width, 130 mm in height, and 60 mm in depth, making it ideal for installation in space-constrained places such as control cabinets or machine panels.

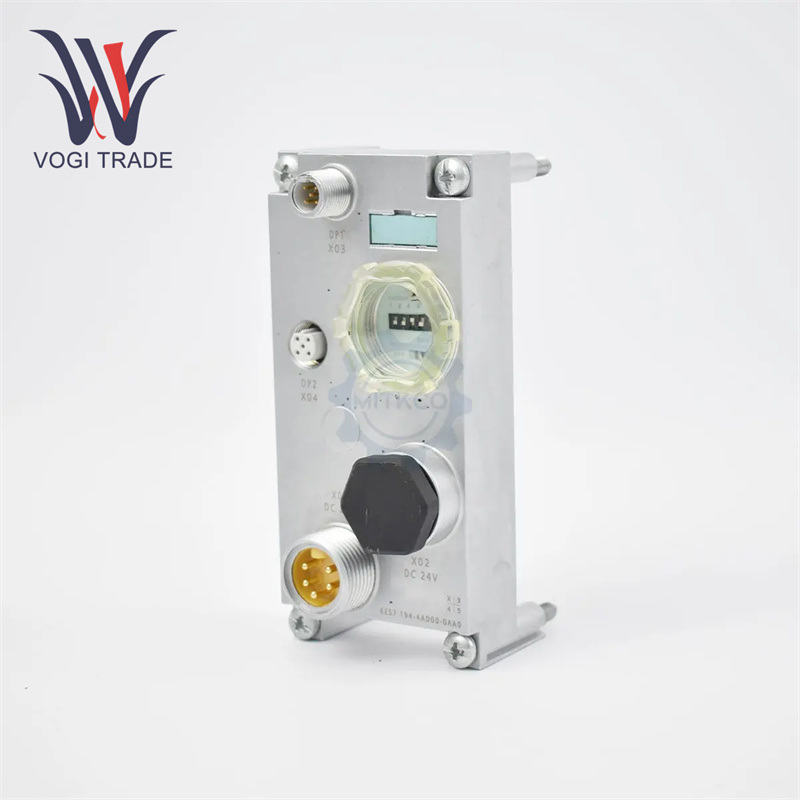

Connector type: 2 M12 and 2 7/8-inch connectors for connecting flexible cables and devices. Ensure that these connectors also maintain reliable signal transmission and safe power supply.

Medical: This allows the connection of additional plug-in modules, thus increasing the scalability and adaptability of the system to specific application requirements.

Features

Profibus DP: The Profibus DP network extends the communication range between devices, and the Siemens 6ES7194-4AD00-0AA0 is an addressable network with an integrated address setter. The only thing that makes it easier to assign a unique address to each device connected to the network, allowing correct communication and identification within the system. Profibus DP reliably reduces signal reflections and interference on the communication network with built-in terminal resistors. Indispensable for reliable and correct data transmission over long distances.

Installation mode: front mounting, rail mounting and wall mounting. For example, the multi-turn is very flexible and can be easily installed in different configurations and positions according to the needs and space availability of industrial applications.

Compatibility: The Siemens 6ES7194-4AD00-0AA0 is fully compatible with the SIMATIC ET 200 pro system, which may also have other parts such as I/O modules, CPUs and other interface modules. Its easy interoperability can bring about holistic and interconnected automation solutions, thus promoting seamless data flow and supervision in industry workflows.

Application Scope

Industrial Automation: It is commonly used to connect Profibus DP networks with ET 200 pro interface modules in industrial automation applications. This can control different field devices such as sensors, actuators, motors, etc., thereby automating production, improving productivity and reducing human errors.

Industry/Factory: Low latency and deterministic aspects can be used to establish trusted communications between production machines and their control systems. For example, in an automobile manufacturing assembly line, it connects robotic arms, conveyor belts and other automatic devices to a central controller to ensure that the production process runs smoothly and consistently.

Process Control: Siemens 6ES7194-4AD00-0AA0 is widely used in process industries such as chemical, pharmaceutical and food processing to connect process control equipment to Profibus DP networks. It can accurately control and monitor factors such as temperature, pressure, flow and liquid level to maintain the quality and safety of the production process.

Logistics and Material Handling: Used in logistics and material handling systems to control and monitor equipment such as automated guided vehicles (AGVs), conveyor belts, and storage and retrieval systems. These facilitate the movement and storage of materials, thereby optimizing the overall functioning of logistics operations.
