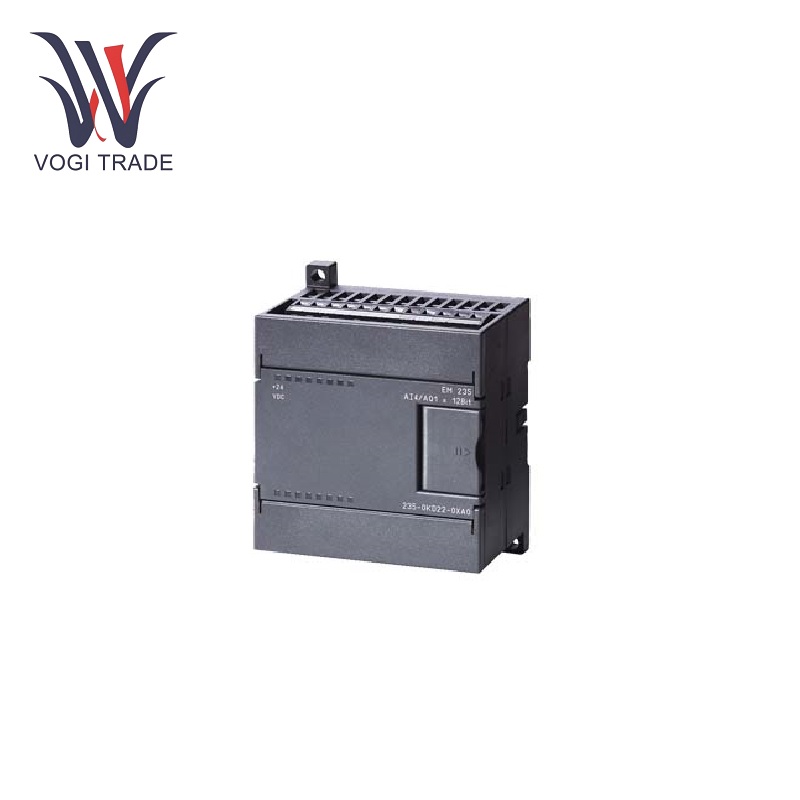

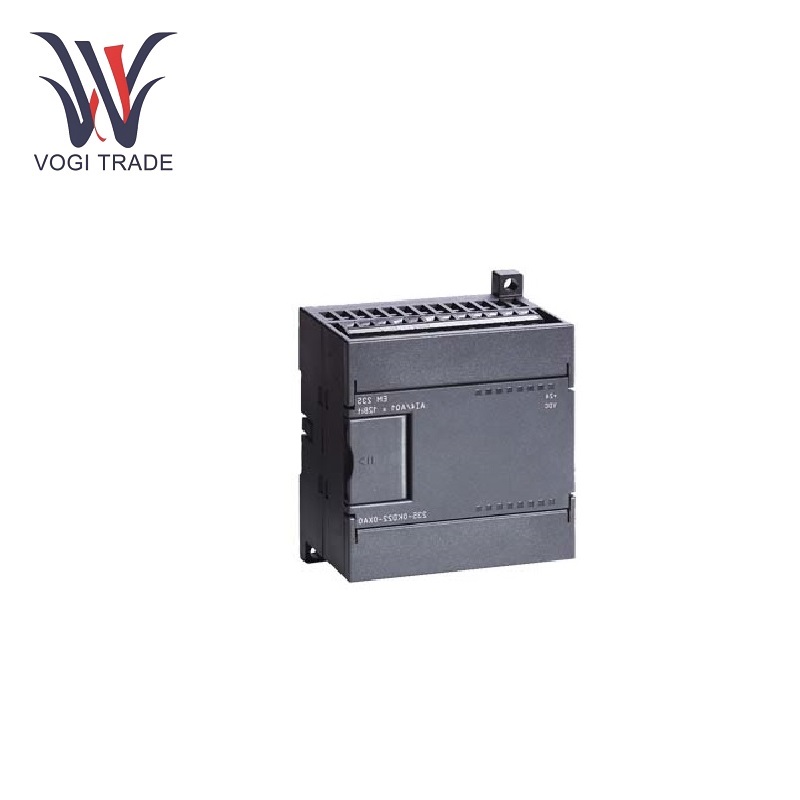

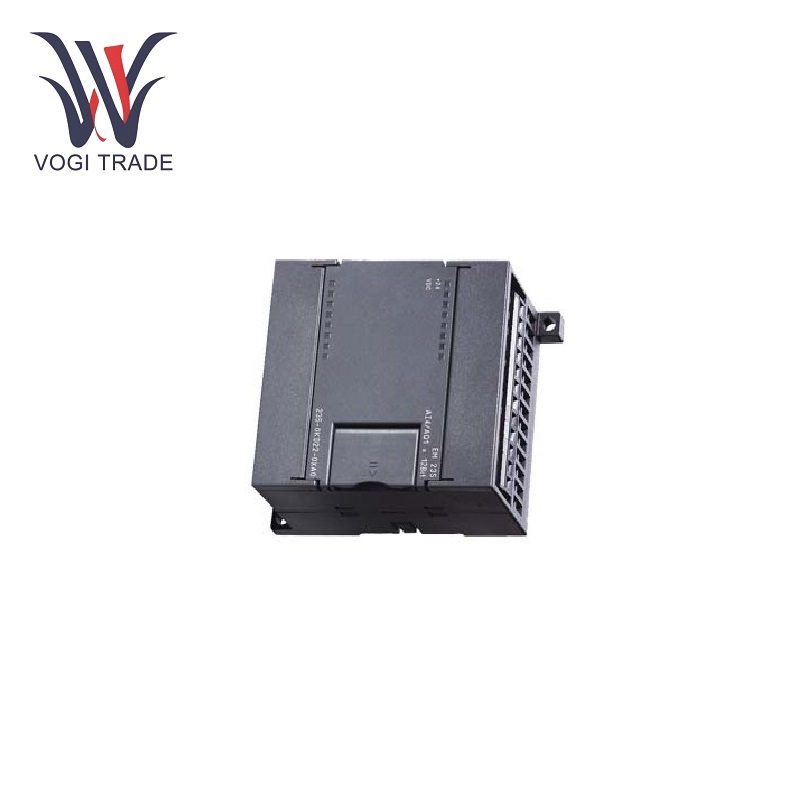

Siemens 6ES7235-0KD22-0XA0

Technical parameters

Weight and size: The weight is about 0.162kg, and the size is: 7.12cmx8cmx6.2 cm; compact lamp, installed on the control cabinet or panel

Power consumption: The power consumption is usually 2W, which is very small and also important for system energy efficiency

Slot Analog input: Siemens 6ES7235-0KD22-0XA04 channel, ±10 V DC input current is 60 mA maximum under external power supply (24 V DC).

Analog output: Voltage signal range from -10 V to +10 V, current signal range between 0 ~20 mA Voltage output setting time is 100 µs Current output setting point-to-point turnaround time (TAT) is at least ≤2ms

Functional features

High-precision conversion: Using a 12-bit converter, the analog signal is converted with high precision to ensure that the data collected and output at both ends are accurate for the control room.

Easy Integration: Just like all other S7-22x series CPUs, the Siemens 6ES7235-0KD22-0XA0 PLC can be connected with the Simatic programmable logic controller system, making it very easy to set up and expand.

Built-in diagnostics: The availability of built-in diagnostics and monitoring functions makes it easier for users to quickly find out if there are any problems, thereby minimizing system downtime and the overall cost required for maintenance.

Wide temperature range: The module supports an operating environment of -20°C to +60°C, which is very suitable for a variety of industrial environments.

Application Scope

Industrial Automation: Siemens 6ES7235-0KD22-0XA0 is widely used in industrial robots and machine tools, and is widely used by factory manufacturers for production line construction in the chemical pharmaceutical and food processing industries. It can connect sensors such as temperature, pressure and flow meters to collect analog signal data and send it back to the central PLC for processing in the control system (i.e., the production process is realized through automatic monitoring and feedback control).

Building Automation: Siemens 6ES7235-0KD22-0XA0 can be used in building automation systems to monitor and control environmental parameters (temperature, humidity, light intensity) to improve building comfort and energy saving.

Power Generation and Transmission: Provides reliable power by monitoring voltage, current, power and other parameters in power plants-substations to ensure safe operation of the power grid system.

Water Treatment: In addition to this, Siemens 6ES7235-0KD22-0XA0 is also used in water treatment plants because it is able to measure and control various parameters such as water level/flow/quality, thus ensuring the smooth operation of the entire system.

Logistics and Warehousing: In logistics, it can be used as part of a monitoring system, such as temperature or humidity in a warehouse, to control good quality and safety.
