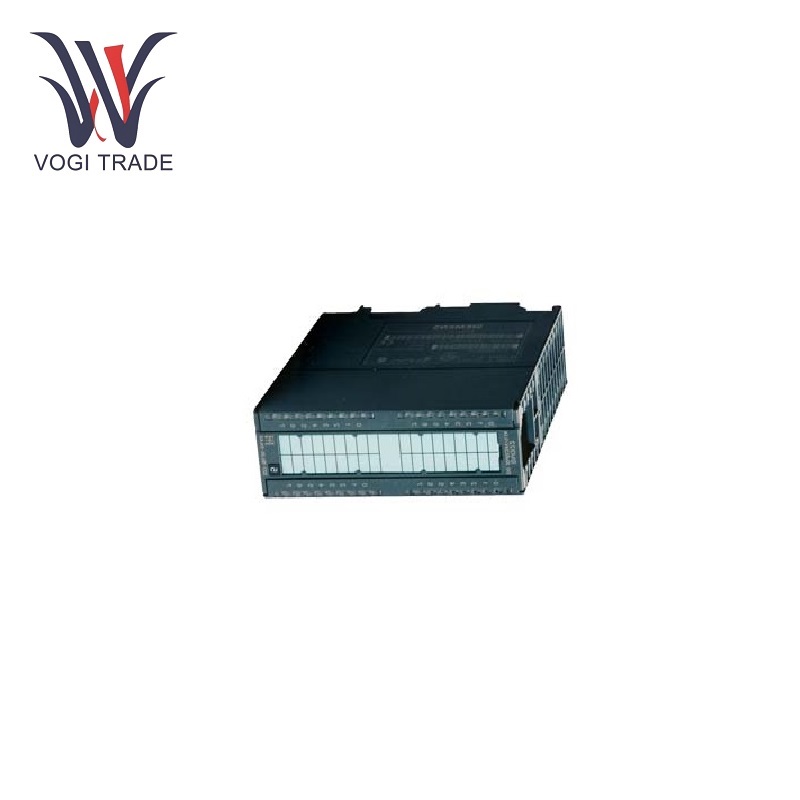

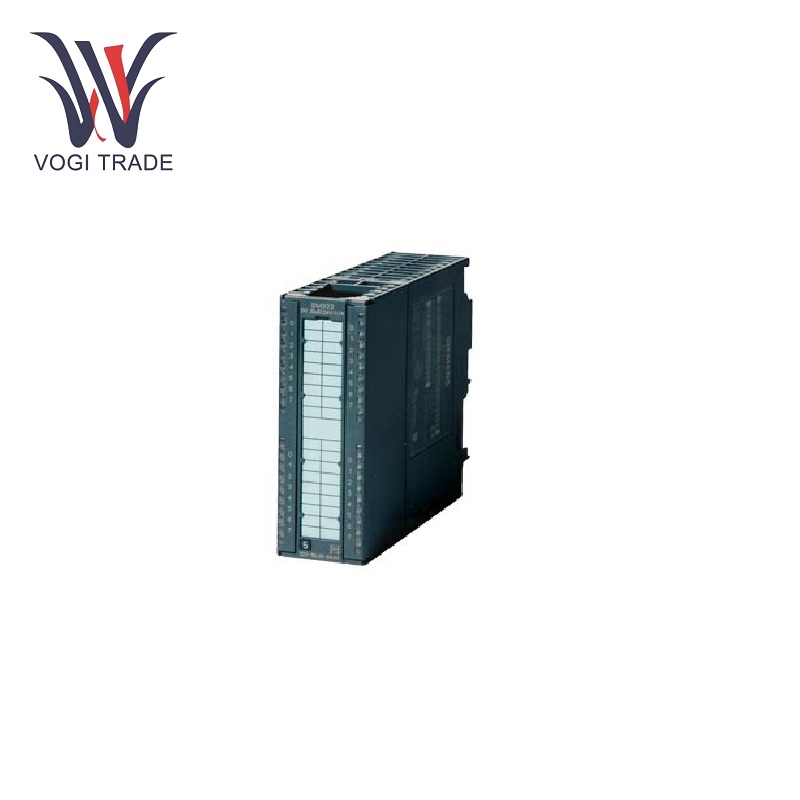

Siemens 6ES7322-1BH01-0AA0

Technical Parameters

Power supply: DC 24 V power supply with RSU power consumption (a fraction of actual usage and functional usage), suitable for changing energy environments in the industrial field, ensuring energy-saving operation when multiple modules are used at the connection.

Reaction time: The response time is very short, usually within a few milliseconds (about a few milliseconds, for example, the turn-on and turn-off times of Siemens 6ES7322-1BH01-0AA0 are 1 millisecond each), which allows extremely precise and fast process control/drive in operations where mobile devices must quickly switch states.

Isolation: Electrically isolate the internal logic circuit from the output channel. Isolation Voltage (max)1 Power to I/O Common Mode Vrms(kvdc)3272-505Circular 5k5000-Via, Interlayer and Primary Battery (-)-Secondary Line Diagram MAX305521-MAXTemperature Sensor Electrical Noise Power Cycle Key Primary Battery Voltage Common Ground Vehicle 12VBulbArrayMaxim Integrated | Automotive and Industrial Solutions Reference Design Electric Drive System with Temperature Sensor Isolation Power Isolation Rated up to xx Volts DC or AC RMS, providing excellent electrical noise immunity while ensuring normal operation in electrically noisy environments.

Features

High Availability: The 6ES7322-1BH01-0AA0 is manufactured with the highest quality components and strict quality control, ensuring reliability for long-term use. One of the breakthroughs that makes it so special is its ability to operate in harsh industrial conditions such as temperature changes (operating temperature range is -25°C to +60°C), humidity and mechanical shock, thus avoiding failures while reducing maintenance.

Output Configuration: In each specific application, the module can have different output behaviors. It can be in different output modes: direct or reverse logic, depending on the input interface with some external device on the line.

Diagnostic function: Equipped with intelligent sensors, it can report problems such as short circuit, open circuit or overload on individual output channels. Maintenance personnel will be able to use this real-time diagnostic information to effectively find and repair faults, thereby reducing system downtime.

Easy to integrate: Siemens 6ES7322–1BH01–0AA0 is a subsystem of the SIMATIC S7-300 series and can be directly integrated with other modules such as CPU, input model and communication module. The MPI port supports fast upload/download of data and serves as a bus connection for S7-300-based controllers for easy installation, setting configuration and tailored comprehensive automation solutions

Application range

Industrial manufacturing: Used in manufacturing plants to manage numerous devices on the production line. For example, when you power up the AirPacking system, Siemens 6ES7322–1BH01–0AA0 controls the conveyor and makes the motor work, while opening or closing the solenoid valve to transfer air to clamp/position your workpiece; turning on/off the indicator light when it is repeatedly displayed at different production stages...thus improving productivity and achieving a smooth operation process.

Process Control: For example, in industries such as chemical, oil and gas manufacturing and processed food production, fast response time for controlling valves/pumps/mixers is crucial. By providing digital signals as per the control logic programmed in the respective PLC program,  Siemens 6ES7322–1BH01–0AA0 helps to accurately maintain temperature, pressure and flow conditions in the process, further supporting the product quality and safety of the process solution that Siemens is responsible for.

Automated Warehousing and Distribution: In automated warehouses equipped with ASRS advanced sorters and conveyor systems, it helps to control the movement of such stackers and sorting equipment. These machines can be programmed to move here or there, pick up items and place them at that location through digital output signals, helping to improve productivity and properly track checkout.

Building Automation: Siemens 6ES7322-1BH01-0AA0 Canberra can also be applied to building management systems that control lighting systems utilities, rope working environments such as but not limited to HVAC components. Lights in different areas of a building can be turned on or off based on occupancy sensors or schedules.
