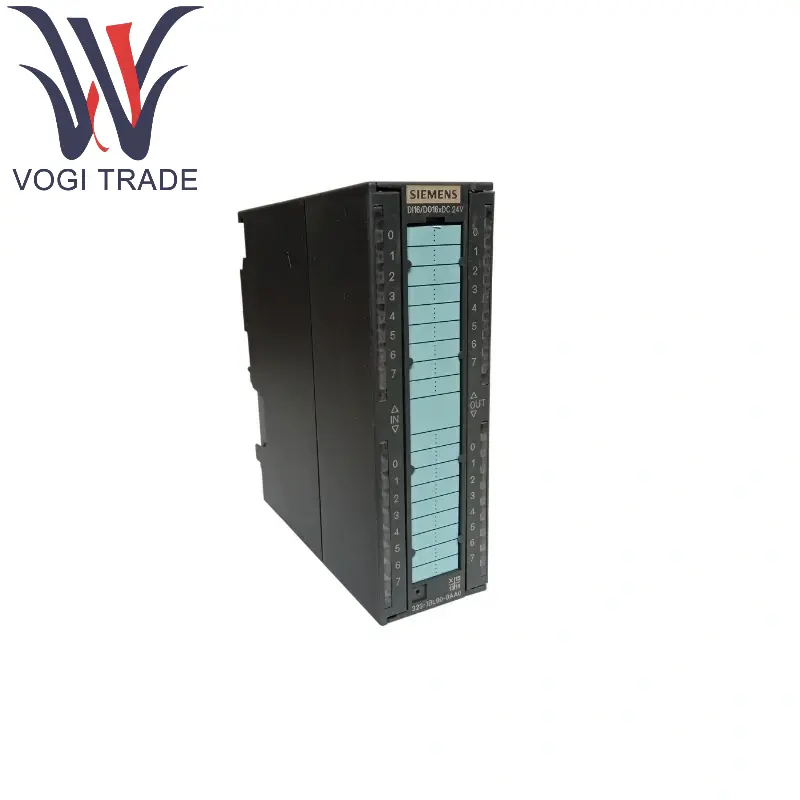

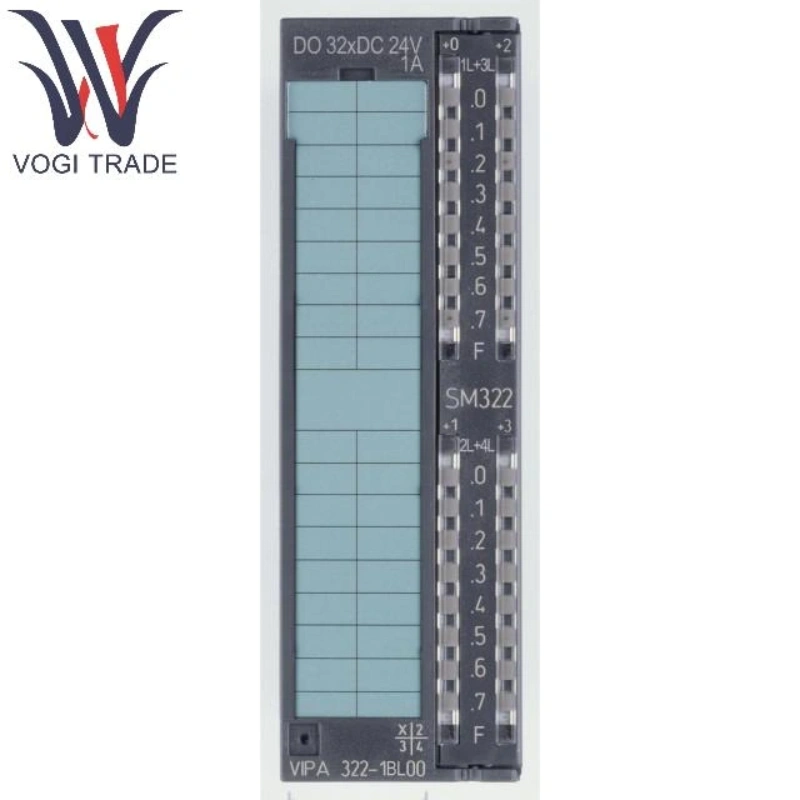

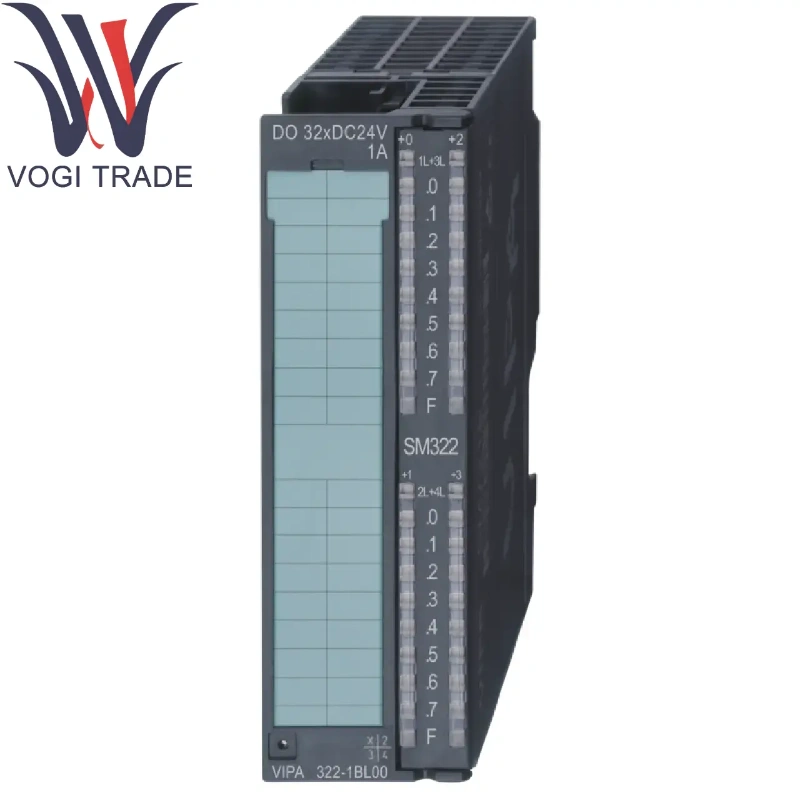

Siemens 6ES7322-1BL00-0AA0

Electrical characteristics:

Rated load voltage: 24V DC

Output current: 0.5A per channel, maximum total current 4A .

Short circuit protection: Supported, the module automatically limits the current and alarms.

Isolation method: Optocoupler isolation

Channel configuration:

16 digital outputs, divided into 2 groups (8 channels per group), each group can be independently configured with voltage.

Output type: MOSFET transistor, supports high switching frequency

Diagnostic function:

Siemens 6ES7322-1BL00-0AA0 supports short circuit, disconnection, and overload diagnosis .

Connection method:

Connection through the front connector (20-pin screw type or spring type), which needs to be ordered separately

Compatibility:

Siemens 6ES7322-1BL00-0AA0 applicable to SIMATIC S7-300 series PLC, and needs to be installed in the S7-300 rack (such as rail installation).

Working environment:

Temperature range: 0°C to 60°C

Protection level: IP20

Application areas

Industrial automation control:

Control 24V DC devices such as solenoid valves, relays, indicator lights, small contactors, etc.

Production line equipment:

Siemens 6ES7322-1BL00-0AA0 used in packaging machinery, conveyor belts, assembly lines and other occasions that require high-speed switching.

Process control:

Discrete signal output control in industries such as chemical and food processing.

Building automation:

Low-power load management such as lighting control and ventilation systems.

Advantages and characteristics

High reliability: Siemens industrial-grade design, strong anti-interference ability.

Flexible configuration: supports group power supply to adapt to different load requirements.

Convenient diagnosis: integrated fault detection function to reduce downtime.
