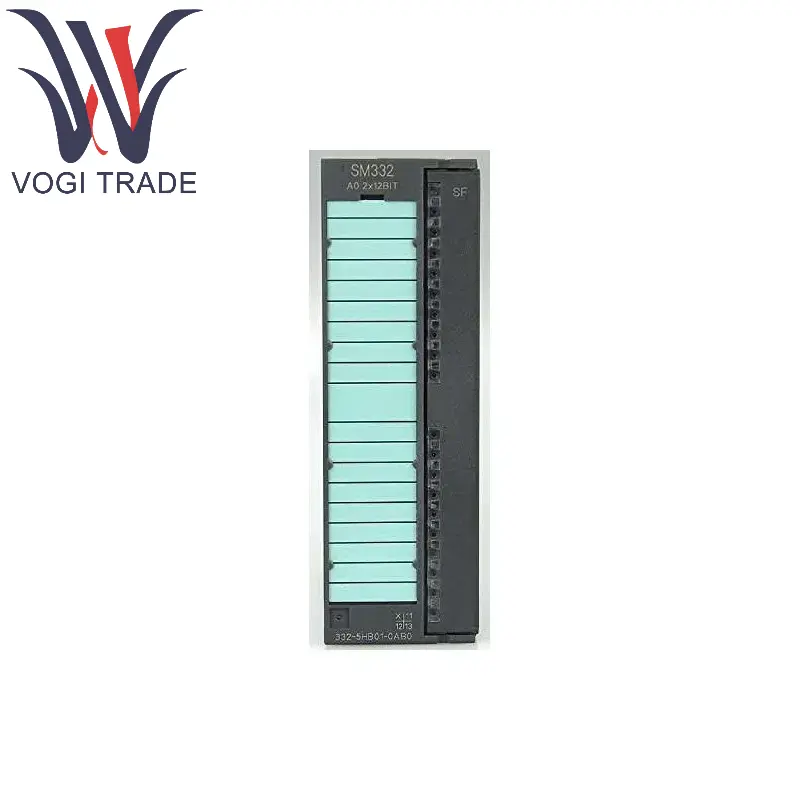

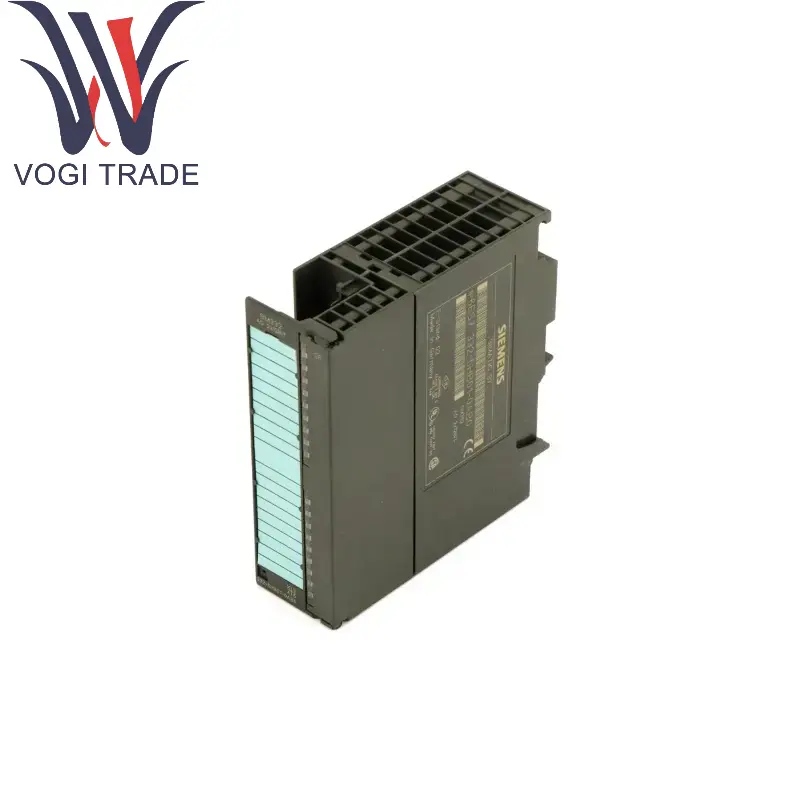

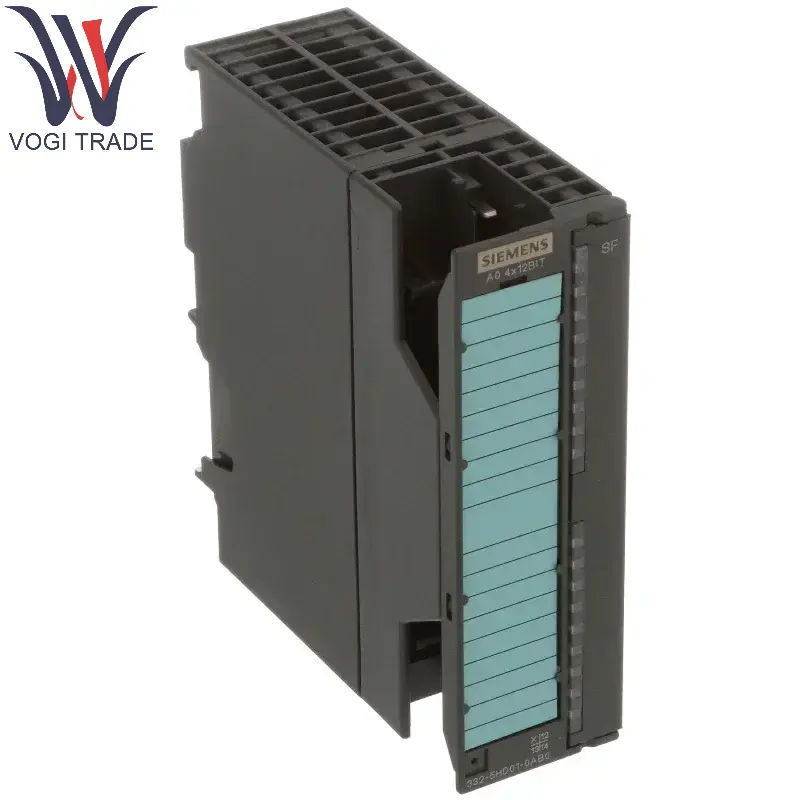

Brand: Siemens Description: Analog Output SM 332 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES7332-5HB01-0AB0 SIMATIC S7-300, Analog output SM 332, isolated, 2 AO, U/I; resolution 11/12 bits, 20-pole, Removing/inserting with active backplane bus possible
|
Manufacture |
Siemens |
|
Model Number |
6ES7332-5HB01-0AB0 |
|
Catalog |
SIMATIC S7-300 |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
4.0cm×12.5cm×11.7cm |
|
Packing Dimension |
6.0cm×14.5cm×13.7cm |
|
Weight |
0.220kg |
Technical Parameters
Channel Configuration:
16 digital outputs, divided into 2 groups, each group can be configured independently.
Source Output (PNP): 24V positive pole is provided at the output end, and the other end of the load needs to be grounded.
Electrical Isolation:
Channels are optically isolated from the backplane bus, and there is no isolation between groups.
Response Time:
Switching Delay: ≤1ms (on/off).
Connection method:
Siemens 6ES7332-5HB01-0AB0 connection through the front connector (20 pins), which needs to be ordered separately.
Diagnostic function:
Siemens 6ES7332-5HB01-0AB0 support short circuit detection and wire break detection
Working environment:
Working temperature: 0°C to +60°C
Protection level: IP20 .
Compatibility:
Need to be used with S7-300 PLC base.
Application areas
Industrial automation control:
Siemens 6ES7332-5HB01-0AB0 control motor start and stop, valve switch, conveyor belt operation, etc.
Manufacturing equipment:
Actuator drive for assembly lines, packaging machinery, and injection molding machines.
Process automation:
Switch quantity control in the chemical and metallurgical industries.
Infrastructure:
Lighting and ventilation system control in building automation.
Advantages and features
High reliability: transistor output has no mechanical contacts and has a long life.
Compact design: saves S7-300 rack space.
Fast response: suitable for high-frequency switching scenarios.
