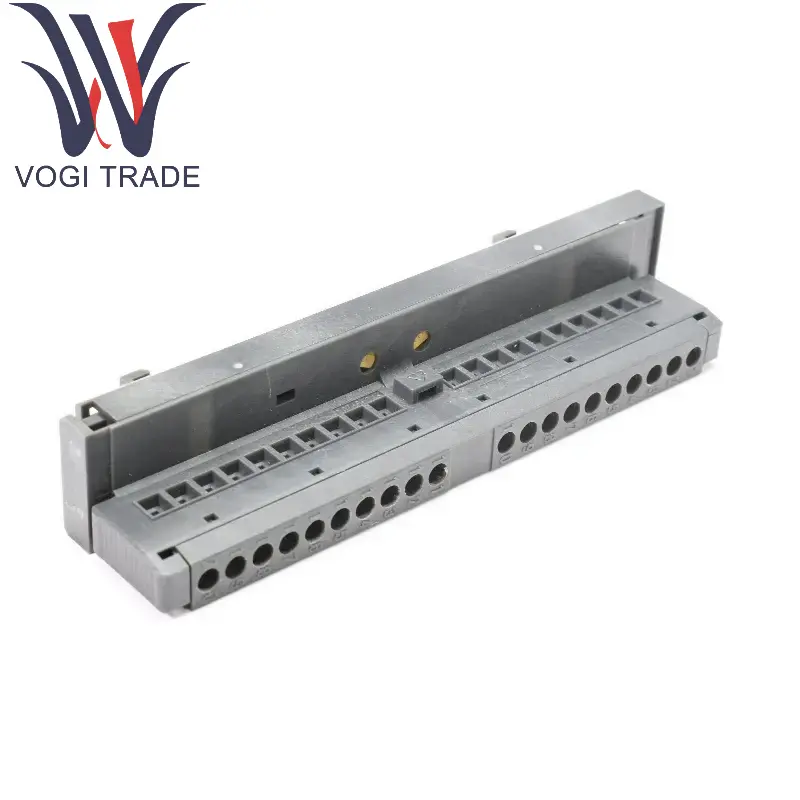

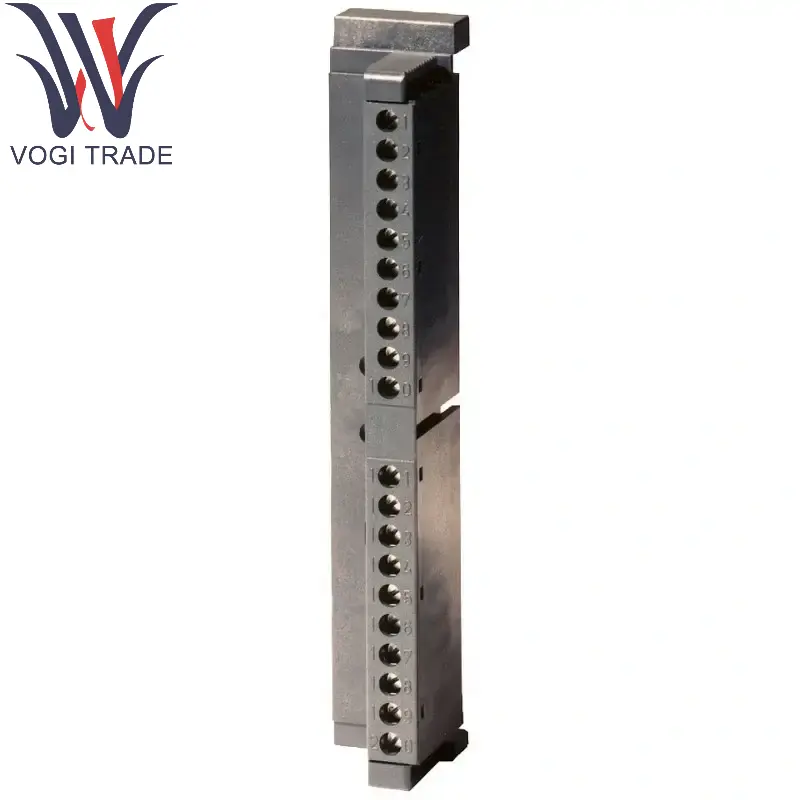

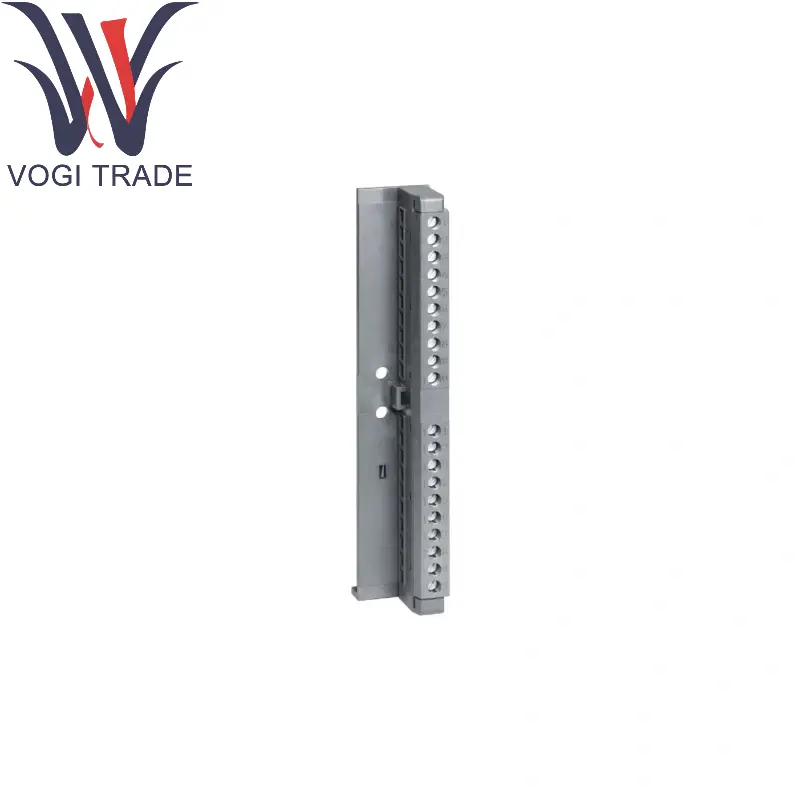

Siemens 6ES7392-1AJ00-0AA0

Function:

As the mechanical and electrical interface of the ET 200SP system, Siemens 6ES7392-1AJ00-0AA0 is used to connect signal modules (such as digital/analog I/O modules) and load groups.

Provides stable electrical connections and supports automatic coding (prevents incorrect module insertion and removal).

Integrated power rail to power subsequent modules.

Electrical characteristics:

Rated voltage: 24 V DC (load power supply)

Maximum current: 10 A (per load current loop)

Mechanical characteristics:

Module width: 15 mm (standard size)

Color coding: gray (common on standard BaseUnit)

Product details

Key features:

Automatic coding: Ensure correct module installation through mechanical coding keys.

Modular design: Siemens 6ES7392-1AJ00-0AA0 supports hot swapping (replacing modules while the system is running).

Load current grouping: Supports multiple groups of load loops to increase system flexibility.

Compatibility:

Compatible with all signal modules of the ET 200SP series (such as 6ES7131-6BH01-0BA0, etc.).

Siemens 6ES7392-1AJ00-0AA0 need to be used with matching server modules (such as 6ES7193-6PA00-0AA0).

Certification:

Complies with international standards such as CE, UL, RoHS, etc.

Application fields

Industrial automation:

Distributed I/O expansion for PLC control systems (such as S7-1500/S7-1200).

Applicable to scenarios such as automobile manufacturing, food processing, and packaging machinery.

Process control:

Connect sensors and actuators to achieve signal acquisition and output.

Flexible deployment:

Suitable for space-constrained occasions, supporting high-density module installation.

Commonly used in production lines, logistics systems, energy management, etc.
