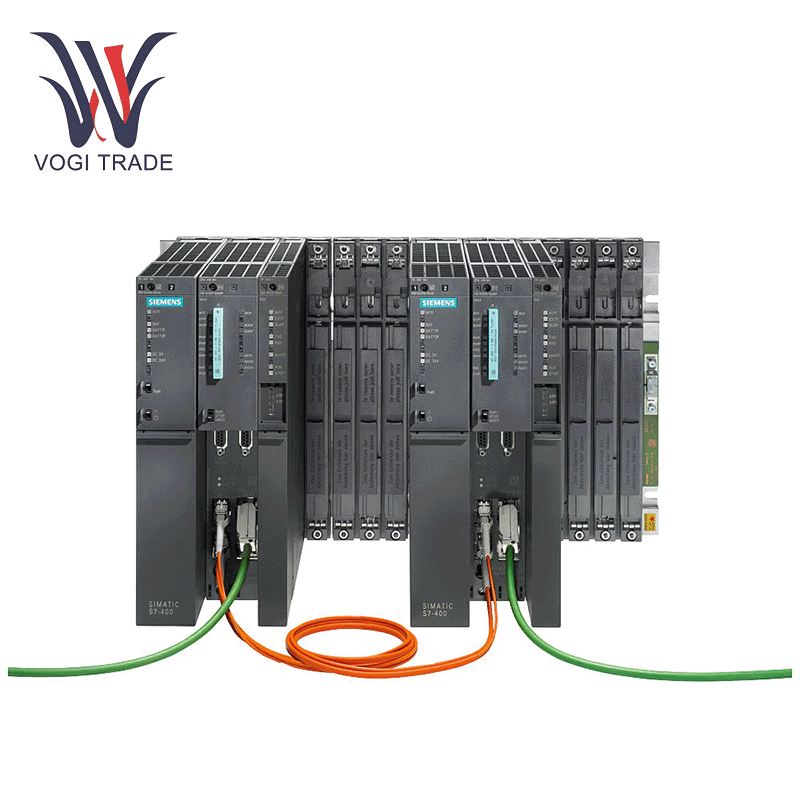

Brand: Siemens Description: S7-400H in separate racks Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES74000HR534AB0: 416-5H system kit, including 1 X UR2-H, without memory card, 2 X PS405, 10A, DC24/48/60V, 4 X sync modules, 2 X sync fibers, 2 X CPU 416-5H, 4 backup batteries.
|
Manufacture |
Siemens |
|
Model Number |
6ES74000HR534AB0 |
|
Catalog |
ST74 |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
33*59*45cm |
|
Packing Dimension |
35*61*47cm |
|
Weight |
11kg |
Technical Parameters
Isolation & Signal Integrity
Features galvanic isolation between input/output channels and the backplane bus, ensuring noise immunity and compliance with IEC 61131-2 standards.
Backplane Current Consumption
Draws a maximum of 1.2 A from the S7-400 backplane, optimized for low-power system configurations.
Update Rate & Diagnostics
Supports configurable I/O update cycles (adjustable via STEP 7 software) with real-time diagnostics for open-circuit, short-circuit, and overvoltage conditions.
Certifications & Compliance
Meets ATEX Zone 2 requirements for hazardous environments and complies with EN 61326 EMC standards for industrial applications.
Mechanical Design
Constructed with a die-cast aluminum housing for EMI shielding; weighs 480g and supports vertical or horizontal mounting per EN 60715.
Redundancy Support
Enables hot-swappable operation in redundant systems with synchronization latency below 10 ms for fail-safe architectures.
Firmware Integration
Compatible with Siemens STEP 7 V5.6+ and TIA Portal V15+, supporting parameterization via GSD files for third-party PLC integration.
Key Features
The Siemens 6ES74000HR534AB0 is a high-performance processor product.
Redundant Design: With 2 CPU 416-5H processors and 2 PS 405 power supplies, the Siemens 6ES74000HR534AB0 will not stop working if you ever experience a hardware issue.
Synchronization Function: Featuring 4 sync modules (range up to 10m) and 2 sync cables, the Siemens 6ES74000HR534AB0 synchronizes real-time data among redundant modules to reduce downtime for failover applications.
Modular Expandability: The UR2-H supports a wide variety of I/O and communication modules, providing flexibility for demanding automation applications.
Compatible Devices
The Siemens 6ES74000HR534AB0 works seamlessly with Siemens’ ecosystem for holistic automation solutions.
Essential Add-Ons: Requires 2 memory cards (sold separately) and 4 backup batteries to maintain configuration and data during power outages.
I/O and Communication Modules: Compatible with Siemens S7-400 series modules, such as analog/digital input-output units, for expanded control capabilities.
Peripheral Integration: Supports connectivity with HMIs, SCADA systems, and Profibus/Profinet networks for centralized monitoring and control.
Industry Use Cases
The Siemens 6ES74000HR534AB0 excels in diverse industrial applications.
Chemical Processing: In a chemical reactor control system, the Siemens 6ES74000HR534AB0’s redundancy ensures safe shutdowns during emergencies, preventing hazardous incidents.
Power Grid Management: Deployed in substation automation, the Siemens 6ES74000HR534AB0 maintains grid stability by enabling rapid switchovers between power sources during faults.
Pharmaceutical Production: The system’s precision and reliability make it suitable for sterile manufacturing lines, where even minor disruptions can compromise product quality.
