Siemens 6ES74031TA110AA0

Technical Parameters

Dual-Range Input Voltage

Supports 120/230V AC (±15%) with automatic detection, incorporating active PFC (0.99 power factor) for global grid compatibility.

Decentralized Cooling Design

Fanless operation with heat-dissipating aluminum fins (4.8W natural convection loss) for silent operation in control cabinets.

Buffered Output Retention

Integrated 20ms power hold-up time during brownouts using hybrid supercapacitor technology (50,000 cycle endurance).

Phase Loss Protection

Monitors 3-phase balance with <500ms fault detection and staged shutdown to prevent asymmetrical load damage.

Dynamic Load Sharing

Enables N+1 parallel redundancy with current balancing tolerance ≤5% across multiple units.

Harmonic Suppression

Complies with EN 61000-3-2 Class A standards, limiting THDi to <8% at full load (25°C ambient).

Functional Features

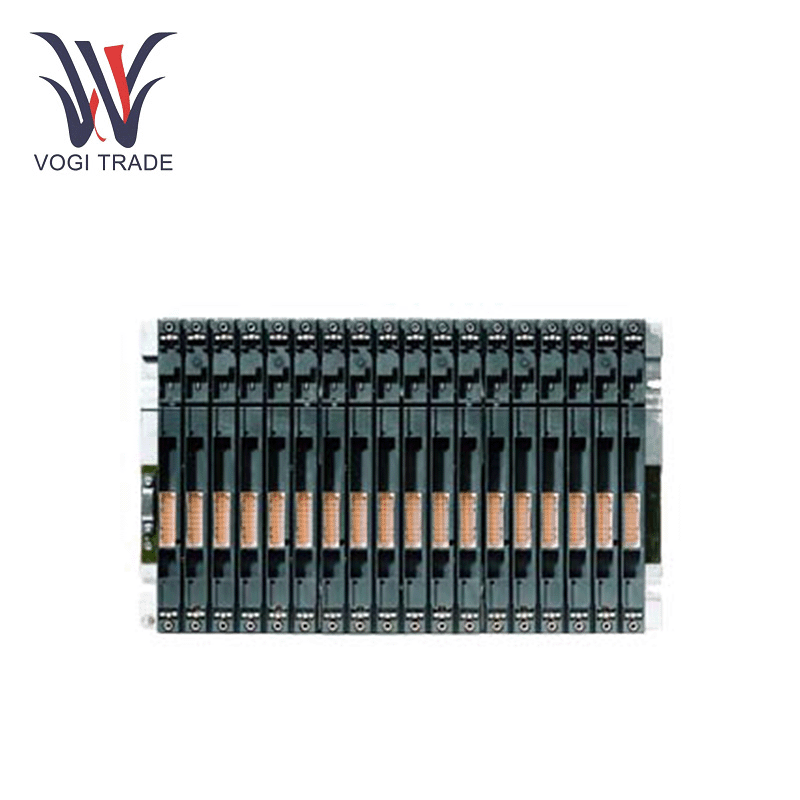

The Siemens 6ES74031TA110AA0 stands out with 18-slot expandability and seamless integration into S7-400 PLC architectures.

Modular Flexibility: Supports up to 18 signal or communication modules, enabling tailored configurations for complex tasks like smart grid monitoring or food packaging automation .

Redundancy-Ready Design: Allows dual power supply units (PSUs) to be installed, minimizing downtime risks in mission-critical systems such as nuclear power plant controls .

Aluminum Construction: Weighing only 6.35 lbs, the lightweight yet durable frame simplifies installation in space-constrained cabinets while resisting corrosion in humid environments like wastewater treatment facilities.

Compatible Equipment

The Siemens 6ES74031TA110AA0 serves as the backbone for S7-400 PLC ecosystems, interfacing with:

Central Processing Units (CPUs): Pair with Siemens 6ES7416-3XR05-0AB0 CPUs for high-speed data processing in semiconductor fabrication lines.

Power Supplies: Integrate Siemens SITOP PSU8600 modules to stabilize 24 VDC input, crucial for precision-driven robotics in automotive manufacturing .

I/O Modules: Connect Siemens 6ES7321-1BH02-0AA0 digital input modules (16-channel, 24 VDC) for real-time sensor data acquisition in conveyor belt systems .

Practical Use Cases

The Siemens 6ES74031TA110AA0 powers large-scale automation solutions across industries:

Automotive Production: Manages welding robots and assembly line sensors in factories, utilizing 18 slots to integrate analog/digital I/O modules and PROFIBUS communication cards.

Chemical Processing: Hosts redundant safety PLCs in hazardous environments, ensuring fail-safe shutdown protocols during pressure or temperature anomalies.

Energy Distribution: Coordinates substation monitoring systems by linking grid sensors and SCADA interfaces, supported by dual PSUs for 24/7 grid reliability.
