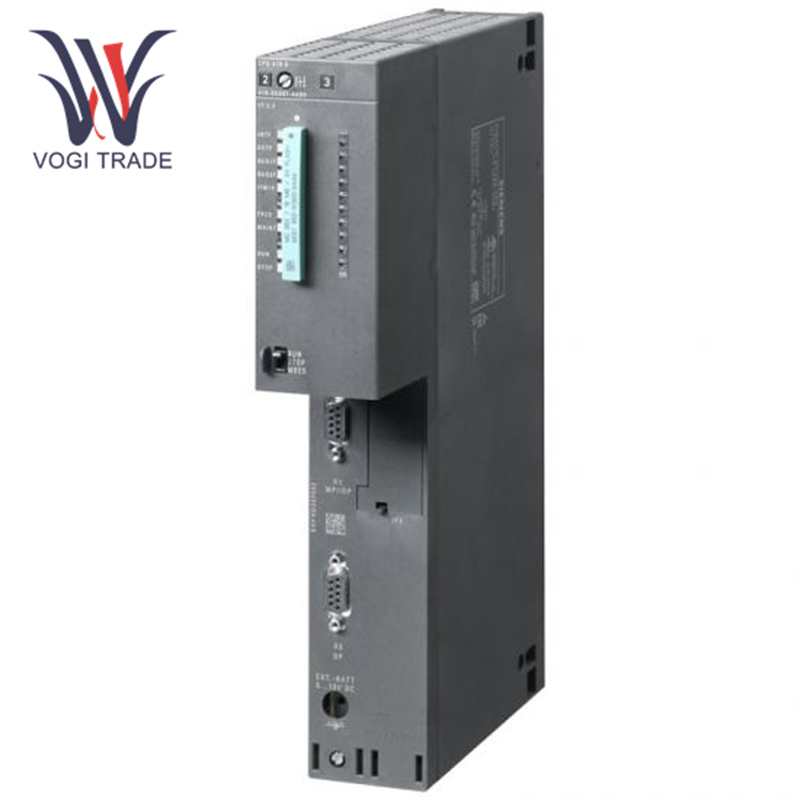

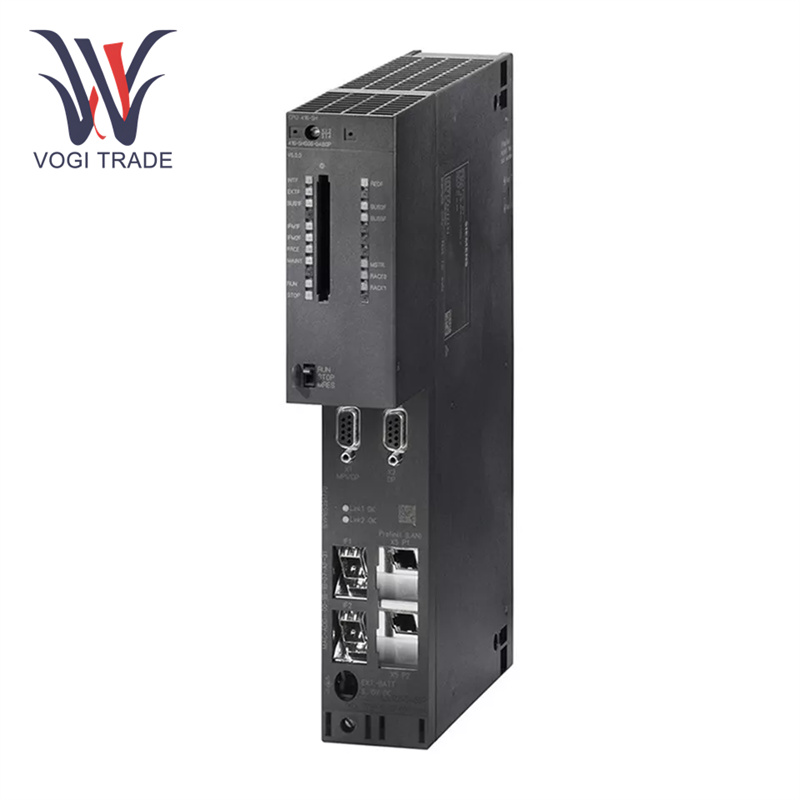

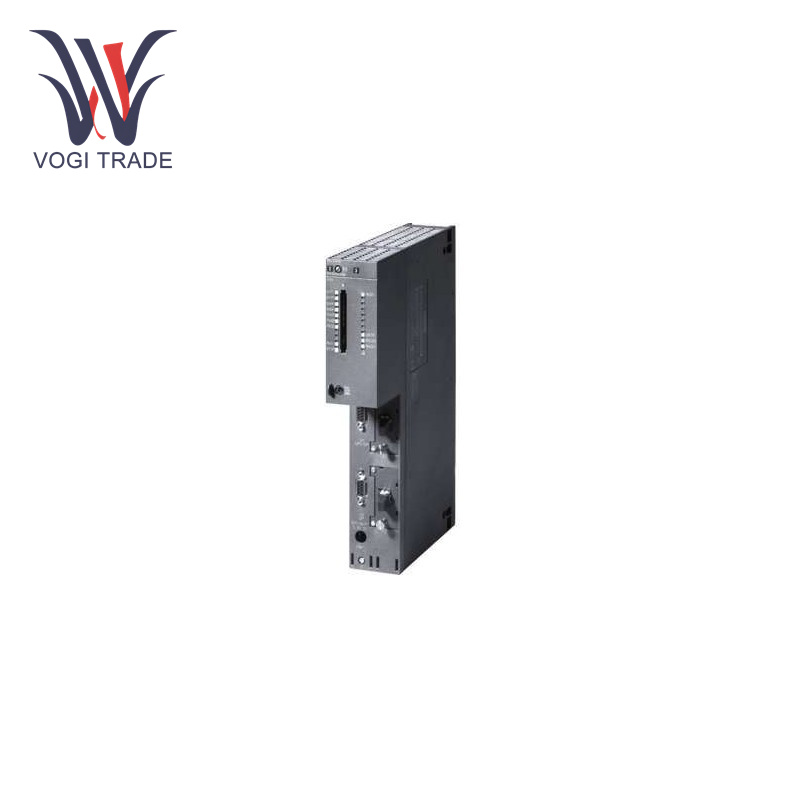

Siemens 6ES7414-4HM14-0AB0

Technical parameters

Memory capacity: 2.8MB memory, divided into control algorithm part, data memory and program memory up to 1.4MB each, enough space to store more complex controller logic and growing record sets

Interface module: Siemens 6ES7414-4HM14-0AB0 CPU module has 4: These interfaces enable them to communicate through multiple communication protocols and can be easily integrated with other devices or systems.

Real-time performance optimization: The bit instruction processing time is 45ns and the word instruction processing time is 135nS, which can quickly and efficiently perform complex control tasks, ensuring the fast response speed and precise operation accuracy of industrial processes.

Features

With high capabilities and processing speed: Siemens 6ES7414-4HM14-0AB0 belongs to the S7-400 series, driven by a powerful processor, it can handle complex automation jobs, which are much more difficult to control and execute in large-scale scenarios. It is able to process a large number of I/O signals, which can be implemented in complex mathematical operations and logical judgments, thereby achieving high-precision control of industrial processes.

Scalability and flexibility of the S7-400 series: The entire S7-400 adopts a modular design, allowing flexible configuration of the 6ES7414-4HM14-OABO CPU module with other modules (such as I/O modules, communication proprietary modules). Siemens 6ES7414-4HM14-0AB0 modular design allows users to assemble and expand the system according to requirements, making it very suitable for system automotive design.

High communication and network capabilities: The CPU module has a variety of communication protocols, such as PG/OP communication, S7 standard protocol interface (S7COMM), TCP/IP (Industrial Ethernet protocol); UDP; ISO-on-TCP, etc., especially supporting PROFINET network, which can realize seamless data exchange between the PLC system and other devices/systems for remote query functions one by one, or build an entire distributed control system of an intelligent network through any distributed nodes.

Support redundancy and high reliability: Supports redundant configuration. If one device fails, the system can automatically switch to a backup device to continue working. This redundant design greatly improves the reliability and availability of the system, making Siemens 6ES7414-4HM14-0AB0 particularly suitable for fail-safe applications or applications with serious consequences of failure (for example, critical production processes or important infrastructure).

Flexible I/O allocation: Multiple CPUs in the S7-400 central controller can work together, with each CPU corresponding to its own set of I/O resources. With this I/O allocation flexibility, the system can more easily adapt to complex automation tasks and meet the wide range of requirements of various industrial applications.

Signal processing function: Includes a 30 kHz high-speed counter with a programmable reset input terminal. In addition, 2 high-speed pulse output channels (up to 20kHz) can be used for stepper motors and servo drive motors required in positioning tasks. In addition, the module is able to capture pulses faster than the CPU scan cycle of ordinary input terminals and provide fast response when input is obtained through the interrupt edge of the rising signal.

Application scope

Industrial manufacturing: 6ES7414-4HM14-0AB0 is very suitable for use in manufacturing plants for controlling production lines such as conveyor systems, robotic arms, and automatic assembly machines. It has high-speed processing and precise control functions, which can achieve smoother production processes and improve product efficiency.

In the chemical and petrochemical, pharmaceutical or food processing industries: CPU modules can monitor and control temperature, pressure, etc. with appropriate settings.

Building Automation: In Building Management Systems (BMS)/Building Automation, building automation can be deployed to control HVAC, lighting, and access within the premises. Siemens 6ES7414-4HM14-0AB0 communicates with various sensors and actuators to provide an efficient, comfortable, energy-saving indoor environment and ensure security or building management efficiency.
