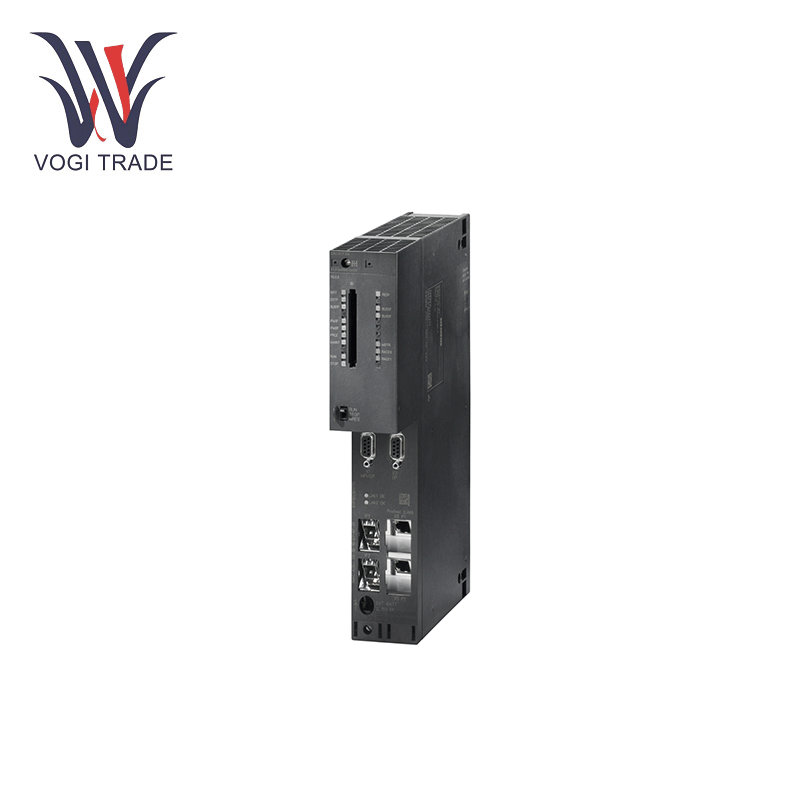

Brand: Siemens Description: CPU 414F-3 PN/DP Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES74143FM070AB0: CPU414F-3 PN/DP: 4 MB (2 MB data, 2 MB code), bit processing speed 18.75ns, for S7-400F, integrated 3 interfaces: 1. PROFIBUS+MPI, 2. PROFINET, 2 ports, 3. Scalable IF964-DP (IF) interface.
Manufacture |
Siemens |
Model Number |
6ES74143FM070AB0 |
Catalog |
ST76 |
Country Of Origin |
Germany |
HS CODE |
8538900000 |
Dimension |
29*5*21.9cm |
Packing Dimension |
31*7*24cm |
Weight |
1.2kg |
Technical Parameters
Integrated PROFINET Interfaces
Dual-port PROFINET controller with IRT (Isochronous Real-Time) support for deterministic communication, enabling motion control synchronization via 100 Mbps Ethernet.
Safety-Certified Operation
Complies with SIL 3 (Safety Integrity Level) standards for fail-safe applications, supporting redundant safety program execution and hardware fault tolerance.
Onboard Memory Expansion
Includes 4 MB RAM (expandable via 24 MB Flash memory card) for data logging and recipe management, with cyclic redundancy check (CRC) protection.
Industrial Certification
Meets marine application standards (DNV/GL) and corrosion resistance requirements (EN 60068-2-52) for harsh environments.
Temperature Resilience
Operates at extended temperature ranges (-25°C to +60°C) without performance degradation, suitable for unregulated industrial enclosures.
Functional Highlights
Designed for precision and flexibility, the Siemens 6ES74143FM070AB0 delivers:
Multi-Protocol Mastery: Equipped with PROFIBUS DP and MPI interfaces (12 Mbit/s), it synchronizes data exchange between HMIs, servo drives, and IoT gateways. An optional IFM slot allows customization with Wi-Fi or Ethernet modules for remote diagnostics.
High-Speed Processing: A 414-3 CPU core and 4 MB memory (2 MB program/2 MB data) enable rapid execution of PID loops and motion control algorithms, critical for robotic assembly tasks.
Compact Efficiency: At 230×30×60 mm and 1.1 kg, it saves 40% cabinet space compared to bulkier models, ideal for retrofitting legacy systems.
These features ensure the Siemens 6ES74143FM070AB0 balances performance with scalability in evolving industrial ecosystems.
Compatible Systems and Devices
The module integrates effortlessly with Siemens and third-party ecosystems:
SIMATIC HMIs: Pair with KTP700 Basic panels for intuitive operator control and fault visualization.
I/O Expansion: Connect to ET 200SP distributed modules for scalable analog/digital signal handling in large-scale oil refineries.
Drive Synchronization: Interface with SINAMICS G120X inverters via PROFIBUS DP, enabling precise torque control for conveyor systems.
For virtual commissioning, the Siemens 6ES74143FM070AB0 supports TIA Portal simulations, reducing physical testing time by 50%.
Real Applications
Intelligent Warehousing: In a European logistics hub, the Siemens 6ES74143FM070AB0 coordinates automated guided vehicles (AGVs) and RFID scanners, achieving 99.5% inventory accuracy.
Batch Processing in Food Industry: Manages mixing and filling stations in a dairy plant, utilizing its analog input modules to monitor viscosity and temperature, ensuring consistent product quality.
A case study in a solar panel factory highlights its role in reducing downtime by 22% through predictive maintenance alerts via Step 7 software.
