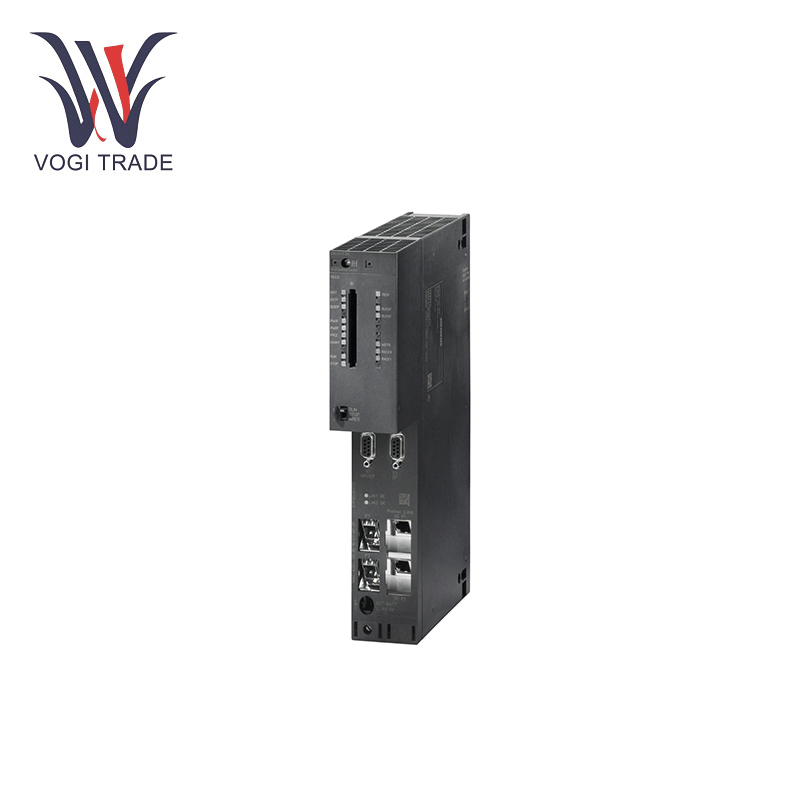

Siemens 6ES74162XP070AB0

Cross-Platform Protocol Bridging

Native support for PROFIBUS DP-V2, EtherCAT, and BACnet MS/TP, enabling legacy-to-modern protocol translation without external gateways for hybrid industrial networks.

Extended Addressable I/O Capacity

Manages 131,072 I/O points(digital + analog) in distributed configurations via ET 200SP HA interfaces, scalable to 512 submodules per controller.

Time-Sensitive Networking (TSN) Compliance

Complies with IEEE 802.1AS-2020 for nanosecond-level clock synchronization, critical for synchronized multi-axis robotics and CNC systems.

Ruggedized Material Design

Encased in glass-fiber-reinforced PPSU housing for resistance to UV radiation, hydrocarbons, and abrasive dust (tested per IEC 60721-3-4 Class 4M6).

Edge-to-Cloud Data Pipeline

Pre-integrated Siemens MindSphere Edge runtime for localized analytics and secure data uplink to AWS/Azure via RESTful APIs or MQTT-SN.

Functional Features

The Siemens 6ES74162XP070AB0 stands out with advanced capabilities tailored for complex automation tasks.

High-Speed Processing: Equipped with 8 MB of work memory (4 MB code, 4 MB data), the Siemens 6ES74162XP070AB0 executes up to 1,000 binary operations in 12.5 milliseconds, ensuring real-time control for precision-driven processes like assembly lines or robotic systems.

Dual Communication Interfaces: The MPI/DP and PROFIBUS DP ports enable seamless connectivity with Siemens PLC networks, sensors, and actuators. This dual-channel design supports 12 Mbit/s data transfer rates, optimizing synchronization in multi-device setups.

Compatible Equipment

The Siemens 6ES74162XP070AB0 integrates effortlessly with Siemens automation ecosystems.

Siemens S7-400 Series Modules: Pair with power supply units (e.g., 6ES7407-0RA00-0AA0) and I/O modules (e.g., 6ES7431-1KF00-0AB0) to expand system capabilities. This modularity allows customization for tasks like data acquisition or motor control.

PROFIBUS-Compatible Devices: Connect to Siemens ET200 distributed I/O systems or HMI panels for centralized monitoring. The Siemens 6ES74162XP070AB0’s PROFIBUS DP interface ensures stable communication across long-distance factory layouts.

Application Scenarios

The Siemens 6ES74162XP070AB0 excels in diverse industrial settings.

Automotive Manufacturing: In car assembly lines, the Siemens 6ES74162XP070AB0 coordinates robotic arms and conveyor systems, ensuring millisecond-level timing for welding and component placement. Its redundancy support minimizes downtime during high-volume production.

Food and Beverage Processing: For hygienic environments, the CPU manages temperature-controlled packaging lines and CIP (Clean-in-Place) systems. Compliance with RoHS directives guarantees safe operation in facilities adhering to strict environmental regulations.
