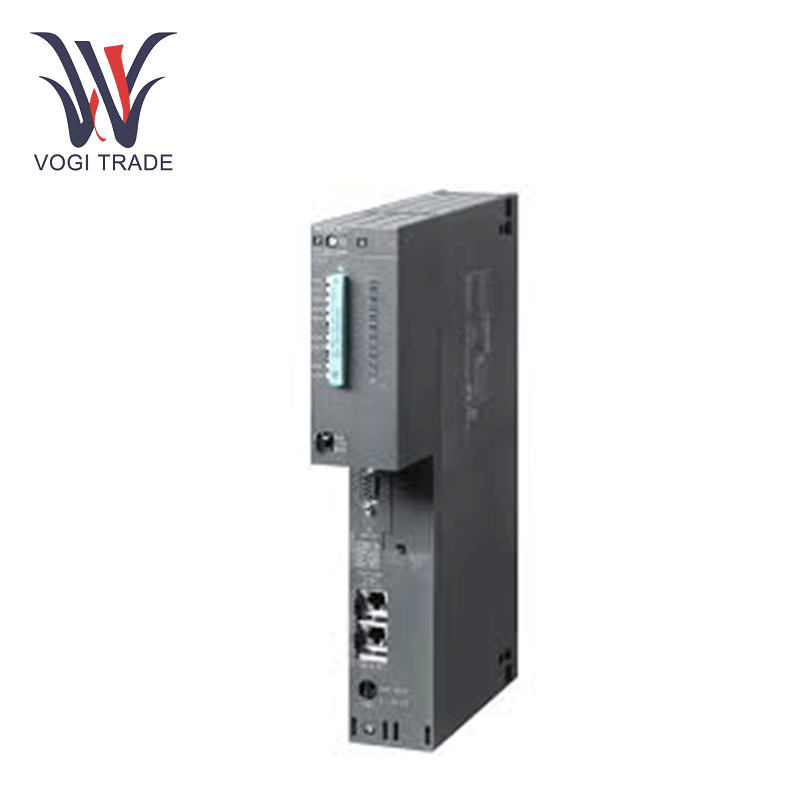

Siemens 6ES74163ES070AB0

Technical Parameters

Processing Core

Equipped with a RISC-based 64-bit CPU with 8 ns/bit instruction execution time, optimized for high-speed logic and arithmetic operations in complex automation tasks.

Work Memory Capacity

Integrates 4.5 MB RAM (expandable via memory cards) for user programs and data, with error-correction coding (ECC) for fault-tolerant operation.

Communication Interfaces

Dual MPI/DP ports (RS-485) supporting up to 187.5 kbps, enabling simultaneous programming and HMI connectivity without additional modules.

Redundancy Architecture

Designed for S7-400H hot standby systems with fiber-optic synchronization links, achieving switchover times <100 ms for mission-critical processes.

Safety Certifications

Certified for ISO 13849 PL e and IEC 62061 SIL 3 safety applications, incorporating hardware-based safety logic execution.

Expansion Capability

Supports up to 21 expansion racks via PROFIBUS or PROFINET, with address space management for 65,536 I/O points.

Firmware Features

Embedded OPC UA server functionality (TIA Portal V17+ required) for secure M2M communication and cloud integration.

Environmental Testing

Validated against IEC 60068-2-6 (vibration) and IEC 60068-2-27 (mechanical shock) for deployment in heavy industrial environments.

Key Features

The Siemens 6ES74163ES070AB0 combines processing power with flexibility:

High-Speed Processing: Features 16 MB work memory (8 MB for code, 8 MB for data), ensuring rapid execution of complex automation logic for tasks like real-time data analysis and motion control.

Multi-Interface Support:

MPI/DP Interface: Enables communication at 12 Mbit/s for legacy PLC networks.

PROFINET Interface: Facilitates real-time industrial Ethernet communication for IoT-enabled systems.

IFM Plug-in Slot: Allows integration of additional interface modules (e.g., IF 964-DP) for customized expansion.

Scalability: Compatible with S7-400 I/O modules (e.g., 6ES7431-1KF00-0AB0) and communication processors like CP 443-1, ensuring adaptability to evolving automation needs.

Compatible Components

The Siemens 6ES74163ES070AB0 integrates seamlessly with Siemens’ automation ecosystem:

Power Supplies: Paired with PS 405/407 units (24/48/60V DC), the system maintains stable operation during voltage fluctuations.

I/O Modules: Supports S7-400 series analog/digital modules for precise control of sensors, actuators, and high-speed counters in processes like temperature regulation or production line synchronization.

SCADA Integration: Interfaces with WinCC SCADA systems for centralized monitoring, diagnostics, and data logging in large-scale facilities.

Industry Applications

The Siemens 6ES74163ES070AB0 addresses automation challenges across sectors:

Automotive Manufacturing: Manages robotic welding arms and conveyor systems, minimizing downtime through fault-tolerant logic execution.

Chemical Processing: Controls batch reactors and safety interlocks, leveraging its robust design to operate in corrosive environments.

Energy Management: Coordinates grid synchronization and load distribution in renewable energy plants, ensuring stable power generation.
