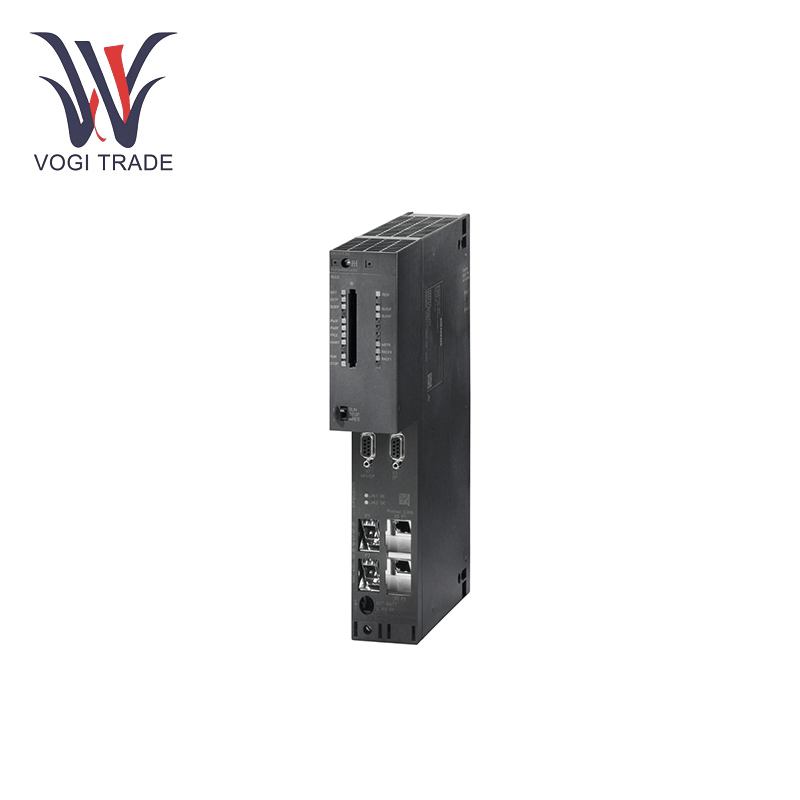

Brand: Siemens Description: CPU 416-5H PN/DP Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES74165HS060AB0: CPU 416-5H: 16 MB (10 MB data, 6 MB code), bit processing speed 12.5 ns, for S7-400H and S7-400F/FH, integrated 5 interfaces: 1. MPI/DP, 2. PROFIBUS DP, 3. PROFINET, 4~5. 2 interfaces for synchronization modules.
|
Manufacture |
Siemens |
|
Model Number |
6ES74165HS060AB0 |
|
Catalog |
ST74 |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
29*5*21.9cm |
|
Packing Dimension |
31*7*24cm |
|
Weight |
1.2kg |
Technical Parameters
Multi-Core Processing
Dual-core CPU architecture with ARM Cortex-A9 cores, achieving ≤2 ns cycle time for ultra-high-speed control tasks (e.g., motion control, robotics).
Deterministic Communication
Supports IEEE 1588 Precision Time Protocol (PTP)for μs-level synchronization across PROFINET IRT networks, critical for distributed motion systems.
Dynamic Memory Management
8 MB integrated RAM with configurable partitioning for program execution, data logging, and communication buffers, expandable via SDXC cards (up to 512 GB).
High-Speed Redundancy
Enables S7-400H redundant systems with <5 ms switchover time via dedicated 10 Gbps fiber-optic sync links, ensuring zero downtime in power/process industries.
Hardware-Level Security
Embedded Secure Boot with TPM 2.0 cryptographic module for firmware integrity checks and protection against unauthorized code injection.
Scalable I/O Architecture
Supports 64 ET 200SP HA distributed I/O stations per controller, handling up to 262,144 I/O points with deterministic response times.
Key Functional Features
The Siemens 6ES74165HS060AB0 combines speed, redundancy, and modularity:
High-Speed Processing: With 16 MB integrated memory (10 MB data, 6 MB code) and expandable up to 64 MB FEPROM/RAM, the Siemens 6ES74165HS060AB0 executes real-time safety logic, motion control, and batch processing without latency.
Redundant Architecture: Dual-CPU synchronization via IF 964-DP slots ensures uninterrupted operations during hardware faults, making it indispensable for continuous production lines like automotive assembly plants.
Modular Flexibility: Supports plug-in modules such as CP 443-1 communication processors and safety I/O cards, allowing tailored configurations for conveyor systems, robotic arms, or energy grid management.
Compatible Components
The 6ES74165HS070AB0 integrates seamlessly with Siemens’ ecosystem:
Power Stability: Pair with PS 407 power supplies (120/230V AC) to ensure stable operation in environments with voltage fluctuations, such as automotive plants.
Safety I/O Modules: Compatible with S7-400F digital/analog modules, the 6ES74165HS070AB0 monitors safety sensors and emergency stops in hazardous zones, complying with ATEX directives.
SCADA Integration: Interface with WinCC SCADA systems for centralized diagnostics, reducing downtime in large-scale facilities like chemical processing plants.
Real Applications
The 6ES74165HS070AB0 addresses automation challenges across industries:
Automotive Manufacturing: At Toyota and BMW plants, the 6ES74165HS070AB0 manages redundant welding robots and fault-tolerant assembly lines, achieving 99.9% uptime through synchronized dual-CPU operations.
Chemical Batch Processing: In BASF facilities, it controls reactor temperature interlocks and safety valves, leveraging its corrosion-resistant design for acidic environments.
Energy Grid Stability: The 6ES74165HS070AB0 synchronizes power distribution in wind farms, ensuring compliance with IEC 61850 standards during rapid load fluctuations.
