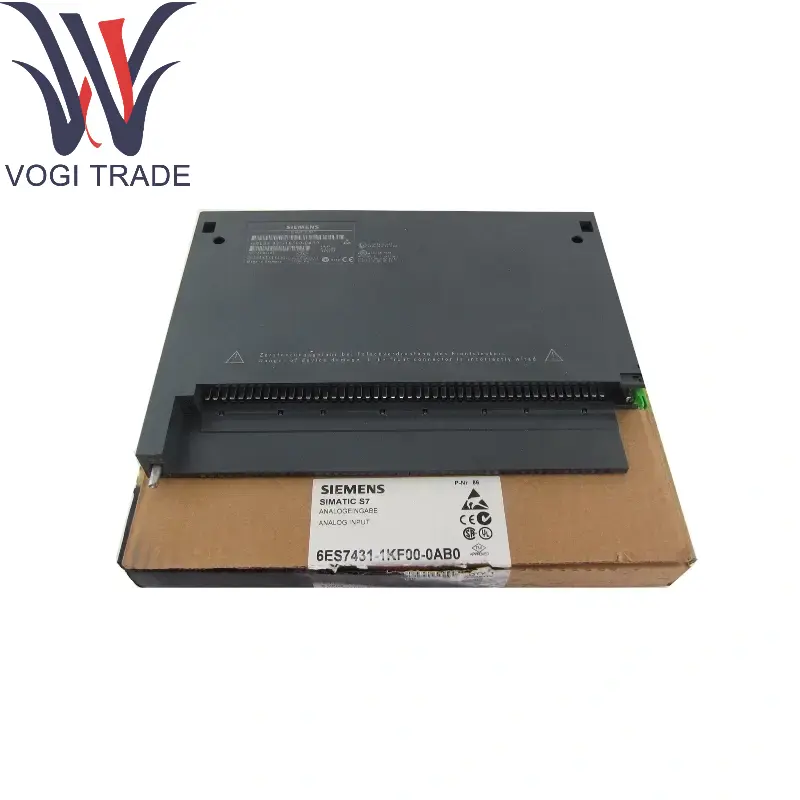

Brand: Siemens Description: 16-channel Analog Input Module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES7431-1KF00-0AB0 16-channel analog input module, supporting high-precision signal acquisition.
|
Manufacture |
Siemens |
|
Model Number |
6ES7431-1KF00-0AB0 |
|
Catalog |
SIMATIC S7-400 PLC Series |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
2.5cm×29cm×21cm |
|
Packing Dimension |
4.5cm×31cm×23cm |
|
Weight |
0.5kg |
Detail Description
Technical Parameters Input Channels: 16.
Resolution: 16 bits.
Range: Voltage: ±10V, ±5V, 0~10V, etc.
Current: 0~20mA, 4~20mA, etc.
Thermocouple: Siemens 6ES7431-1KF00-0AB0 supports multiple types.
Conversion time: about 1ms per channel
Isolation: No isolation between channels, but optical isolation from the backplane bus.
Power supply: through the backplane bus (5V DC, power consumption is about 1.5W).
Interface and Configuration Front connector: Requires a 40-pin front connector.
Range card: configure the signal type through the pluggable range card.
Diagnostic function: Siemens 6ES7431-1KF00-0AB0 support disconnection detection, over-limit alarm, etc.
Key Functional Features
High resolution (16 bits) and anti-interference ability.
Siemens 6ES7431-1KF00-0AB0 supports multiple signal types .
Siemens 6ES7431-1KF00-0AB0 suitable for industrial environments with high electromagnetic compatibility (EMC).
Application areas
Industrial process control: such as analog quantity monitoring (temperature, pressure, flow, etc.) in the chemical, petroleum, and pharmaceutical industries.
Energy management: grid voltage/current acquisition, power analysis.
Manufacturing: production line sensor signal (such as weighing, displacement sensor) processing.
Laboratory equipment: high-precision data recording and testing system.
