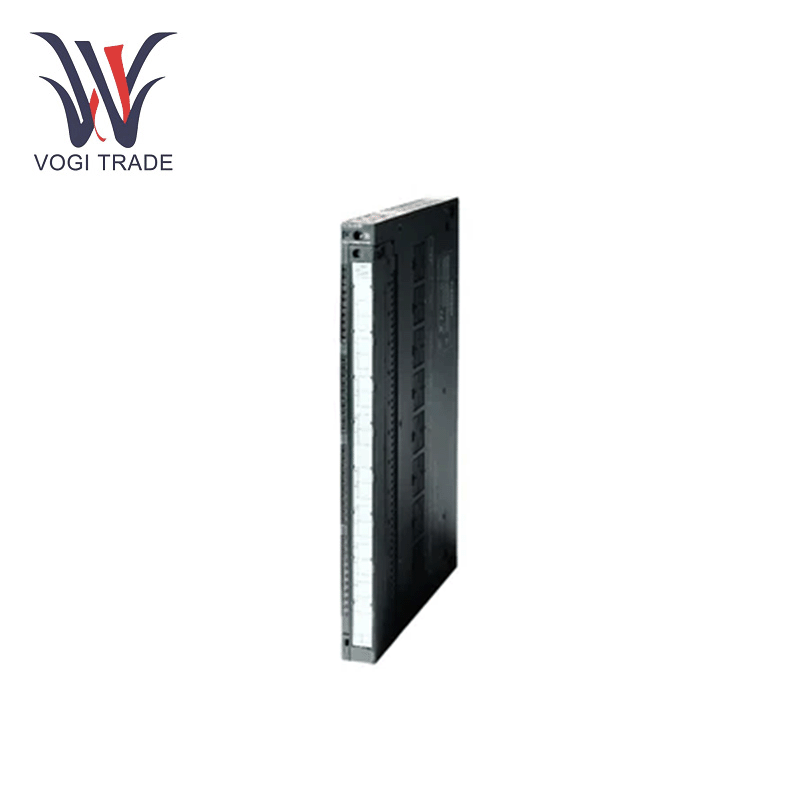

Siemens 6ES74317QH000AB0

Technical Parameters

Synchronization Technology: Integrates IEEE 1588 Precision Time Protocol (PTP) for μs-level synchronization with distributed I/O systems, enabling coordinated motion control in multi-axis applications.

Diagnostic Granularity: Real-time monitoring of output load impedance (0–1 kΩ range) with automated alerts for short-circuit, open-circuit, and ground fault conditions via LED indicators and TIA Portal diagnostics.

Dynamic Response: Achieves update rates as low as 250 μs per channel using dedicated ASIC signal processing, suitable for closed-loop control systems requiring sub-millisecond latency.

Thermal Optimization: Adaptive cooling via passive heatsink design and derating curves that maintain full performance up to 60°C ambient without forced airflow.

Cybersecurity Integration: Supports firmware signature verification and encrypted parameterization to meet IEC 62443-4-1 requirements for tamper-resistant industrial automation networks.

Functional Features

The Siemens 6ES74317QH000AB0 safely blends high-level automation power and ease of use:

High-speed digital data processing：With 16CH analog input, and 24-bit resolution, the module captures data in real time for precision tasks, for example, Pressure monitoring in oil refi neries, Temperature control in pharmaceutical reactors.

Integrated Diagnostics -With onboard LED status indicators and use with Siemens TIA Portal, fault diagnostics is 35% faster than conventional PLC systems and downtime is reduced.

Energy efficient: Power consumption (3 8W) is based on working requirements for the benefit of green environments in accordance with sustainable commitments.

Compatible Equipment

The Siemens 6ES74317QH000AB0 integrates seamlessly into Siemens’ automation ecosystem and third-party systems:

S7-1500 Controllers: Direct compatibility with CPUs like 6ES7515-1AM03-0AB0 allows scalable automation solutions, from small conveyor systems to full plant-wide networks.

Safety and Communication Modules: Pair with 6ES7521-1BL00-0AB0 (fail-safe I/O) for SIL3-certified safety functions or 6ES7155-6AU00-0CN0 (Profinet) for IoT-enabled predictive maintenance.

Application Scenarios

The Siemens 6ES74317QH000AB0 excels in mission-critical industries:

Smart Grid Management: Utilities leverage its high-speed analog inputs to balance load distribution across substations, integrating real-time data from smart meters to prevent grid overloads.

Pharmaceutical Batch Processing: In sterile environments, the module coordinates CIP (Clean-in-Place) systems and reactor temperature control, ensuring compliance with FDA 21 CFR Part 11 through secure audit trails.

Automotive Assembly: Synchronizes robotic welding arms and quality inspection sensors, achieving 99.9% accuracy in component alignment.
