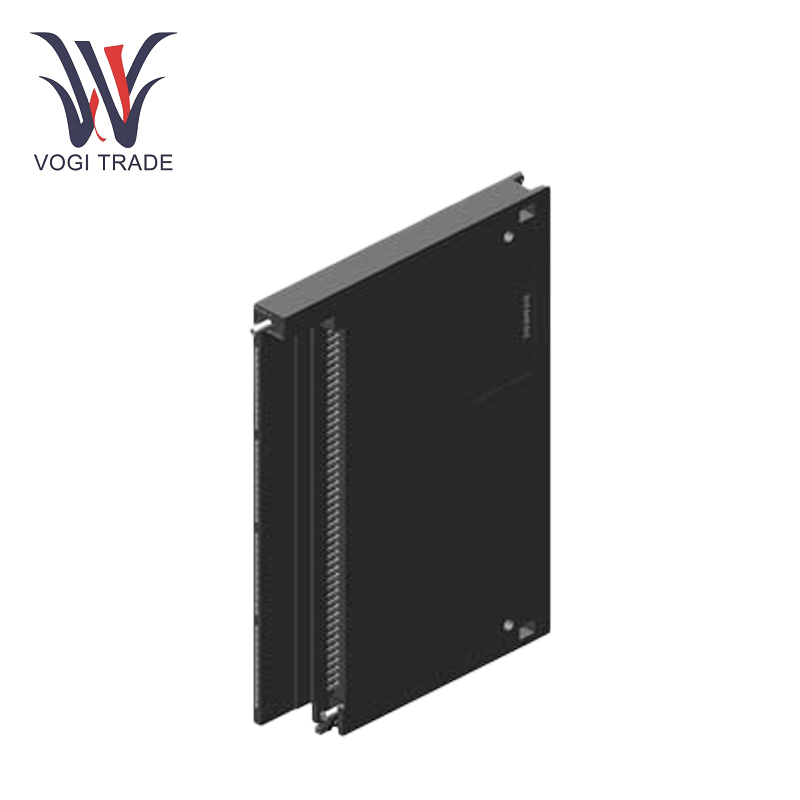

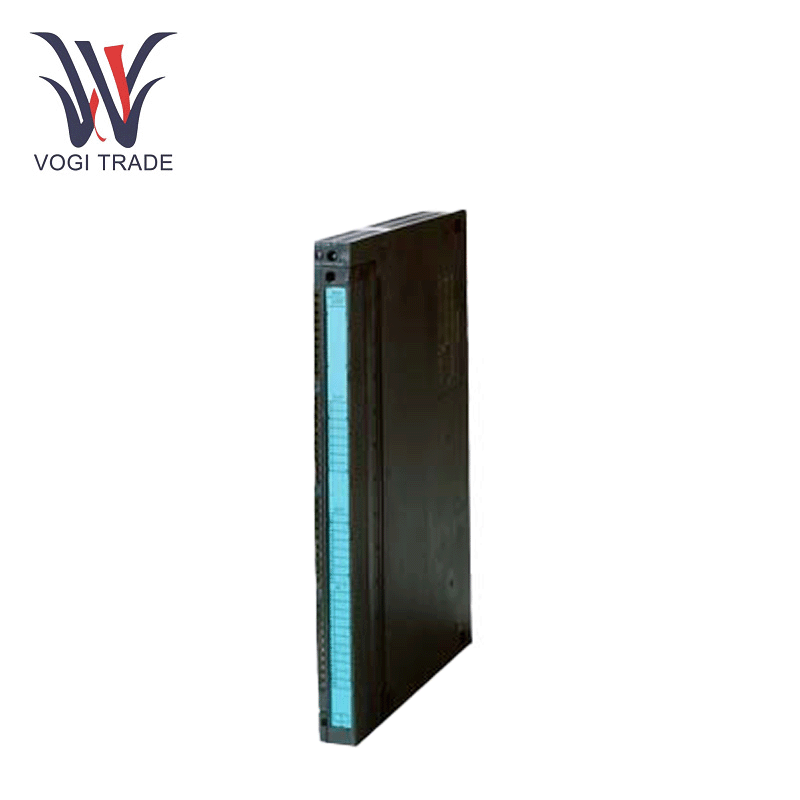

Brand: Siemens Description: Electronic cam controller FM 452 Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES74521AH000AE0: SIMATIC S7-400, cam control system FM 452, electronic incl. configuration package on CD.
|
Manufacture |
Siemens |
|
Model Number |
6ES74521AH000AE0 |
|
Catalog |
ST74 |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
2.5*29*21cm |
|
Packing Dimension |
5*31*23cm |
|
Weight |
0.65kg |
Technical Parameters
Supply voltage
Rated value (DC) : 24 V
Input current
Current consumption, max. : 500 mA
Power loss
Power loss, typ. : 8.1 W
Digital inputs
Number of digital inputs : 11
Input current
for signal "0", max. (permissible quiescent current) : 2 mA
for signal "1", typ. : 9 mA
Output voltage
Rated value (DC) : 24 V
for signal "1", min. : UP - 0.8 V
Functional Features
The Siemens 6ES74521AH000AE0 stands out with its advanced motion control capabilities and modular design.
High-Speed Input/Output Configurations: Equipped with 11 digital inputs and 16 outputs, this module enables precise synchronization of cam profiles and real-time adjustments in automated systems.
Integrated Configuration Software: The included CD-based configuration package simplifies programming, allowing users to define cam sequences and motion curves efficiently.
Scalable Performance: With a compact footprint (290 mm H × 25 mm W × 210 mm D), the Siemens 6ES74521AH000AE0 supports flexible integration into Siemens S7-400 PLC systems, reducing downtime during upgrades.
Compatible Equipment
The Siemens 6ES74521AH000AE0 is part of a comprehensive automation ecosystem.
S7-400 Series PLCs: Designed for use with Siemens S7-400 CPUs like the 6ES7412-2XK05-0AB0, it enhances system reliability in complex control tasks.
Peripheral Modules: Pairs with digital I/O modules (e.g., 6ES7421-1BL00-0AA0) and communication processors (e.g., 6GK7443-1EX20-0XE0) to create a unified control network.
Power Supplies: Compatible with Siemens 24 VDC power units (e.g., 6ES7307-1EA00-0AA0), ensuring stable operation in high-demand scenarios.
Practical Use Cases
The Siemens 6ES74521AH000AE0 excels in mission-critical automation applications.
Packaging Machinery: In high-speed bottling lines, this module coordinates conveyor belt speeds and filling heads, ensuring precise alignment and reducing material waste.
Automotive Assembly: Used to synchronize robotic arms and welding stations, the Siemens 6ES74521AH000AE0 maintains cycle times while adapting to variable production schedules.
Metal Stamping Presses: By controlling hydraulic actuators and safety interlocks, it enhances operational safety and repeatability in heavy-duty metal forming processes.
