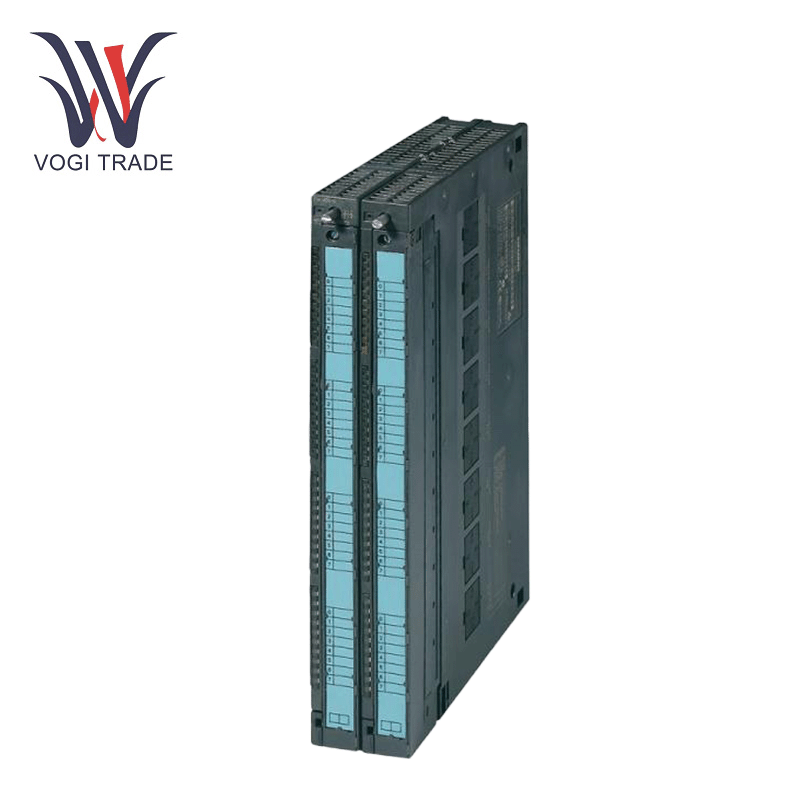

Siemens 6ES74550VS000AE0

Technical Parameters

Load voltage

Rated value (DC): 24 V

Permissible range, lower limit (DC): 20.4 V

Permissible range, upper limit (DC): 28.8 V

Input current

From load voltage L+ (without load), max. : 440 mA; typ. 370 mA

Power loss

Power loss, typ. : 12 W

Power loss, max. : 17.3 W

Digital inputs

Rated value (DC) : 24 V

For signal "0": -3 to +5V

For signal "1" : 13 to 30V

Input current

For signal "1", typ. : 7 mA

Functional Features

The Siemens 6ES74550VS000AE0 combines cutting-edge technology with user-centric design for superior automation performance:

Real-Time Processing Power: Equipped with a multi-core processor and 512 KB RAM, the Siemens 6ES74550VS000AE0 handles complex PID control loops and motion synchronization tasks with sub-millisecond response times, ideal for high-speed packaging machinery.

Integrated Diagnostics: Onboard LED status indicators and TIA Portal compatibility enable rapid fault detection, reducing troubleshooting time by up to 40% compared to conventional PLCs.

Energy Optimization: With adaptive power management, the module dynamically adjusts consumption (3W–8W) based on workload, supporting eco-friendly manufacturing initiatives.

Compatible Equipment

The Siemens 6ES74550VS000AE0 integrates seamlessly with Siemens’ automation ecosystem and third-party solutions:

S7-1500 Series Controllers: Direct compatibility with CPUs like 6ES7515-1AM03-0AB0 allows scalable system architectures for tasks ranging from small conveyor controls to full plant automation.

Safety and Communication Modules: Pair with fail-safe modules (e.g., 6ES7521-1BL00-0AB0) for SIL3-certified safety functions or Profinet modules (6ES7155-6AU00-0CN0) for IoT-enabled predictive maintenance systems.

Application Scenarios

The Siemens 6ES74550VS000AE0 drives innovation across multiple sectors:

Pharmaceutical Batch Processing: In sterile production facilities, this module coordinates temperature-controlled reactors and CIP systems, ensuring compliance with FDA 21 CFR Part 11 regulations through audit trail logging.

Smart Grid Management: Utilities deploy the Siemens 6ES74550VS000AE0 to balance load distribution across substations, incorporating real-time data from smart meters to prevent grid overloads.

Automated Warehousing: Integrated with RFID scanners and AGVs (Automated Guided Vehicles), it optimizes inventory routing in logistics hubs, achieving 99.5% order accuracy in 24/7 operations.
