Siemens 6ES74603AA010AB0
  • Siemens 6ES74603AA010AB0 Siemens 6ES74603AA010AB0

Siemens 6ES74603AA010AB0

Brand: Siemens
Description: IM 460-3 interface module
Condition: Brand New
Certificate: COO TEST REPORT WARRANTY LETTER
Warranty: 1 year
Inventory Qty: 1
Payment Term: T/T
Shipping Port: Shenzhen

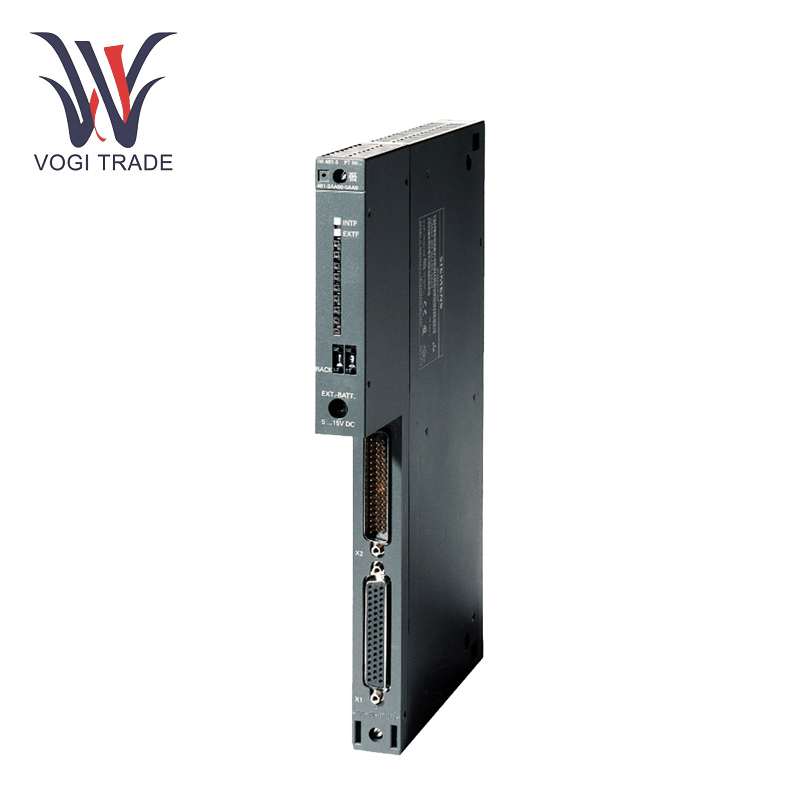

Siemens 6ES74603AA010AB0: SIMATIC S7-400, interface module Send IM 460-3 for distributed coupling up to 102 m, with C-bus.

Send Inquiry

Product Description

Manufacture
Siemens
Model Number
6ES74603AA010AB0
Catalog
ST74
Country Of Origin
Germany
HS CODE
8538900000
Dimension
2.5*29*28cm
Packing Dimension
5*31*30cm
Weight
0.63kg

Technical Parameters

Multi-Segment Optical Isolation

Enables fiber-optic communication between central and expansion racks via PCF cables (6XV7 875-5A** series), achieving 50Mbit/s bandwidth with ≤0.1dB/km attenuation tolerance at 650nm wavelength.

Dynamic Address Assignment

Automatically allocates expansion rack addresses (1-21) through optical ID coding, requiring matched IM 461-3 receiver modules with ±5ns clock synchronization accuracy.

Optical Power Budget

Supports link distances up to 100m using 200/230µm HCS fiber, with integrated RX/TX power monitors triggering SF alerts at <-18dBm receiver sensitivity thresholds.

Frame Synchronization

Hardware-based jitter reduction circuit limits cycle time deviations to ±25ns across 4 cascaded expansion racks, compatible with synchronous OB61 interrupt processing.


Key Features

The Siemens 6ES74603AA010AB0 excels in performance and adaptability:

High-Speed Data Transfer: Enables real-time communication over distances up to 102 meters via CBUS synchronization, making it suitable for large-scale automation setups such as steel mills or water treatment plants. This feature minimizes latency in critical processes like sensor data aggregation .

Redundancy Support: Designed for fault-tolerant systems, the module supports dual-channel configurations to ensure continuous operation during hardware failures. This is vital in industries like pharmaceuticals, where production downtime could result in significant financial losses .

Modular Design: Compact dimensions (29 cm × 21 cm × 2.5 cm) and DIN rail compatibility allow flexible installation in control cabinets, even in space-constrained environments. Diagnostic LEDs provide real-time status updates, simplifying troubleshooting .


Associated Equipment

Optimize the Siemens 6ES74603AA010AB0’s capabilities by pairing it with compatible Siemens components:

S7-400 CPUs: Integrate with processors like the 6ES7416-3XL04-0AB0 to manage complex automation tasks. The module’s synchronization with CPUs ensures efficient data flow in applications such as robotic assembly lines .

Redundant Racks: Use with UR2-H racks to build resilient architectures for power grid monitoring or unmanned logistics systems. This setup leverages the module’s ability to maintain communication during component failures .

Engineering Tools: Configure and monitor the module using Siemens TIA Portal or STEP 7 software, which streamlines parameter adjustments and firmware updates for enhanced system performance .


Practical Use Cases

The Siemens 6ES74603AA010AB0 is pivotal in mission-critical applications:

Automotive Manufacturing: Facilitates communication between PLCs and distributed I/O modules in welding robots and conveyor systems, ensuring synchronized operations during high-speed production cycles .

Energy Management: In substations, the module connects S7-400 CPUs to remote sensors monitoring transformer health, enabling rapid fault detection and grid stability. Redundant configurations prevent data loss during peak load conditions .

Chemical Batch Processing: Supports real-time data exchange between control units and safety valves in reactors, minimizing risks of hazardous leaks by ensuring immediate response to sensor alerts .
