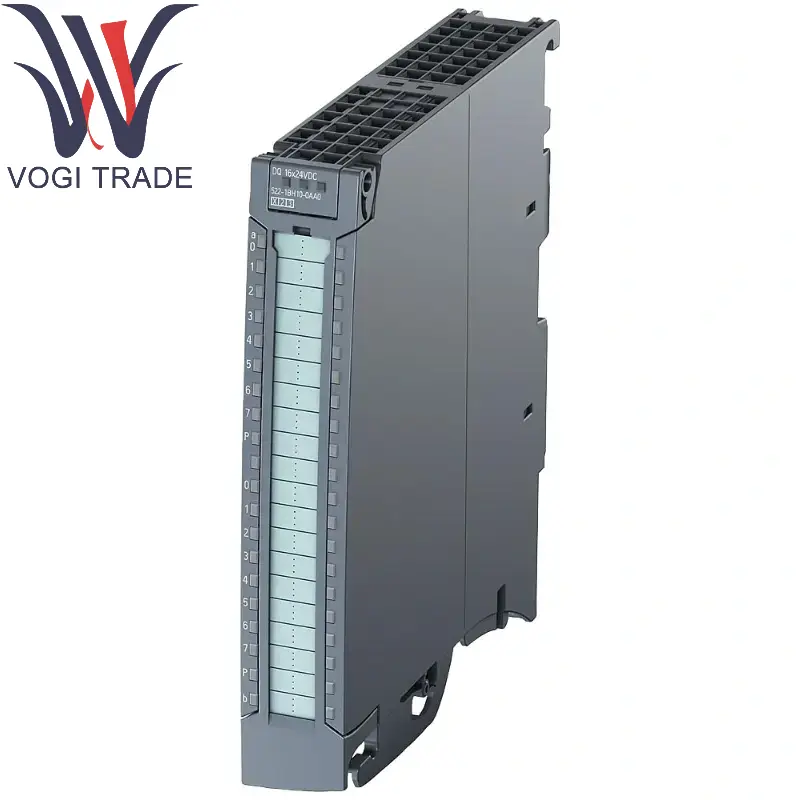

Brand: Siemens Description:Digital output module Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES7522-1BH10-0AA0 the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015.
|
Manufacture |
Siemens |
|
Model Number |
6ES7522-1BH10-0AA0 |
|
Catalog |
SIMATIC S7-1500 |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
2.5cm×14.7cm×12.9cm |
|
Packing Dimension |
4.5cm×16.7cm×14.9cm |
|
Weight |
0.23kg |
Technical Parameters
Number of channels: 16 channels, Siemens 6ES7522-1BH10-0AA0 supporting high-density output configuration.
Output voltage: 24V DC (transistor output), suitable for industrial standard loads.
Output current: 0.5A per channel, total load current ≤4A (total of all channels).
Electrical isolation: channel group isolation (4 channels per group) to enhance system safety.
Diagnostic function: Siemens 6ES7522-1BH10-0AA0 supports short circuit, wire break, overload diagnosis, and can be monitored by PLC or TIA Portal software.
Key Functional Features
Siemens 6ES7522-1BH10-0AA0 support PROFINET communication, compatible with IO device mode.
Modular design, hot-swappable (replacement during operation).
Siemens 6ES7522-1BH10-0AA0 support firmware update for easy function upgrade.
Application areas
Industrial automation: Control 24V DC loads such as relays, contactors, solenoid valves, indicator lights, etc.
Applicable to automobile manufacturing, packaging machinery, food and beverage production lines, etc.
Process control: Cooperate with PLC (such as S7-1500) to achieve logic control or distributed IO (through ET 200MP interface module).
Energy management: For switch control of power distribution system or energy monitoring equipment.
Building automation: Control low-voltage electrical devices such as lighting and ventilation equipment.
