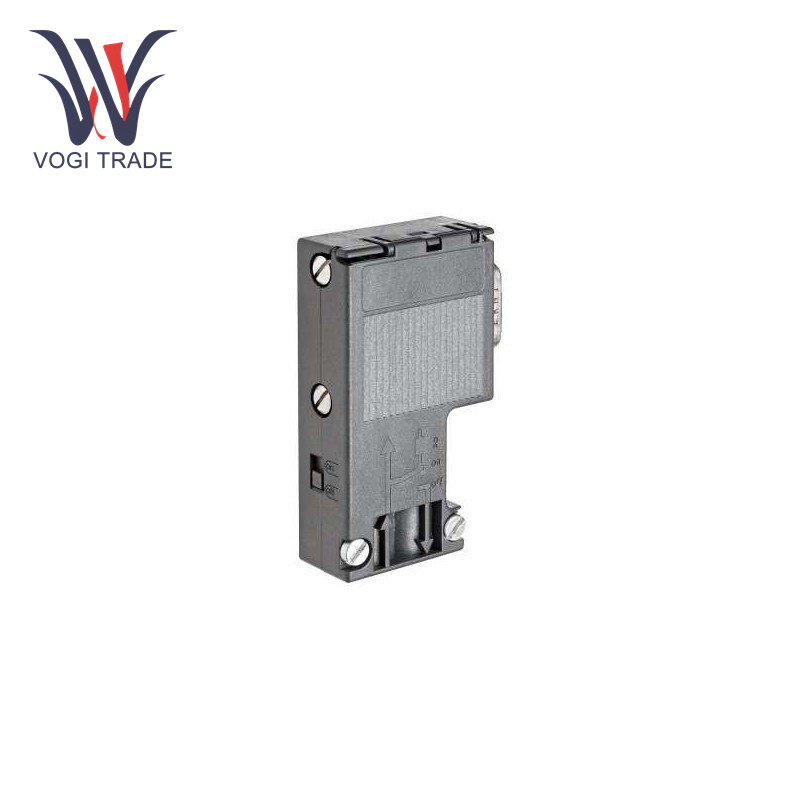

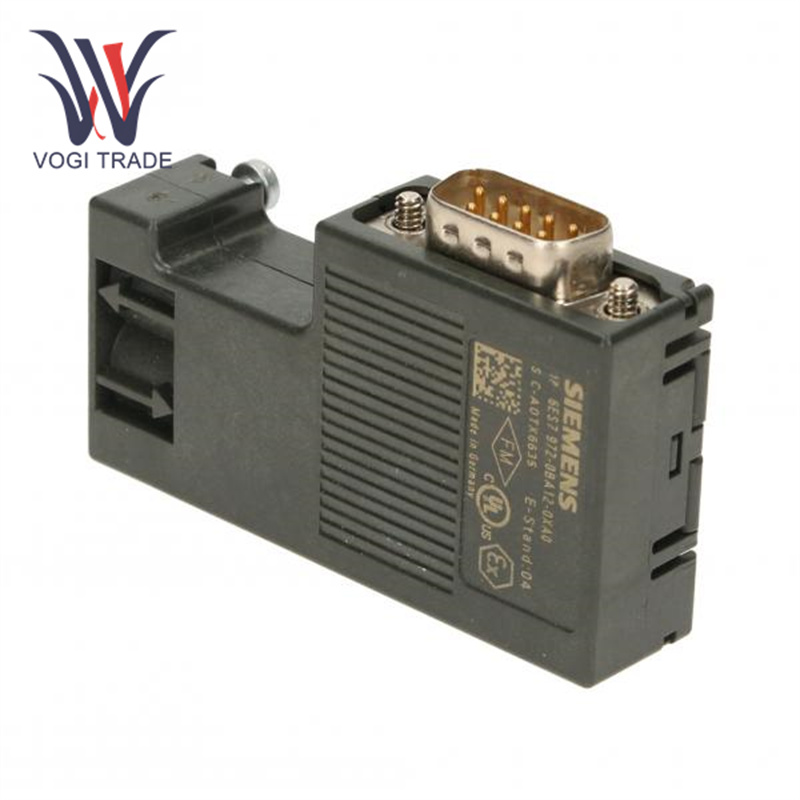

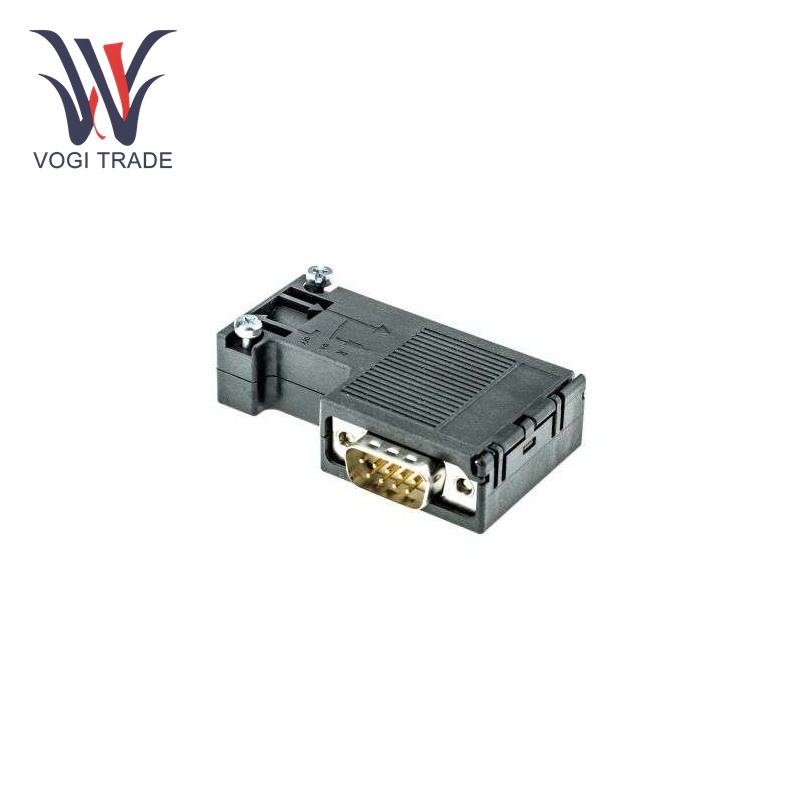

Siemens 6ES7972-0BA12-0XA0

Technical parameters

Data communication speed: The device supports data transmission speeds of up to 12 Mbit/s in the process, ensuring fast and efficient interaction between many devices in the industrial network.

Dimensions: The part size is 15.8 x 64×35.6mm (width x height x depth), and the compact size is suitable for installation in various types of control cabinets or equipment racks

Overall system weight: Low - weighing only 0.050 kg, which means that the part will not cause too much burden on the entire system.

Cable outlet: 90° cable outlet, providing wiring and installation flexibility.

Terminal resistor: Siemens 6ES7972-0BA12-0XA0 is equipped with a terminal resistor with isolation function to eliminate signal reflection and improve data transmission reliability.

Features

High compatibility: As a SIMATIC DP PROFIBUS connection plug, it is compatible with Siemens S7-300 and S7-400 series PLCs and other PROFINET devices. This allows integration into existing automation systems without downtime and is adaptable in terms of expansion or changes.

Reliable signal transmission: The isolation function of the terminal resistor is an important guarantee for maintaining the integrity of the PROFIBUS signal. The Siemens 6ES7972-0BA12-0XA0 automatically provides good signal transmission through the maximum compression, strength reduction protocol function, without reflection and interference, which can easily ensure that the selected long-distance data transmission will not have errors or communication leading to disasters.

Space saving: Siemens 6ES7972-0BA12-0XA0 small size and 90° cable outlet make it easy to install. This makes it easy to install on the DIN rail or install in the electrical cabinet, reducing installation time and effort.

Minimum space occupation: Its small form factor occupies minimal space in the control cabinet, leaving more room for other components/add-on modules. This is particularly advantageous in environments with limited space, as it may allow for use in slightly smaller production lines or renovation projects.

Greater system flexibility: With the advantage of increasing or decreasing the socket level, Siemens 6ES7972-0BA12-0XA0 is even possible to choose the position of this PG socket in the system configuration completely freely. The programming Play table can be freely matched with the corresponding peripheral devices through other interfaces according to user needs. Thus, a more tailored and flexible automation solution can be achieved.

Application scope

manufacturing plants, chemical processing plants or food and beverage plants: It enables seamless communication between programmable logic controllers (PLCs), distributed I/O modules and other intelligent devices, thereby enhancing the control and monitoring of production processes.

Process control: The process industry needs the 6ES7972-0BA12-0XA0, because precise control of factors such as temperature, pressure and flow is crucial to this industry. Thus, process automation ensures smooth data communication between sensors-actuators and controllers, enabling more precise process control, thus maintaining product quality while maintaining production efficiency.

Building Automation: Siemens 6ES7972-0BA12-0XA0 is used in building management systems for functions such as HVAC control, lighting control and access control. Example: Siemens 6ES7972-0BA12-0XA PROFIBUS connects various building automation devices to the central monitoring and control of the facility - which is essential for improving the energy efficiency of buildings and enhancing the comfort of occupants.

Power Distribution: Smart meters, circuit breakers and other power monitoring and control devices are in the operational field. This provides the ability to monitor power consumption, fault detection and remote control of power distribution equipment in real time, resulting in better grid reliability and manageability.

Rated as System: Siemens 6ES7972-0BA12-0XA0 is used in logistics, industrial automation systems (including conveyors and automated guided vehicles (AGVs)), railway signaling systems, etc. Siemens 6ES7972-0BA12-0XA0 is a component used for reliable communication in various parts of the transportation infrastructure, which helps to work easily and manage traffic effectively.
