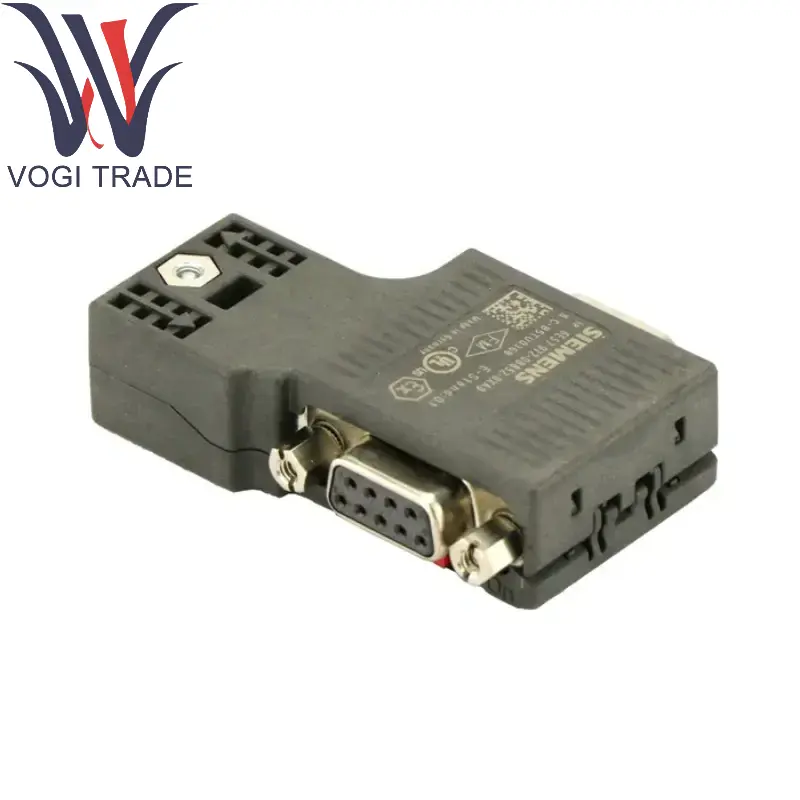

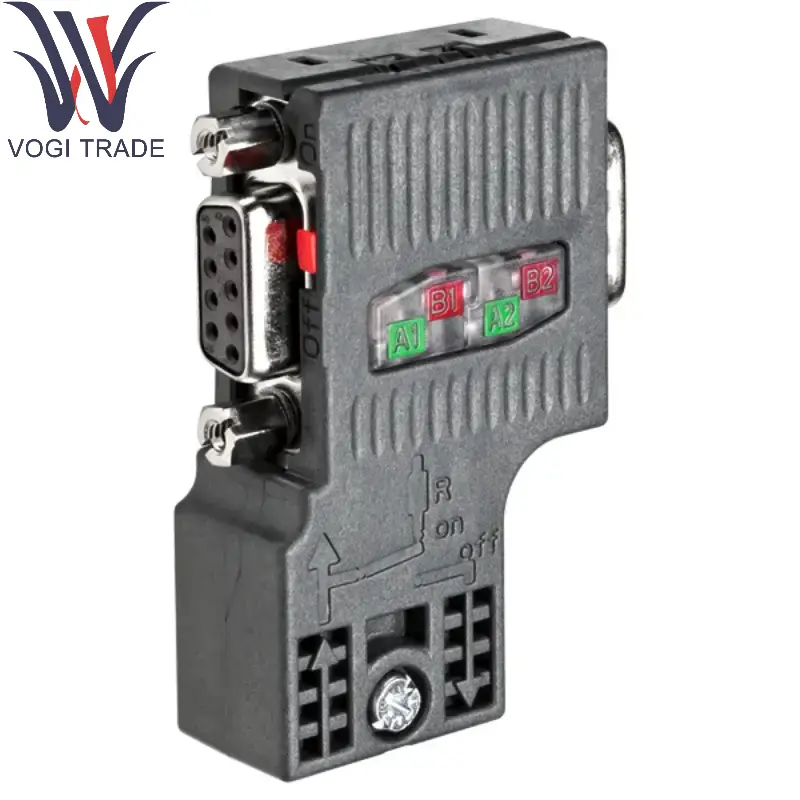

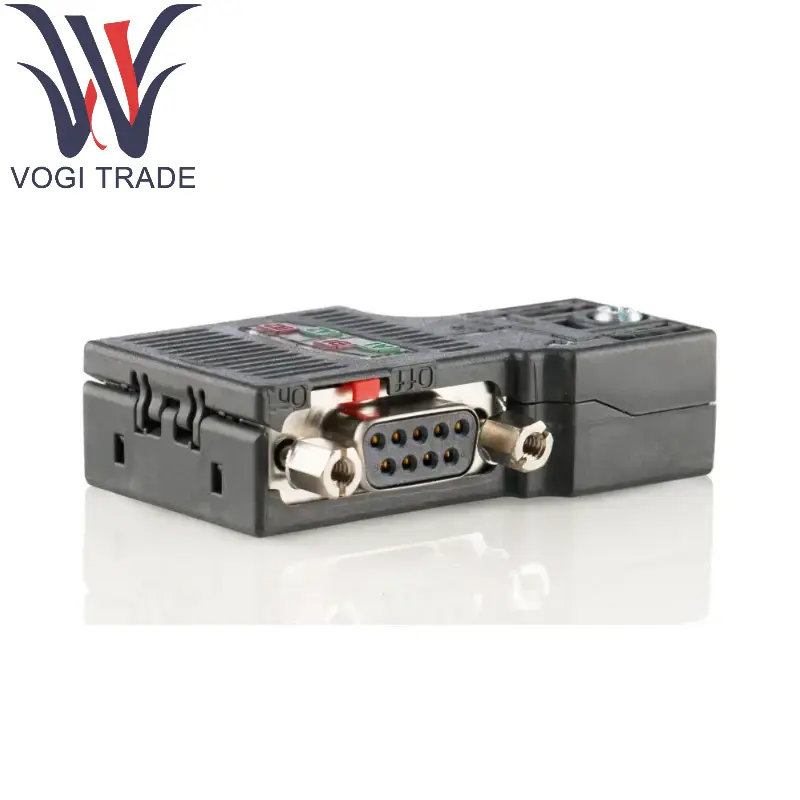

Brand: Siemens Description:RS485 bus connector Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 1 Payment Term: T/T Shipping Port: Shenzhen Siemens 6ES7972-0BB52-0XA0 SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 90° cable outlet, Insulation displacement method FastConnect, With PG receptacle
|
Manufacture |
Siemens |
|
Model Number |
6ES7972-0BB52-0XA0 |
|
Catalog |
SIMATIC DP |
|
Country Of Origin |
Germany |
|
HS CODE |
8538900000 |
|
Dimension |
1.58cm×5.9cm×3.58cm |
|
Packing Dimension |
3.58cm×7.9cm×5.58cm |
|
Weight |
0.045kg |
Product Description
Type:
Standard RS485 bus connector with PG (programming device) interface, supporting PROFIBUS DP network.
Interface type:
9-pin D-Sub (female), compliant with PROFIBUS standard.
Terminal resistor:
Built-in terminal resistor (switchable by switch), matching network impedance (150Ω).
Protection level:
Industrial-grade design, anti-electromagnetic interference (EMC), suitable for harsh environments.
Cable connection:
Siemens 6ES7972-0BB52-0XA0 Supports fast stripping technology, shielded twisted pair can be connected without special tools.
Product Details
Electrical parameters:
Transmission rate: up to 12 Mbps (PROFIBUS DP).
Working voltage: 5V (powered by bus).
Mechanical properties:
Shell material: high-strength plastic with shielding layer.
Connection method: screw terminal to fix the cable.
Compatibility:
Applicable to PROFIBUS DP devices such as SIMATIC S7-300/400 and ET 200.
Siemens 6ES7972-0BB52-0XA0 Can be used with third-party PROFIBUS devices.
Application areas
Industrial automation:
Siemens 6ES7972-0BB52-0XA0 Used for connecting PLC (such as S7-300/400), distributed I/O (ET 200) and other devices in PROFIBUS DP network.
Device networking:
Siemens 6ES7972-0BB52-0XA0 Connect drives (such as Siemens G120 inverters), HMI panels or SCADA systems.
Debugging and maintenance:
Connect programmers (such as Siemens PG or PC adapters) through PG interface for online debugging or program downloading.
Typical industries:
Manufacturing (automobiles, food packaging), energy (wind power), logistics (conveyor line control), etc.
Additional Notes
Advantages:
Simplifies network wiring and supports bus topology.
Terminal resistors reduce signal reflection and improve communication stability.
Supporting equipment:
Siemens 6ES7972-0BB52-0XA0 Need to be used with PROFIBUS cable (such as 6XV1830-0EH10).
