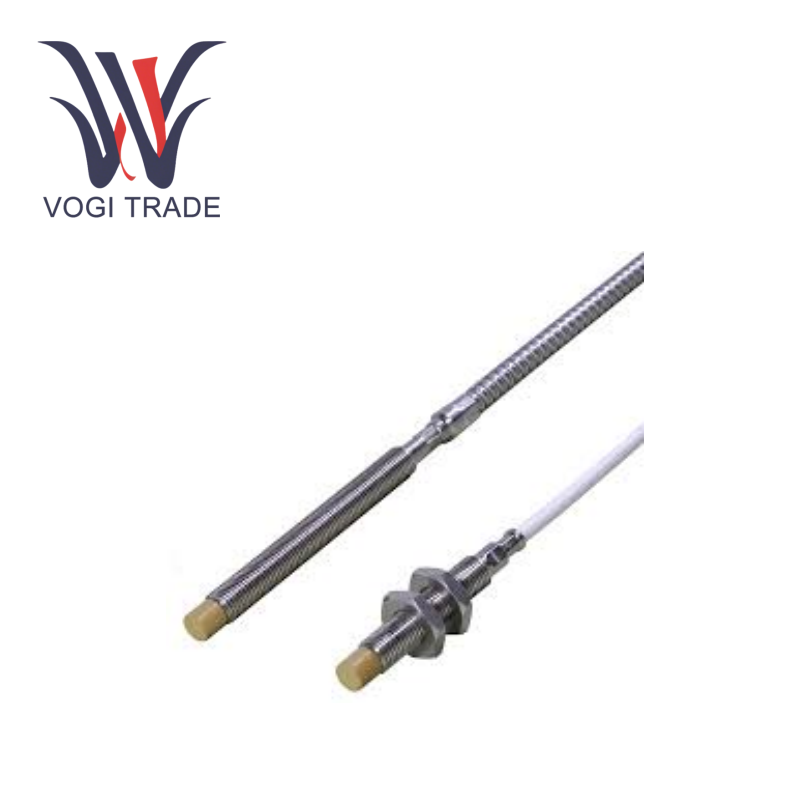

Brand: Vibro-Meter Description:Proximity Transducer Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 36 Payment Term: T/T Shipping Port: ShenZhen The Vibro-Meter TQ401 111-401-000-013-A2-B6-C030-D000-E015-F5-G000-H10 is a proximity transducer that uses non-contact eddy current technology to accurately measure vibration and displacement of rotating machinery.
|
Manufacture |
Vibro-Meter |
| Model Number |
TQ401 |
|
Ordering Number |

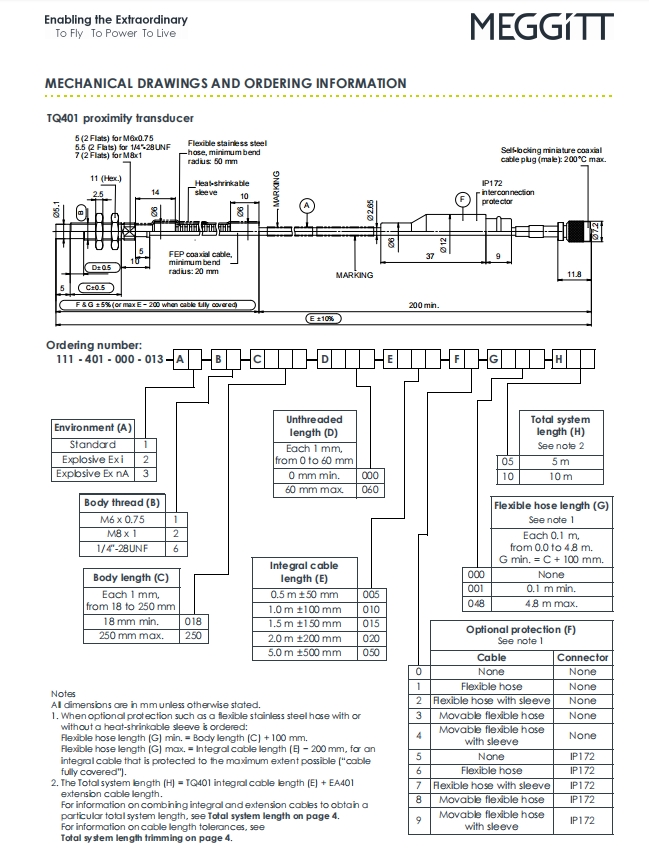

111-401-000-013-A2-B6-C030-D000-E015-F5-G000-H10 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9031809090 |
|
Dimension |
Probe: 10×60mm; Transmitter: 95×70×40mm |
|
Packing Dimension |
10×25cm |
|
Weight |
2 kg |
Core configuration
Type: Eddy current non-contact displacement sensor
Signal transmitter: IQS450
Total system length: 10 meters
Probe cable: 1.5 meters (option E015)
Extension cable: 8.5 meters (EA401 extension cable is required to meet the minimum 8.5 meter requirement)
Output options: Voltage output (option B6, corresponding to -1.6V to -17.6V)
Explosion-proof certification: Ex ia IIC T6 intrinsically safe (option A2, suitable for Zone 0/1/2)
Probe thread: Metric M10×1 (option C030)
Probe protection: No additional protection (option F5)
Key parameters
Measurement principle: Eddy current non-contact displacement measurement
Range: 0.2–2.2 mm (linear range)
Sensitivity: 8 mV/μm (voltage output mode)
Frequency response: DC–20 kHz (-3 dB)
Linearity: ≤±0.5% (full scale, standard calibration)
Target material: VCL 140 steel (equivalent to AISI 4140, etc.)
Probe temperature resistance: -40°C to +180°C (long term)
+220°C (short term survival)
Transmitter temperature resistance: -35°C to +85°C
Probe protection level: IP68 (head)
System certification: ATEX/IECEx/CSA/KGS/Rosstandard
Application scenarios
Rotating machinery shaft vibration monitoring (steam turbines, compressors, pumps, etc.)
Axial displacement and clearance measurement
Hazardous areas (explosion-proof certification)
Compatible with VM600/VibroSmart monitoring system
Other instructions
Calibration requirements: Calibration with VCL 140 steel target is required in an environment of 23°C±5°C. Cable configuration: A total length of 10 meters is achieved by combining a probe cable (1.5 meters) + an extension cable (8.5 meters).
Interchangeability:TQ401 111-401-000-013-A2-B6-C030-D000-E015-F5-G000-H10 all components of the system (probe, cable, transmitter) are interchangeable.
