TQ402 111-402-000-013 A1-B1-C075-D000-E050-F2-G050-H05

Product Overview

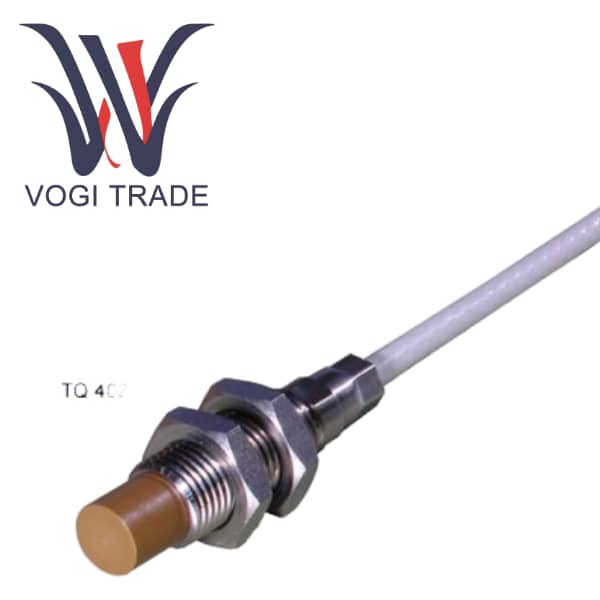

The TQ402 111-402-000-013 A1-B1-C075-D000-E050-F2-G050-H05 is a non-contact proximity sensor in the vibro-meter product line, specifically designed for high-precision measurement of relative displacement, vibration and position in rotating machinery. When paired with the IQS900 signal regulator and the EA402 extension cord, it forms part of the calibration measurement system. This system is widely applied in key applications in power generation, oil and gas, and industrial fields for mechanical protection and condition monitoring.

Product Specifications & Parameters

Order Number      111-402-000-013-A1-B1-C075-D000-E050-F2-G050-H05

A1             Standard Environment (Non-hazardous area)

B1             M10 × 1 metric thread

C075         Vehicle length = 75 millimeters

D000         Non-threaded length = 0 millimeters

E050         Overall cable length = 5.0m

F2             Optional protection = Flexible stainless steel hose with FEP sheath

G050         Hose length = 0.5m

H05           The total length of the system = 5 meters

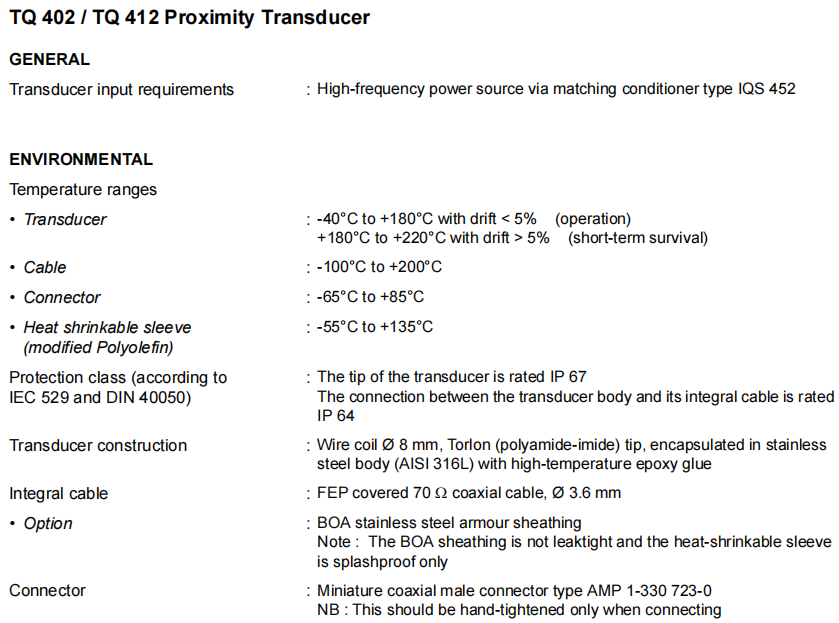

Main specifications

Measurement principle                  Eddy current

Measurement range                     2mm or 4mm                        depending on the configuration of IQS900

Sensitivity                                   8mv /µm or 4mv /µm             voltage output

                                                 2.5µA/µm or 1.25µA/µm         current output

Frequency response                    DC to 20khz                           -3 dB

Operating temperature                -40°C to +180°C                    Short-term survival temperature up to +220°C

Linearity                                    See the performance curve      pages 8-9

Protection grade                        IP68                                      sensor tip and cable

Connector                                 Self-locking micro coaxial

Product Functional Features

Non-contact high-precision measurement based on the eddy current principle

The core technology is based on the principle of electromagnetic induction. The coil inside the sensor probe generates a high-frequency electromagnetic field. When approaching a metal target, eddy currents will be induced on the target surface, thereby affecting the impedance of the coil. This impedance change is measured by the IQS900 signal conditioner and linearly converted into a voltage or current signal proportional to the gap.

The core advantage lies in its complete non-contact nature, which avoids friction and wear with the tested part, and has an infinitely long theoretical service life. TQ402 111-402-000-013 A1-B1-C075-D000-E050-F2-G050-H05 is especially suitable for measuring the vibration and displacement of high-speed rotating machinery, without imposing additional load or wear on the operating equipment.

Outstanding environmental adaptability and robustness

The ultra-wide operating temperature range enables the sensor body to operate within a temperature range of -40°C to +180°C, and it can withstand up to 220°C in the short term. This enables Proximity Transducers to be directly installed near high-temperature components such as steam turbines and gas turbines without the need for complex cooling systems.

The robust physical structure features a probe head made of Torlon® (polyamide-imide) material, a high-performance engineering plastic with extremely high mechanical strength, wear resistance and high-temperature resistance. The shell is made of AISI 316L stainless steel, providing excellent corrosion resistance.

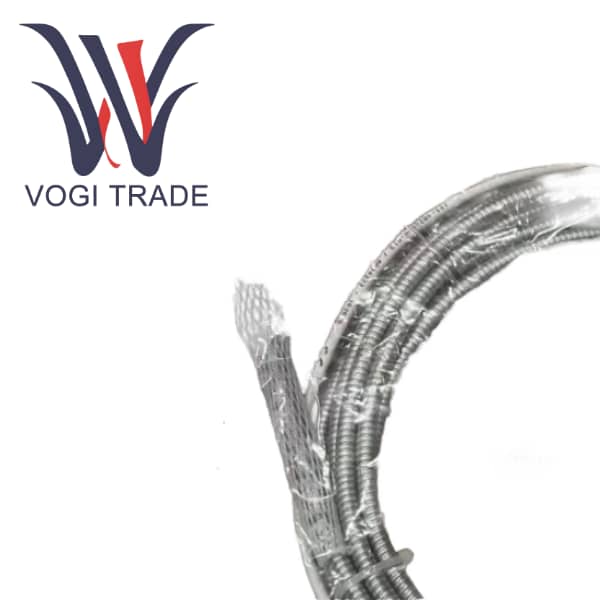

The powerful protection capability is achieved by the sensor head and integrated cable reaching an IP68 protection level, which is completely dust-proof and can be immersed in water for a long time. It can cope with harsh industrial environments such as moisture, oil stains, and dust. The optional flexible stainless steel hose with FEP sheath for TQ402 111-402-000-013 A1-B1-C075-D000-E050-F2-G050-H05 provides additional protection against impact, pressure, scratches and chemical corrosion.
