Brand: Vibro-Meter Description:Proximity Transducer Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty:9 Payment Term: T/T Shipping Port: ShenZhen TQ412 111-412-000-01-A2-B1-E010-FOG000-H10 is a signal conditioner that ensures the stability of critical rotating equipment under harsh working conditions.
|
Manufacture |
Vibro-Meter |
|
Model Number |
TQ412 |
|
Ordering Number |
111-412-000-013-A2-B1-E005-F0-G000-H10 |
|
Catalog |
VM600 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
9031809090 |
|
Dimension |
19 × 82 mm |
|
Packing Dimension |
10×25×18cm |
|
Weight |
0.48 kg |
This model has intrinsically safe explosion-proof certification (Ex ia IIC T6 Ga) and is suitable for Zone 0/1/2 explosive gas environments. Core parameters include 2mm linear range (output -15.5 to -20.5mA), DC to 20kHz wide frequency response, -40 to +180℃ wide operating temperature range and IP68 protection level (probe head).
Advantages and features
The advantages of Meggitt Vibro-Meter TQ412 111-412-000-01-A2-B1-E010-FOG000-H10 are that the sturdy stainless steel body and Torlon® probe tip ensure durability under harsh working conditions, and the temperature compensation design ensures the stability of measurement accuracy.

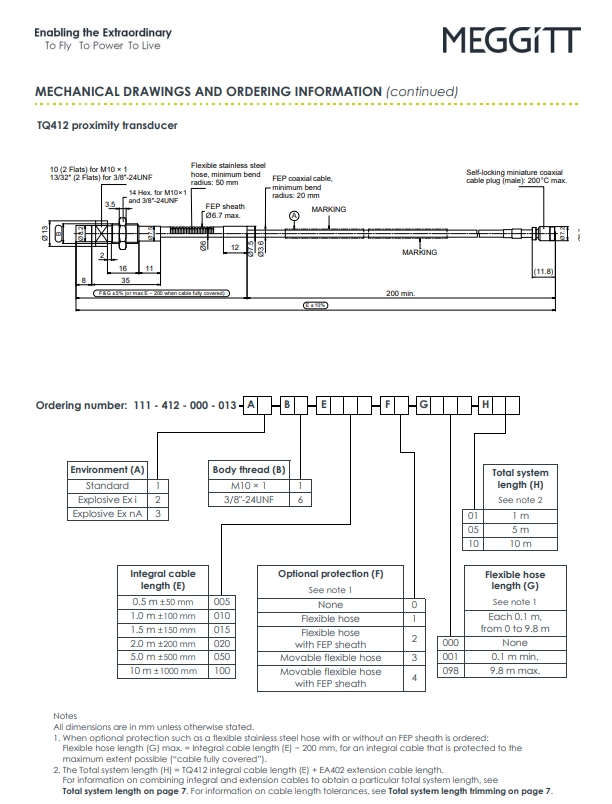

The reverse mounting feature (TQ412) provides a flexible mechanical layout solution, and the 10-meter total system length (1 meter probe body cable + 9 meters EA402 extension cable) meets the needs of long-distance monitoring.
The Vibro-Meter 111-412-000-01-A2-B1-E010-FOG000-H10 is particularly suitable for the protection and condition monitoring of critical rotating equipment such as steam/gas turbines and compressors. It is an ideal choice for integration into the VM600/VibroSmart® system in accordance with API 670 standards.
