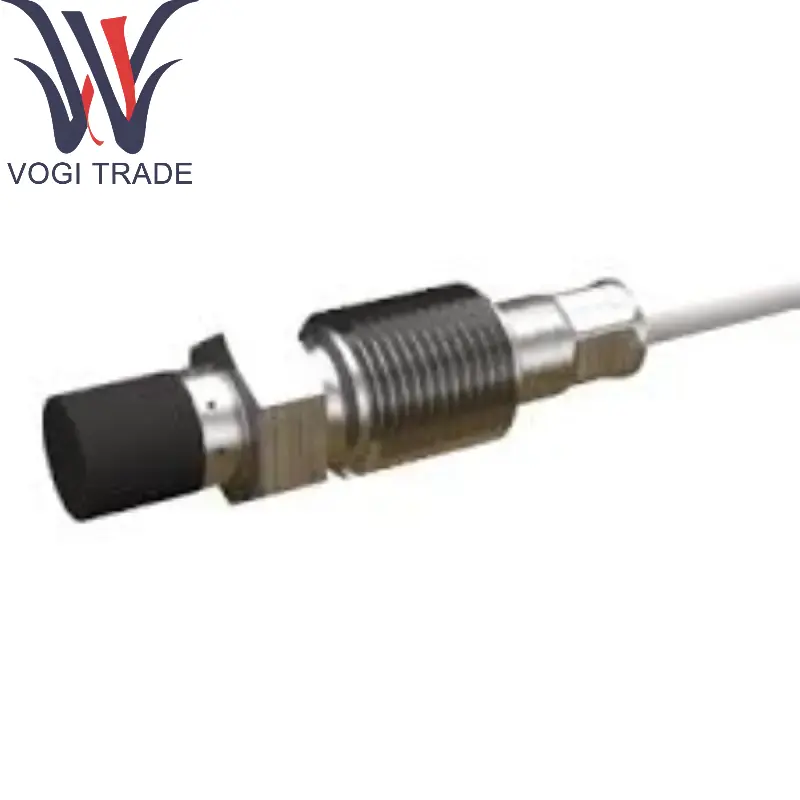

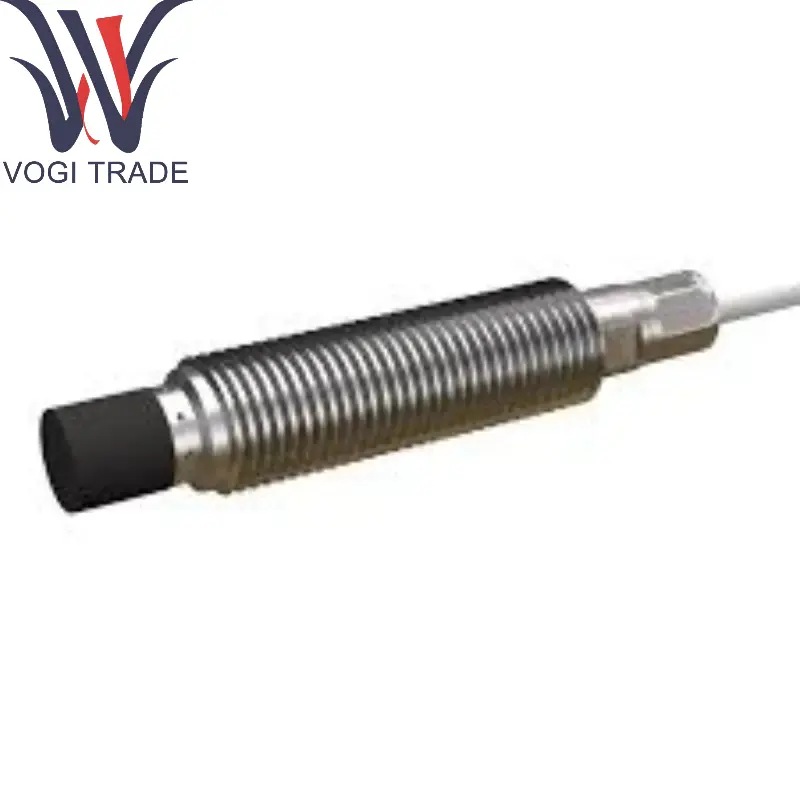

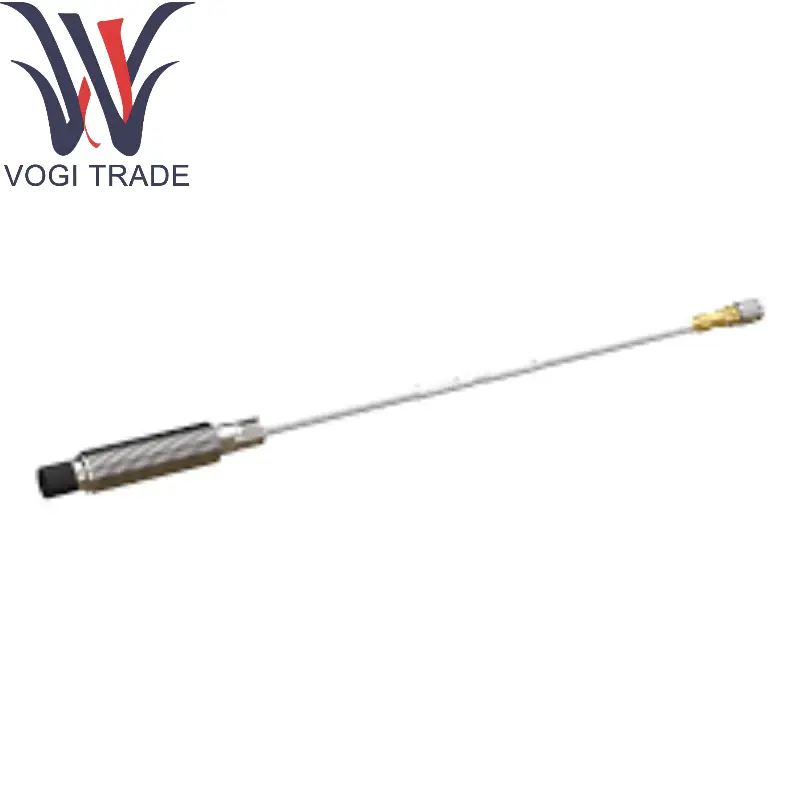

Brand: Vibro-Meter Description:proximity sensor Condition: New Warranty: 1 year Inventory Qty: 1 Payment term: T/T Shipping Port: ShenZhen TQ902 111-902-000-011-A5-B1-C160-D2-E5000-F0-G0-H05 along with proximity transducer measures the shaft vibration without any contact.
|
Manufacture |
Vibro-Meter |
|
Model Number |
TQ902 |
|
Ordering Number |
111-902-000-011-A5-B1-C160-D2-E5000-F0-G0-H05 |
|
Catalog |
Vibration Monitoring |
|
Country Of Origin |
Switzerland |
|
HS CODE |
8537109090 |
|
Dimension |
8537109090 |
|
Packing Dimension |
28.2cm*14.5cm*4cm |
|
Weight |
0.3kg |
Product Details
Basic Parameters
Model: TQ902
Order Number: 111-902-000-011
Configuration Code: A5-B1-C160-D2-E5000-F0-G0-H05
A5: Sensor Type
B1: Mounting Method
C160: Measuring Range
D2: Output Signal Type
E5000: Sensitivity (e.g. 5000 mV/g).
F0/G0: Filter or Frequency Response Option.
H05: Cable Length or Connector Type
Technical Characteristics
Measurement Type: Vibration
Range: Depends on Configuration
Output Signal: Vibro-Meter TQ902 Analog Signal or Digital Signal
Frequency Response: Depends on Configuration (e.g. 0.5 Hz~10 kHz).
Working temperature: usually -40°C ~ +85°C
Protection level: IP67/IP68
Power supply: usually requires external power supply
Brand background
Vibro-Meter is a brand of Meggitt Group, focusing on vibration monitoring solutions in the fields of aviation, energy and industry, known for its high accuracy and reliability.
Application field
Typical industry
Aerospace engine: Vibro-Meter TQ902 111-902-000-011-A5-B1-C160-D2-E5000-F0-G0-H05 monitors turbine and compressor vibration.
Energy: gas turbine, steam turbine, wind turbine.
Industrial machinery: pumps, compressors, motors, gearboxes.
Rail transportation: train bearing and transmission system monitoring.
Applicable scenarios
Key equipment health monitoring
Fault diagnosis and preventive maintenance.
High Vibration Environment
Related Products
Equipment for Use
Data Acquisition System
VM600 or VibroSight: Meggitt's online monitoring system for real-time analysis of vibration data.
NI ComactDAQ: Vibro-Meter TQ902 111-902-000-011-A5-B1-C160-D2-E5000-F0-G0-H05LabVIEW-compatible acquisition module for analog signal processing.
Signal Conditioning Module
Vibro-Meter Preamplifier: Enhances signal transmission quality.
Mounting Accessories
Magnetic Base or Threaded Adapter.
Software Tools
VibroSight Software: Vibro-Meter TQ902 111-902-000-011-A5-B1-C160-D2-E5000-F0-G0-H05For data visualization, alarm setting, and trend analysis.
Alternative or complementary models
TQ401: Vibration sensor with a smaller range.
TQ308: Model for high temperature environments.
For more information about TQ902 datasheet, please click on the datasheet below.
