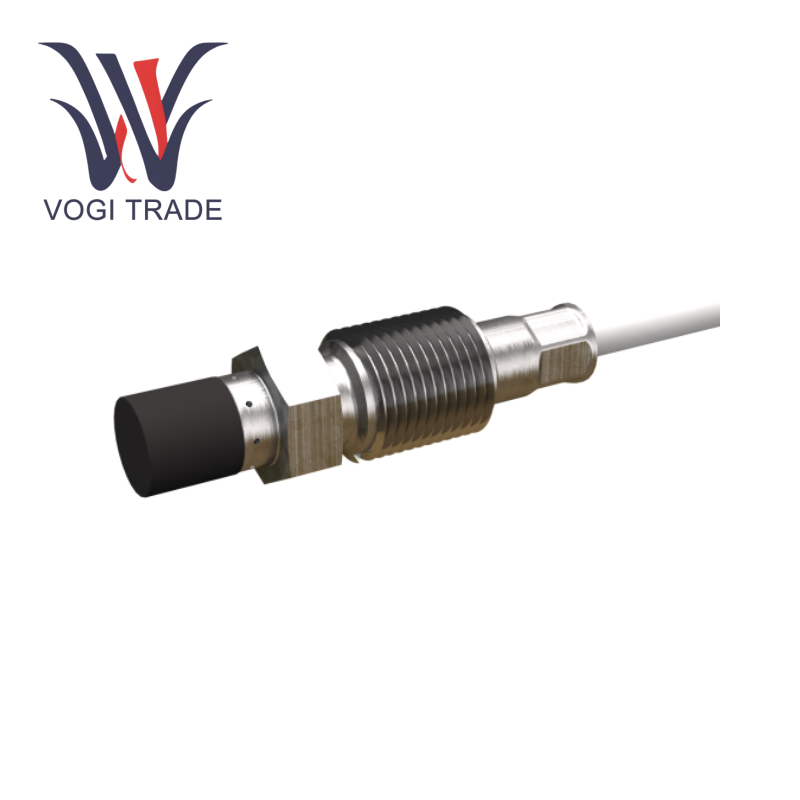

Brand: Vibro-Meter Description:Proximity Sensor Condition: Brand New Certificate: COO TEST REPORT WARRANTY LETTER Warranty: 1 year Inventory Qty: 6 Payment Term: T/T Shipping Port: ShenZhen TQ912 111-912-000-011-A1-B1-E1000-F0-G0-H10 is a proximity sensor that adopts a reverse installation structure and achieves micron-level precision measurement through the principle of electromagnetic induction.
|
Manufacture |
Vibro-Meter |
|
Model Number |
TQ912 |
|

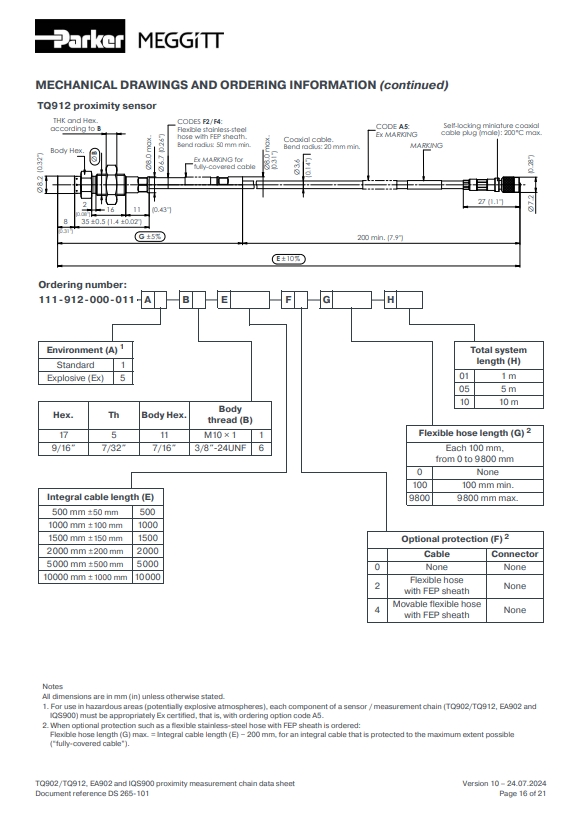

Ordering Number |
111-912-000-011-A1-B1-E1000-F0-G0-H10 |
|
Country Of Origin |
Switzerland |
|
HS CODE |
90318090 |
|
Dimension |
10×10×35 mm |
|
Packing Dimension |
120 mm × 80mm ×40mm |
|
Weight |
0.4 kg |
Core parameters
Linear range: 2 mm (0.15–2.15 mm)
Sensitivity: 8 mV/μm (voltage output)
Frequency response: DC–20 kHz (-3 dB)
Operating temperature: -40°C ~ +180°C (short-term 220°C/2h)
Protection level: IP68 (probe)
Pressure resistance: 6 bar (100 psid)
Material: AISI 316L stainless steel housing + PPS high-temperature engineering plastic probe
Installation: Metric thread (reverse installation)
Shock resistance: 15g (11ms half-sine wave)

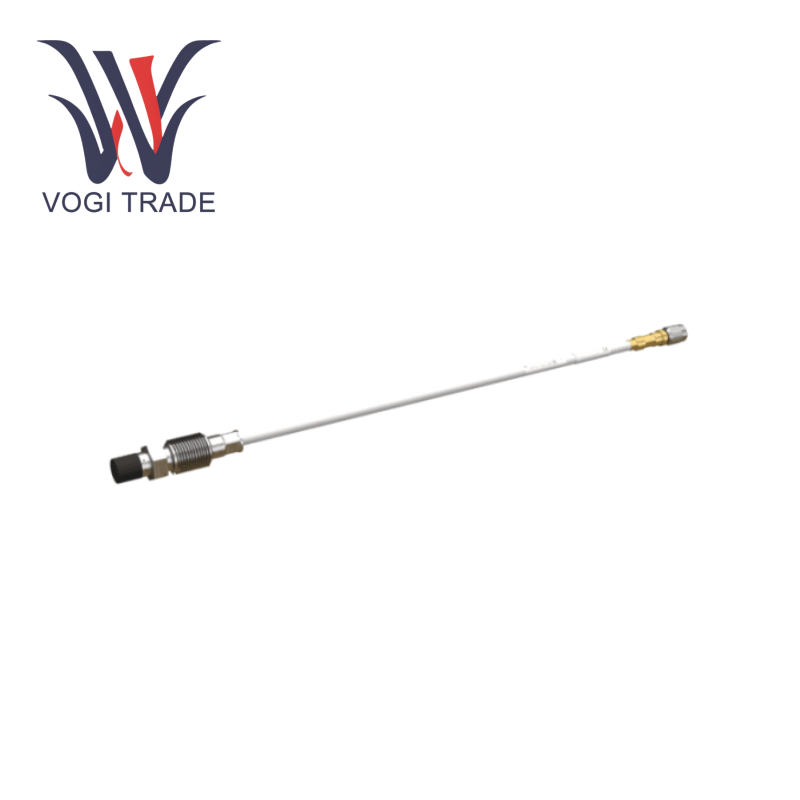

Cable length: 1 m integral cable (no extension)
Output signal: original voltage (requires IQS900 conditioner)
Certification standards: - API 670 5th edition
IECEx/ATEX explosion-proof (Ex version components are required)
- SIL 2 (IEC 61508)
core advantages
1. Reliable operation in extreme environments
180°C continuous operation + 220°C short-term survival, suitable for gas turbine exhaust section, hydraulic system high temperature area.
IP68 protection + FEP sheath (optional) resists oil, chemical corrosion and high-pressure flushing.
2. Micron-level accuracy guarantee
Temperature compensation algorithm eliminates -30°C~150°C drift (error <5%) to ensure long-term stability.
20 kHz wide frequency response captures high-frequency vibration events (such as early harmonics of bearing failure).
3. Safety and diagnostic integration
When paired with diagnostic IQS900, TQ912 111-912-000-011-A1-B1-E1000-F0-G0-H10 exceeds the limit (<-20.5mA or >-15.5mA) to indicate chain fault (sensor/cable/conditioner) in real time.
SIL 2 "design level" certification, directly used in functional safety systems (such as overspeed protection ODS).
4. Modular and fast upgrade
Fully interchangeable components can directly replace traditional TQ4xx systems (such as IQS900 replacing IQS45x).
TQ912 111-912-000-011-A1-B1-E1000-F0-G0-H10 supports on-site chain length fine-tuning (±0.1m electrical compensation) to optimize system response.
Typical application scenarios
Energy and power: Steam turbine shaft vibration monitoring, gas generator axial displacement protection
Oil and gas chemical industry: Centrifugal compressor bearing vibration analysis, pump seal clearance control
