TQ912 111-912-000-011 A1-B6-E5000-F2-G4800-H05

Product Overview

The TQ912 is a high-performance, non-contact proximity sensor in the Vibra-Meter ® product line of Parker Meggitt, specifically designed for reverse-mounted applications. It operates based on the eddy current principle and is used to precisely measure the relative displacement between the sensor probe and the metal target. This sensor is usually used in combination with the EA902 extension cable and the IQS900 signal conditioner to form a complete, calibrated proximity measurement chain.

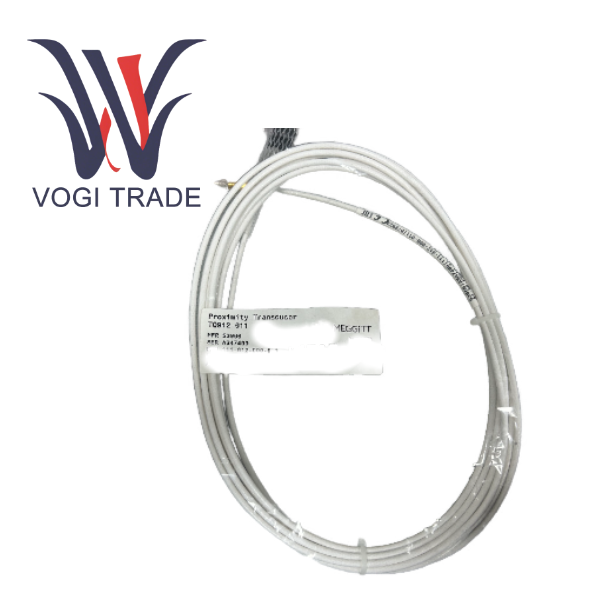

The specific model 111-912-000-011-A1-B6-E5000-F2-G4800-H05 introduced this time integrates a 5-meter-long body cable and is equipped with a flexible stainless steel sheath for protection. It is suitable for standard (non-explosion-proof) industrial environments and is an ideal choice for the protection and condition monitoring of rotating machinery.

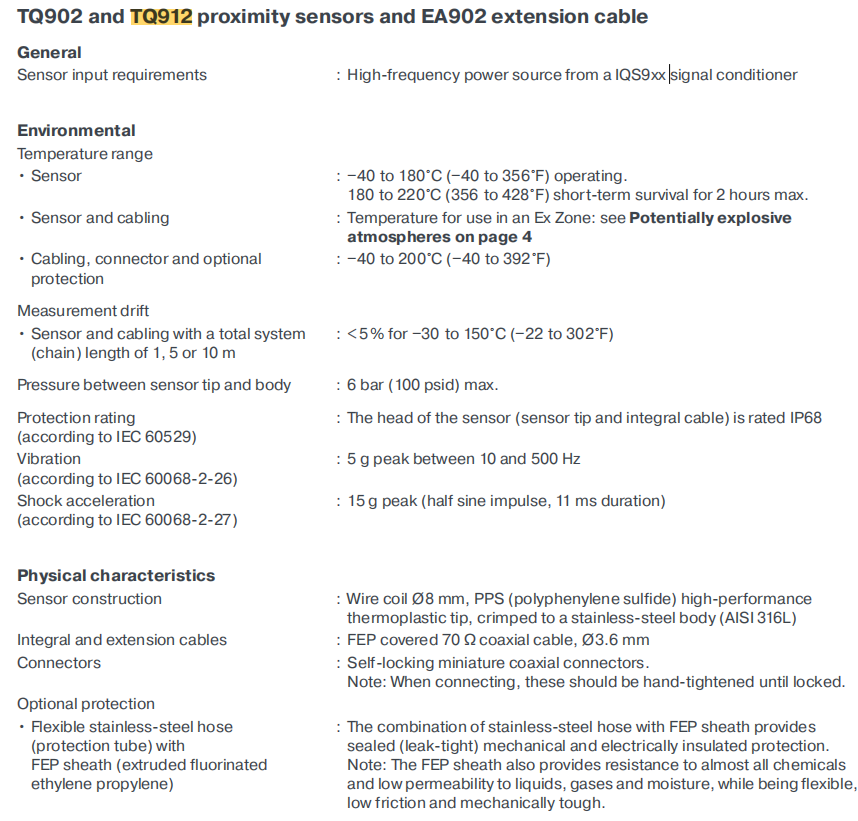

Product specifications and parameters

Working principle                                 Eddy current effect

Linear measurement range                   2mm or 4mm (depending on the configuration of the IQS900 signal conditioner that comes with it)

Frequency response                             DC to 20 kHz (~3 dB)

Temperature range

Operating temperature                         -40 °C to +180°C

Short-term tolerance                            Up to 220°C, lasting for up to 2 hours

The length of the main body cable (E)    5,000mm ± 500 mm

Total system length (H)                         5 meters

Protection grade                                   The sensor head (probe and body cable) reaches IP68

Thread specification (B6)                       1/2" - 20UNF

Optional protection (F2)                         Flexible stainless steel hose with FEP sheath, length 4,800mm

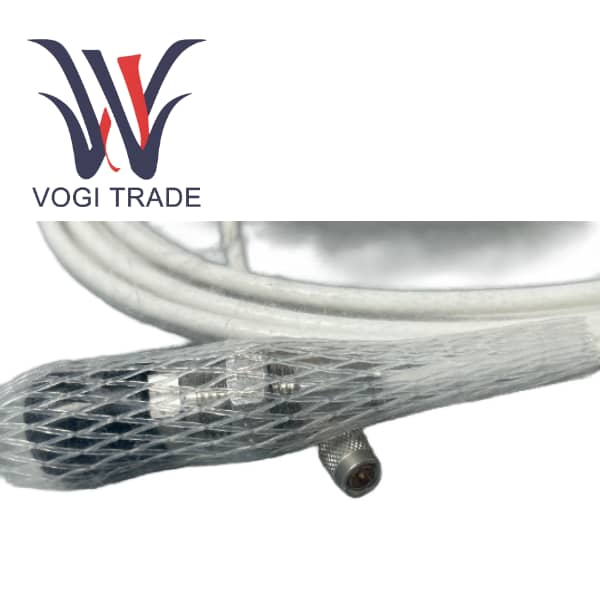

Connector                                            Self-locking micro coaxial connector (maximum temperature resistance 200°C)

Vibration resistance performance            5 g peak (10-500 Hz, in accordance with IEC 60068-2-6)

Impact resistance                                 15 g peak (half sine wave, 11 ms duration, in accordance with IEC 60068-2-27)

Pressure rating                                     Maximum 6 bar between the sensor probe and the body
