TQ912 111-912-000-01x-A1-B1-E5000-F0-G0-H05

Product Specification

TQ912 111-912-000-01x-A1-B1-E5000-F0-G0-H05 based proximity measurement chains allow contactless measurement of the relative displacement of moving machine elements, and provide an output signal proportional to the distance between the sensor tip and the target.

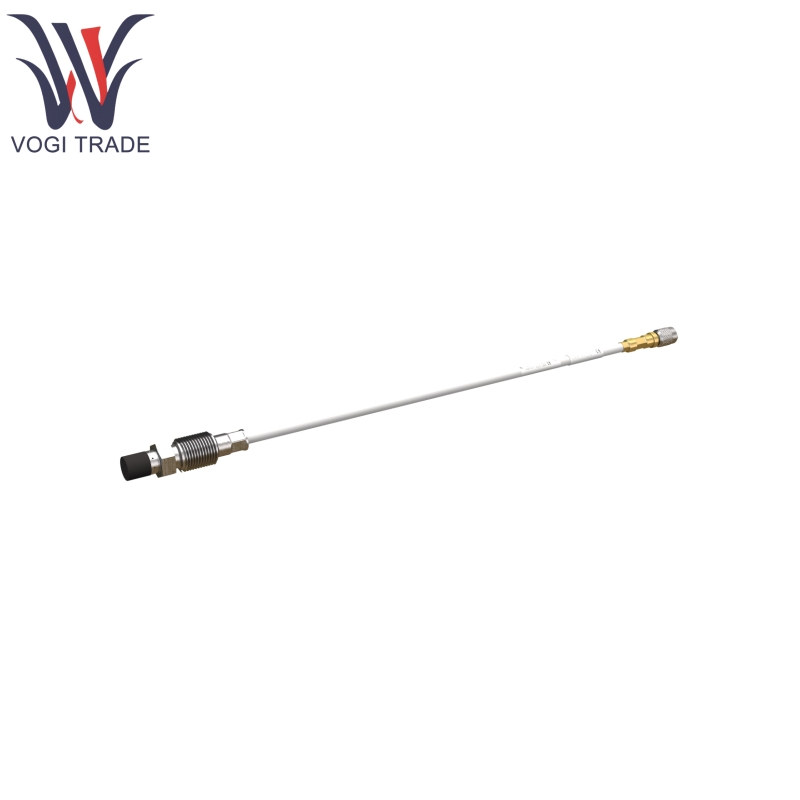

TQ912 111-912-000-01x-A1-B1-E5000-F0-G0-H05 based proximity measurement chain consists of a TQ9xx proximity sensor, an optional EA90x extension cable and a IQS900 signal conditioner, configured for a particular industrial application.

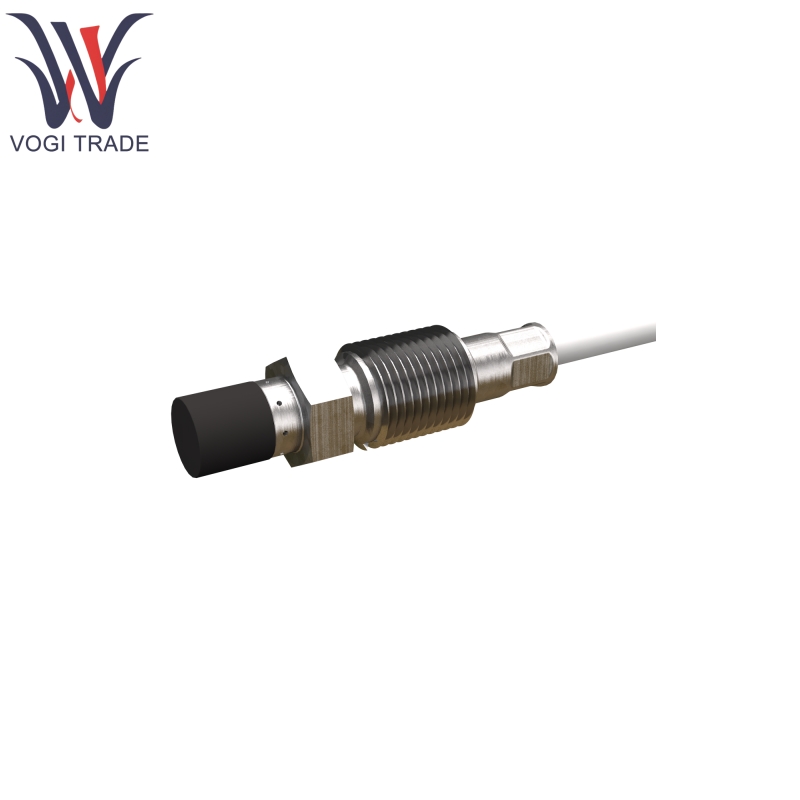

TQ912 111-912-000-01x-A1-B1-E5000-F0-G0-H05 proximity sensor has a active part which is a coil of wire that is moulded inside the tip of the device, made of PPS (polyphenylene sulfide), a high-performance, high-temperature engineering thermoplastic. The sensor body is made of stainless steel. In all cases, the target material must be metallic.

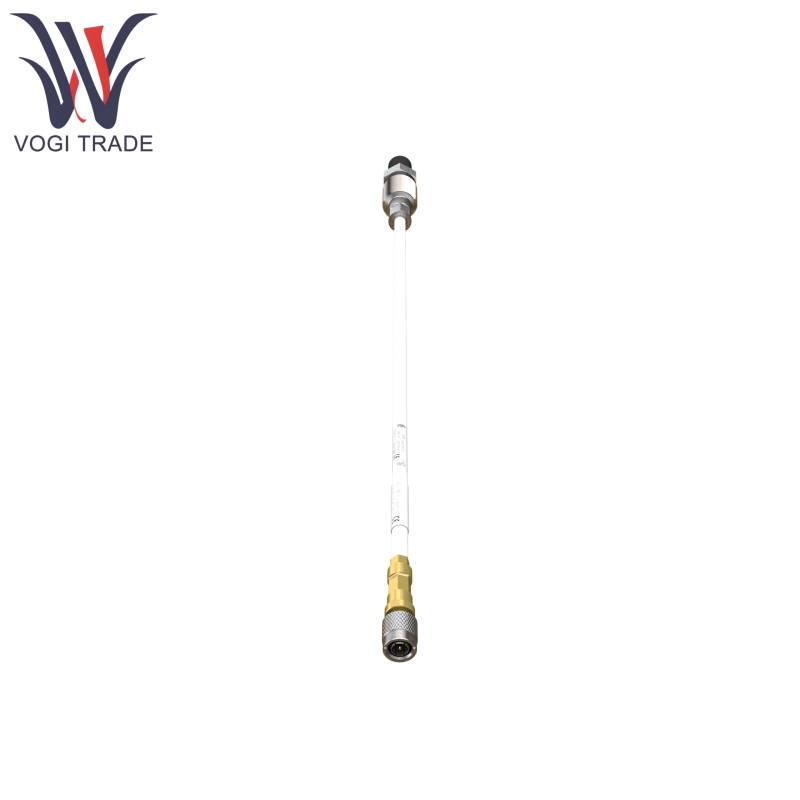

TQ912 111-912-000-01x-A1-B1-E5000-F0-G0-H05 is designed for reverse-mount applications. Sensor bodies are available with either metric or imperial threads, and feature an integral coaxial cable terminated with a self-locking miniature coaxial connector.

Product Parameters

System (chain) Calibration:

Calibration temperature: +23°C ±5°C

Target material: VCL 140 steel (1.7225)

System (chain) Length:

1 m:

1.0 m integral cable with no extension cable

5 m:

0.5 m integral cable + 4.5 m extension cable

1.0 m integral cable + 4.0 m extension cable

1.5 m integral cable + 3.5 m extension cable

2.0 m integral cable + 3.0 m extension cable

5.0 m integral cable with no extension cable

10 m:

0.5 m integral cable + 9.5 m extension cable

1.0 m integral cable + 9.0 m extension cable

1.5 m integral cable + 8.5 m extension cable

2.0 m integral cable + 8.0 m extension cable

5.0 m integral cable + 5.0 m extension cable

10.0 m integral cable with no extension cable

System (chain) Length Trimming

TSL for a 1 m measurement chain: 0.9 m min

TSL for a 5 m measurement chain: 4.4 m min

TSL for a 10 m measurement chain: 8.8 m min

Environmental

Temperature range Sensor:

-40 to 180°C (-40 to 356°F) operating

180 to 220°C (356 to 428°F) short-term survival for 2 hours max

Sensor and cabling: Temperature for use in an Ex Zone

Cabling, connector and optional protection: -40 to 200°C (-40 to 392°F)

Product Applications

Industrial Equipment Condition Monitoring:

TQ912 111-912-000-01x-A1-B1-E5000-F0-G0-H05 is applied to shaft relative vibration, dynamic clearances, and position on rotating machine, like steam, gas and water turbines, generator, turbo compressor and pump etc. It integrates into API 670 standard applications as well as safety-related applications. In the petrochemical, electric power, metallurgy and other industries, the device can monitor the operating state of the shaft, so that equipment faults and hidden dangers can be found in time to maintain safe and stable production.

Medical Robotics:

TQ912 111-912-000-01x-A1-B1-E5000-F0-G0-H05 is used by robotic system providers in surgical and rehabilitation robots like the stryker MAKO surgical robot, the Medtronic Hugo RAS surgical robot and the German Aerospace Center (DLR) surgical robot MIRO. Based on its high torque, high control precision, small size and light weight, it can fulfill the fine treatment in narrow space and the accurate personal medical services.

Emergency Rescue:

TQ912 111-912-000-01x-A1-B1-E5000-F0-G0-H05 is used in conjunction with the Gen 7 Combat Application Tourniquet (C-A-T), making it easy for first responders to carry it on duty and ensuring a quick and easy rescue when needed. Its compact design holds the tourniquet securely in place and is suitable for a wide range of law enforcement personnel, such as plainclothes and patrol officers.

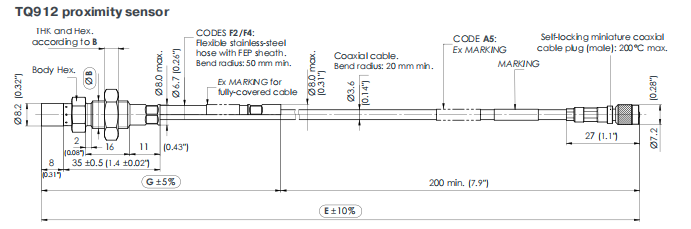

Mechanical Drawings

TQ912 111-912-000-01x-A1-B1-E5000-F0-G0-H05 Proximity Sensor

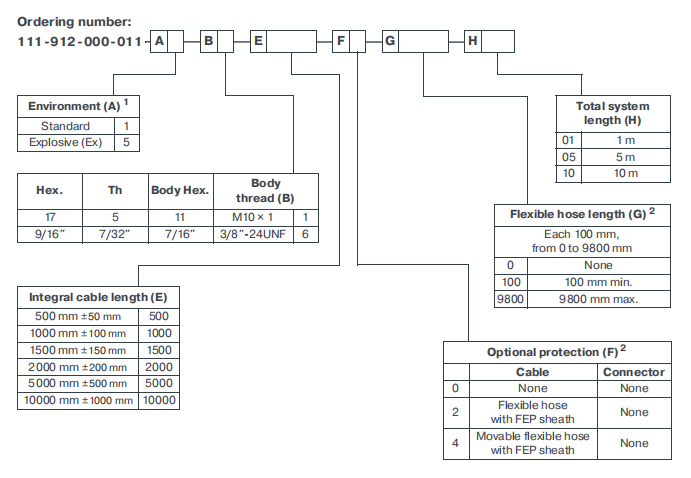

Ordering Number
