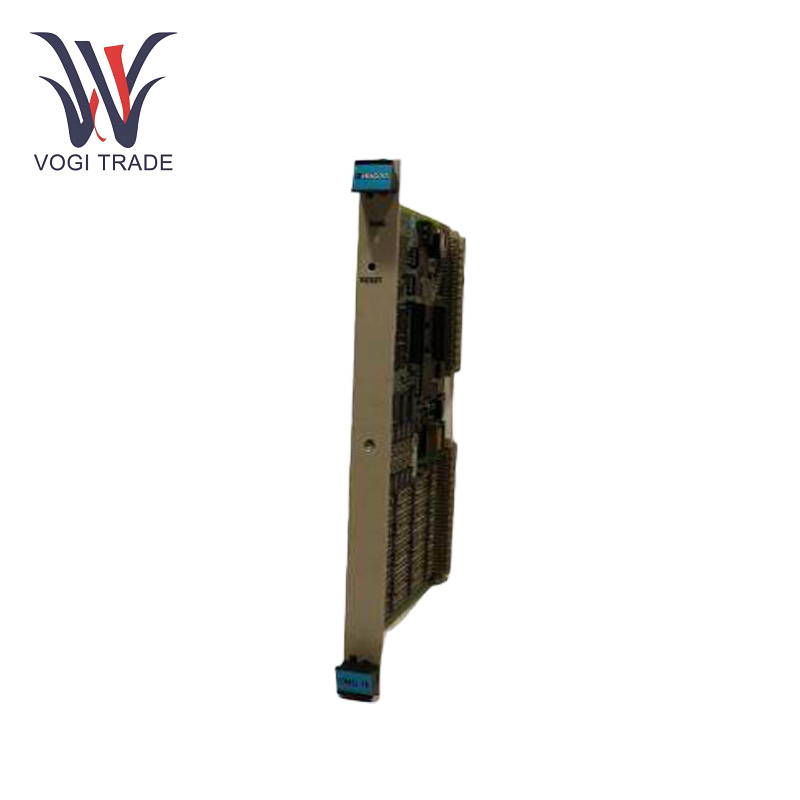

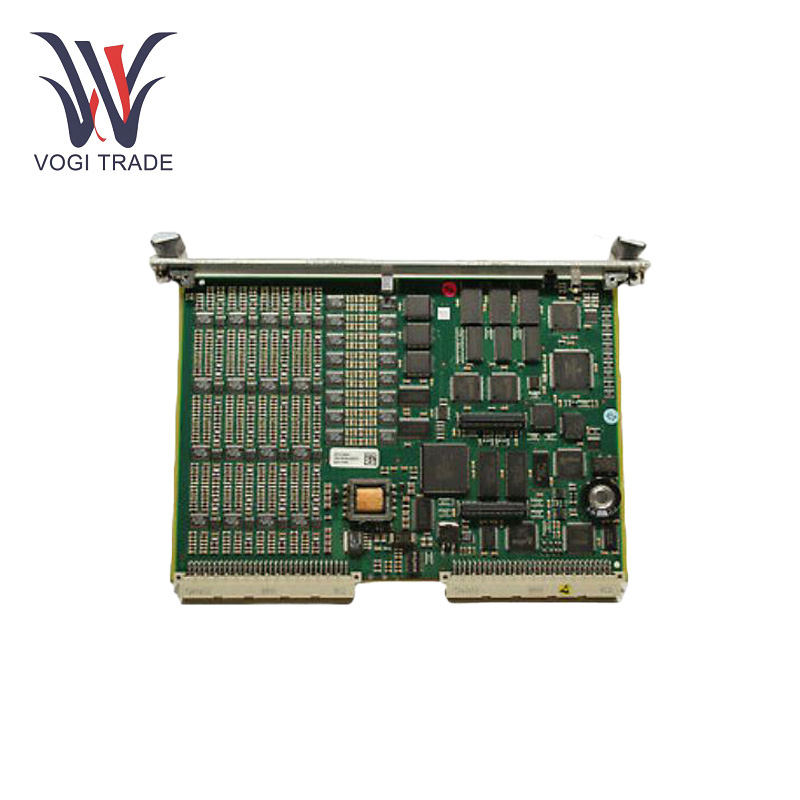

Vibration CMC16

Operating Parameters

Working voltage: 24 V DC

Output frequency: 100 Hz — 10 kHz

Weight: 1.2 kg

DPST :Relay with 4 separated paths

Operating Celsius Range: -10°C to +50°C

Operating temperature: -5°C to +50°C Storage temperature range: -20°C to +60°C

Accreditations: ISO 9001, RoHS

Product features

Varied precision vibration control: The vibration CMC16 comes with a control system designed to allow control precision of frequency and amplitude and are typically used for vibration analysis. It can be easily operated, gentle or strong vibrating is required, which can ensure the effect and quality of material treatment.

Efficient engine: Vibration CMC16 featuring high collection engine, high performance, the power output is very stable. The motor has energy saving and energy saving effects, which can save energy consumption when ensuring the normal operation of the equipment and save operating cost for the enterprise.

Durable structural design: The use of strong material and structural design can support long-term high-intensity work. The main parts of the equipment have special treatment with extremely high wear and corrosion resistance, which greatly increases the service life of the equipment.

Intelligent Monitoring and Protection: Vibration CMC16 contains an intelligent monitoring system that can in real-time monitor the working status of the equipment, including vibration frequency, motor temperature, current and so on three parameters. After abnormal conditions such as overload and overheating are detected, the equipment will automatically start the protection mechanism, stop running and issue an alarm to effectively prevent equipment damage and production accidents.

Application scope

Material conveying and sorting: Vibration CMC16 can be used for material conveying and sorting in the logistics and warehousing industry. The adjustment of vibration frequency and amplitude generates the material a certain direction and speed of movement, so that can achieve an efficient, open material delivery and sorting. Improve the logistics efficiency.

Chemical market: CMC16 is possible to stir and stir the various chemical raw materials in the process of chemical production. The uniform vibration can make sure that the materials will be fully mixing, it benefits to improve reaction efficiency and product quality. Apart from that, it is also applicable to the filling and packaging of chemical items to maintain the precision and uniformity of the filling quantity.

Metal processing: It can also be adapted for metal processing, including removing chips, burrs, and other debris from machined parts. It can also remove byproducts from metal forging and forging processes and validate the composite quality during molding. Hygienic design for the strict safety requirements in the food industry

Pharmaceutical field: In the pharmaceutical industry, Vibration CMC16can be used for screening and sorting of tablets, capsules and other medicines to ensure that the specifications and quality of the medicines meet the standards. Moreover, it is also used for the mixing and processing of pharmaceutical raw materials in order to maintain the uniformity and stability of the medicines.

Troubleshooting

Abnormal vibration: Control whether the material is overloaded. When the mass of the material is more than the highest load capacity of the gear, it is going to cause irregular vibration. It is essential to cut down the content. Check whether there is loosening or damage of vibrated parts, such as springs, bolts, etc. If so, tighten or replace damaged parts in time.

Set the use frequency and amplitude of vibration parameters, and calibrate to correct parameters to be used.

Motor is hot: Observe whether the motor cooling fan is normal. The fan should be replaced or repaired in time if there is a fault. Keep the armature clean and free from dust/debris that will impede heat dissipation. If there is too large, adjustable working parameters, or reduce the load.
