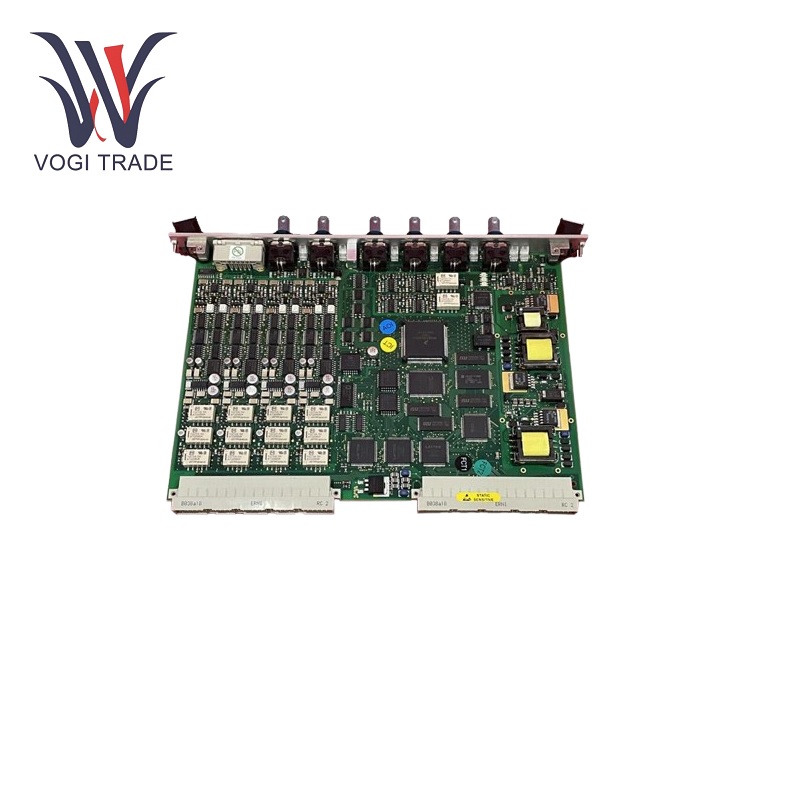

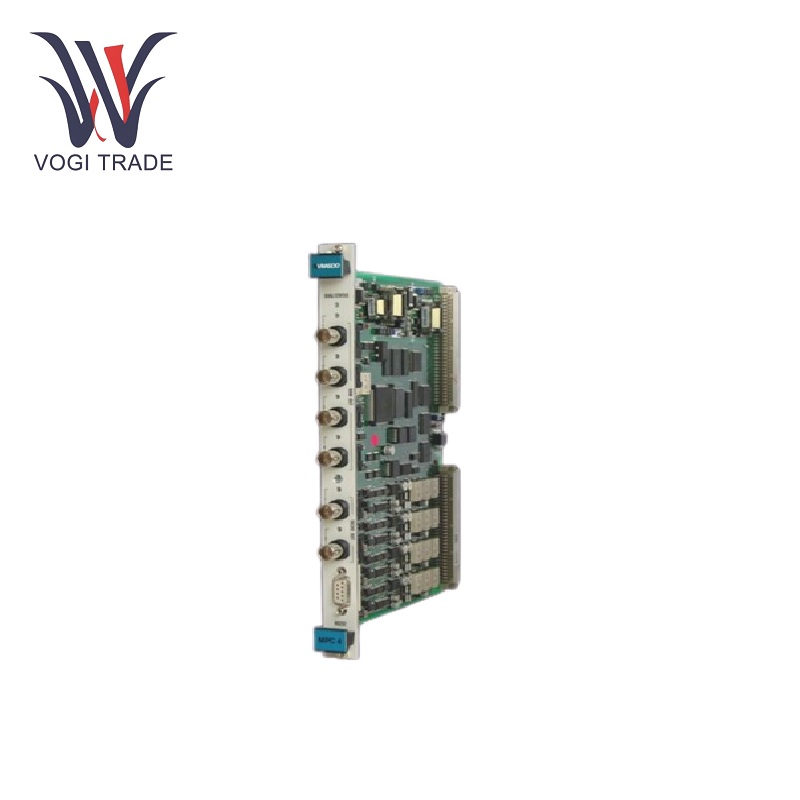

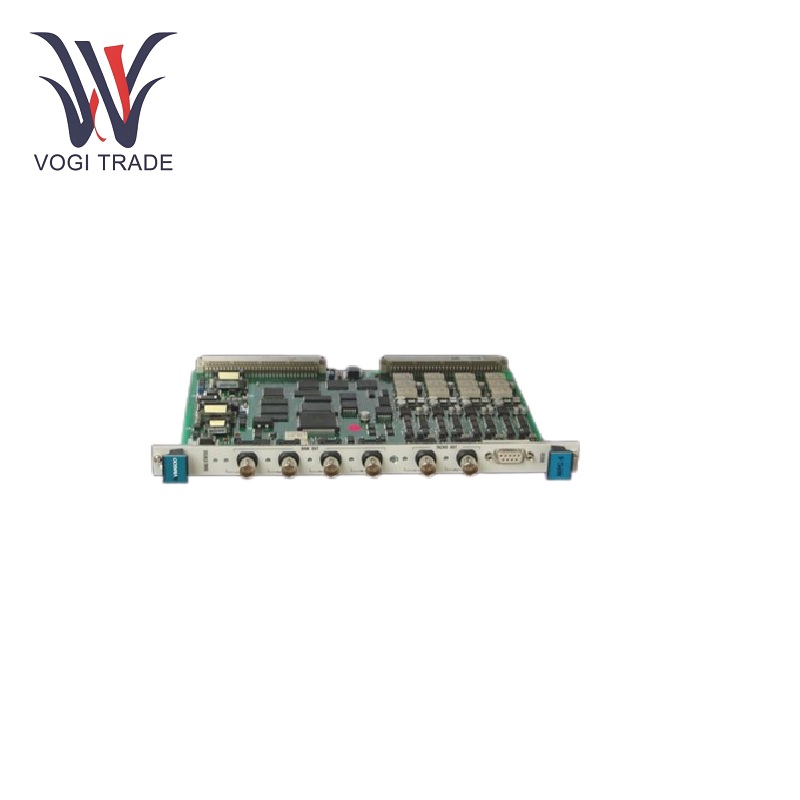

Brand: Vibro-Meter Description: Machinery Protection Card Condition: New Warranty: 1 year Inventory Qty: 35 Payment term: T/T Shipping Port: ShenZhen The Vibration MPC4 is an electro-pneumatic converter with flexible input and output signal options and easy installation and mounting.
Manufacture |
Vibro-Meter |
Model Number |
MPC4 |
Ordering Number |
200-510-071-113 |
Catalog |
VM600 |
Country Of Origin |
Switzerland |
HS CODE |
8537101190 |
Dimension |
2.2*12.4*12.6cm |
Packing Dimension |
5*15*15cm |
Weight |
0.1kg |
Usage Parameters
Input Signal: The Vibration MPC4 will accept input signals such as 4-20mA (current, I/P) or 0-10V (voltage, E/P). This means that it allows a higher range of inputs to accommodate almost all types of sensors and control systems, while also facilitating a variety of signal acquisition.
Output Signal: The pneumatic output range is 0 to 75 psi (0-5.2 bar). This pneumatic output can be used to drive a variety of pneumatic actuators and devices, providing a precisely controlled mechanical system based on the input signal received.
Power Requirements: One of the interesting aspects of the Vibration MPC4 is that it can work with an operating electrical input signal without the need for an external AC or DC power supply. This makes installation simple and avoids the system becoming complicated, making it easier for users to operate and install.
Mounting Options: The product comes with wall and DIN rail mounting brackets. The wall mount bracket can be mounted vertically or horizontally to provide installation location flexibility. Additionally, the DIN rail mounting bracket allows for easy installation using standard DIN rails (e.g. EN-50022, EN-50035 or EN-50045), making it easy to integrate into existing control panels or equipment racks.
Product Features
Signal Conversion: The main operating principle of the Vibration MPC4 is essentially to convert electrical input signals into pneumatic outputs, accurately and reliably. This feature finds use in a variety of applications in industry where pneumatic actuators are used to control mechanical motion and processes. The Vibration MPC4 converts electrical control signals into pneumatic outputs, allowing for an interface between electronic control systems and pneumatic devices, allowing for precise control and sometimes even automation.
Fast Response: The Vibration MPC4 has a fast response time because it is a very high flow device, which is a necessity for such applications, which require fast and precise control of pneumatic actuators. The fast response allows these mechanical systems to react quickly to changing input signals, improving the performance and efficiency of the control loop.
Filtration and Separation: An optional Montalvo MAF-3 air filter/oil separator can be installed on the MPC4 to remove certain unwanted substances and oil from the compressed air supply. This helps maintain the cleanliness of the pneumatic system, thereby protecting pneumatic components from sudden failures and promoting long-term reliable operation.
Simplified Installation: "Quick Disconnect" fittings for pneumatic tubing and standard DIN connectors for electrical connections simplify the installation process. This further simplifies and allows for rapid system setup, thereby avoiding installation bottlenecks and reducing the possibility of errors to a certain extent.
Application Range
Industrial Automation: Various automation systems are widely used in industrial manufacturing processes. This will connect with robotic arms, conveyors and other automated equipment and initiate the movement and positioning of mechanical parts. It converts the electrical control signals of the automation controller into pneumatic outputs and allows these systems to operate in a precise and predictable manner to improve production efficiency and product quality.
Chemical Reactions: The Vibration MPC4 plays a vital role in process control applications in chemical, pharmaceutical and food processing. It effectively controls fluid flow, valve opening and closing, and the operation of other process control elements. Precise signal conversion and fast response times make the Vibration MPC4 fully capable of keeping process parameters within the limits required by the situation, thus maintaining stability and reliability throughout the production process.
Material Handling: The Vibration MPC4 performs controller activities in automated material handling equipment, which may involve rangers, palletizers or even forklifts, while also providing loading and unloading facilities. This ensures smooth and precise control when lifting, lowering and positioning loads, thereby improving the efficiency and safety of the use of material handling equipment. In the packaging process, the role of the Vibration MPC4 is to convey precise and well-defined control signals to the pneumatic components in the filling, sealing and labeling machines to ensure accuracy and high quality assurance of packaging.
