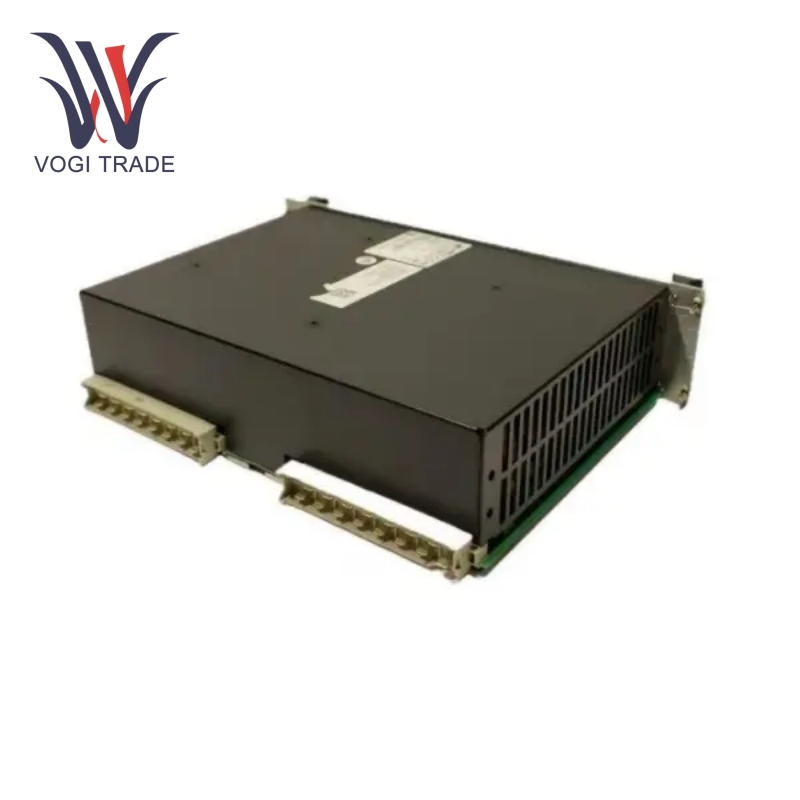

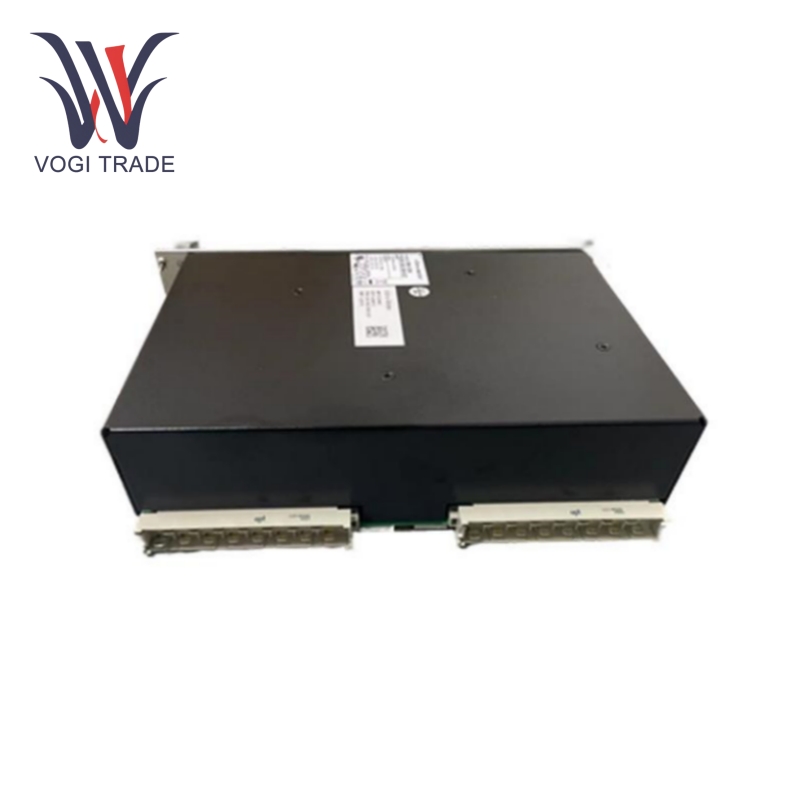

Brand: Vibro-Meter Description: Rack Power Supply Condition:New Certificate:COO TEST REPORT WARRANTY LETTER Warranty:1 year Inventory Qty:10 Payment term:T/T Shipping Port:ShenZhen Vibration RPS6U is a high-quality rack power supply designed for VM600 series machinery protection and monitoring systems, featuring stable power output, compact size and redundant configuration options.
Manufacture |
Vibro-Meter |
Model Number |
RPS6U |
Ordering Number |
200-582-200-021 |
Catalog |
rack power supply |
Country Of Origin |
Switzerland |
HS CODE |
8517795000 |
Dimension |
6*20*27 CM |
Packing Dimension |
8*22*30 CM |
Weight |
0.8kg |
Power Output: The Vibration RPS6U provides +5 VDC and ±12 VDC power outputs. The stable power of this power supply is necessary for the operation of various components within the VM600 series mechanical protection system and related monitoring systems.
Power Capacity: It has a range of 330 W, which ensures that the full rack power requirements of all modules (cards) operating at temperatures up to 50°C (122°F) are met. This RPS6U can be replicated for applications with higher power requirements.
Connectors: The two high-current connectors on the Vibration RPS6U provide power links for the VME bus on the rack backplane, ensuring excellent transmission performance and stable operation of the connected modules.
Product Function
Monitoring System Power Supply: The Vibration RPS6U is an emergency backup power supply for the VM600 MK2 / VM600 series mechanical protection system, condition monitoring system, and performance monitoring system. It provides a very stable and reliable power supply for continuously monitoring the operating status of mechanical equipment, promptly detecting any potential problems, and promoting safe and stable operation of equipment.
Redundant Configuration: RPS6U makes redundancy possible. In the VM600 MK2 / VM600 abe04x system rack, two Vibration RPS6U can be installed to establish redundancy for power supply needs. If one power supply fails, the other power supply can immediately complete the full backup of similar loads and provide 100% of the power needs of the machinery monitoring system, thereby ensuring uninterrupted power supply and significantly improving system availability and reliability.
Compatibility and Integration: As an integral part of the Vibro-Meter® product line, it has excellent compatibility with other components and modules of the VM600 series and can be installed within the frame to work with sensors, monitoring cards and other devices to form a truly complete and effective machinery protection and monitoring solution.
Application Industry
Machinery Monitoring: Vibration RPS6U is used throughout the industrial field, from industrial manufacturing to power generation to petrochemicals, it provides power monitoring for vibration, temperature, pressure and other parameters in industrial machinery. By continuously monitoring the operating status of motors, pumps, compressors or turbines, machinery operation can be stopped before failure occurs, thereby reducing maintenance costs and increasing productivity.
Aerospace and Aviation: In the aerospace industry, it is one of the main units of the aircraft engine monitoring system. It continuously powers sensors and monitoring equipment that monitor the vibration and performance of aircraft engines to ensure aircraft flight safety and help maintenance personnel identify and troubleshoot possible problems before they escalate.
Power Plant Equipment Monitoring: In addition, it is also used to power the monitoring systems of large steam turbines, generators, and other important equipment in the power industry. Accurate reading of equipment parameters and vibration can provide data support for safe and stable power grid operation and reliable power supply.
