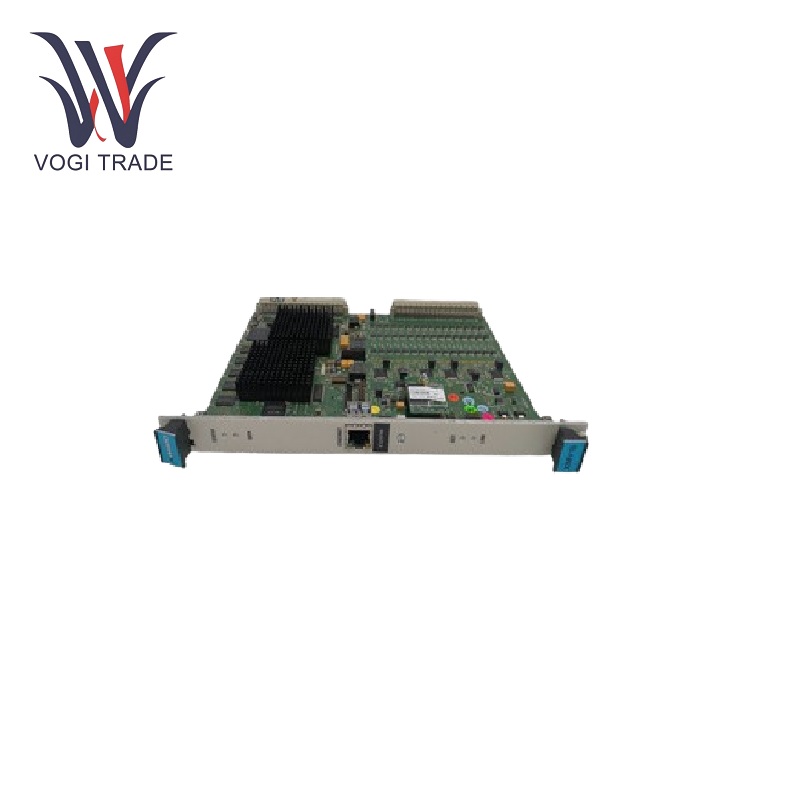

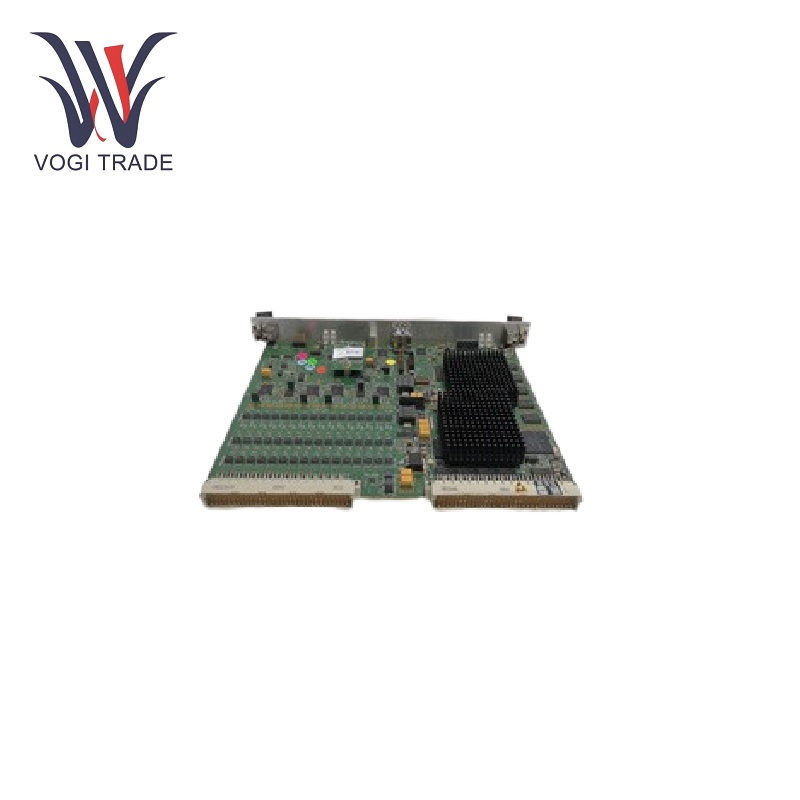

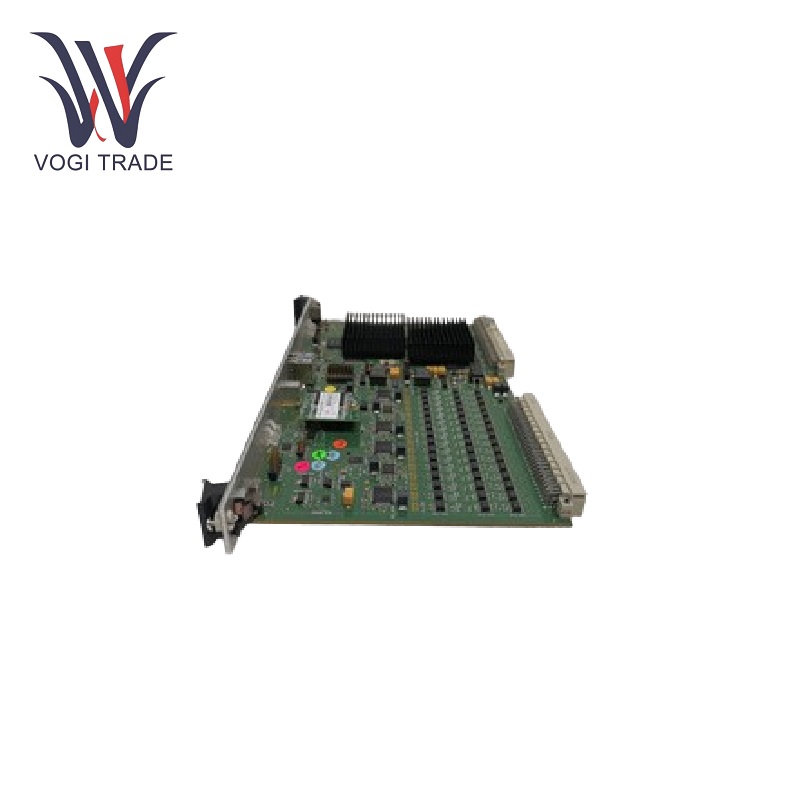

Vibration XMV16

Operation Parameters

Operation Parameters: The Vibration XMV16 has 16 dynamic channels and 4 tachometer (speed) channels that can be independently configured in any way the user chooses. This allows considerable flexibility and a personalization for monitoring numerous vibration sources and their respective speeds.

Data Acquisition: It acquires 24-bit data with high resolution and fidelity. The product's high signal-to-noise ratio (SNR) data ensures that reliable and accurate data reaches the hands of the analyst.

FFT Resolution: The product uses a Fast Fourier Transform (FFT) of up to 6400 lines every 500 milliseconds with high resolution. Analysis of frequency data can indicate the nature of the various vibration components and help determine if there is resonance, imbalance or other mechanical problems.

Operation Voltage: The system's operating voltage is set to 24V, suitable for a variety of industrial environments and power supply configurations.

Compatibility: The Vibration XMV16 is compatible with VM600 frames such as ABE040, ABE042 and ABE056. Together with the XIO16T card, this card pair forms a fully functional pair that can be installed into a monitoring system.

Functionality

General monitoring: The Vibration XMV16 can monitor multiple vibration sources and their respective speeds simultaneously. It can acquire real-time data on amplitude, frequency, phase and other parameters, giving an overview of the mechanical condition of the monitored equipment.

Data processing and analysis: The module can analyze various statistics derived from the vibration data generated by the operation in real time: spectrum analysis, order tracking for identifying trends and anomalies, and diagnosis of possible faults. The processed data is presented in a friendly format that is easy for maintenance personnel to understand.

High configuration flexibility: Each dynamic channel and tachometer channel can be set independently, allowing configuration for each specific monitoring application. This allows the settings to vary for different types of equipment, operating conditions and measurement points, providing accurate and relevant data from the measurement system.

Communication and integration: The product adopts a variety of communication interfaces, such as Ethernet and RS-232, to smoothly transmit data to other systems or even remote locations. It can be easily integrated into existing industrial control and monitoring networks, enabling centralized management and remote access for data analysis and system configuration.

Visualization and Control: The front panel of the Vibration XMV16 allows for quick and easy parameter setup and status monitoring. Real-time data, alarm status, and other useful information can be easily viewed. It also provides users with remote monitoring and troubleshooting capabilities, allowing engineers to access and control modules over the network, simplifying maintenance and troubleshooting activities.

Applications

Industrial Machinery: In manufacturing plants, large-scale vibration monitoring protects various types of machinery, including pumps, compressors, motors, and gearboxes. The use of this machine allows for continuous vibration monitoring, which can detect early mechanical problems so that preventive maintenance can be performed and unplanned downtime can be minimized, thereby improving production efficiency and equipment reliability.

Power Generation: In power plants, the Vibration XMV16 is used to observe vibrations on turbines, generators, and other important power generation hardware. The precise vibration measurement and analysis of the Vibration XMV16 promotes the good and stable operation of generator sets; avoids impending destructive failures; and maximizes the scheduling of maintenance to accommodate production losses.

HVAC Systems: The Vibration XMV16 performs health monitoring and vibration monitoring of HVAC systems such as fans, motors, blowers, and other components. This has resulted in an impressive and valid request to ensure perfect operation of HVAC systems, proper energy consumption and comfort of the building environment, ensuring effective response to vibration-related issues.

Automotive Industry: Automotive manufacturing and testing plants use this product to test automotive components (including engine, transmission and chassis components) for vibration during manufacturing and testing. It ensures product quality and reliability by identifying and correcting vibration issues that could affect vehicle performance and safety.
