Vibro 200-582-911-NHh

Product Overview

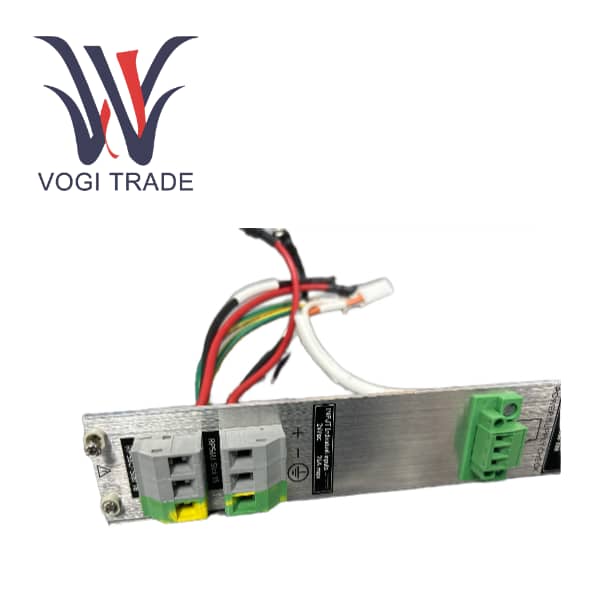

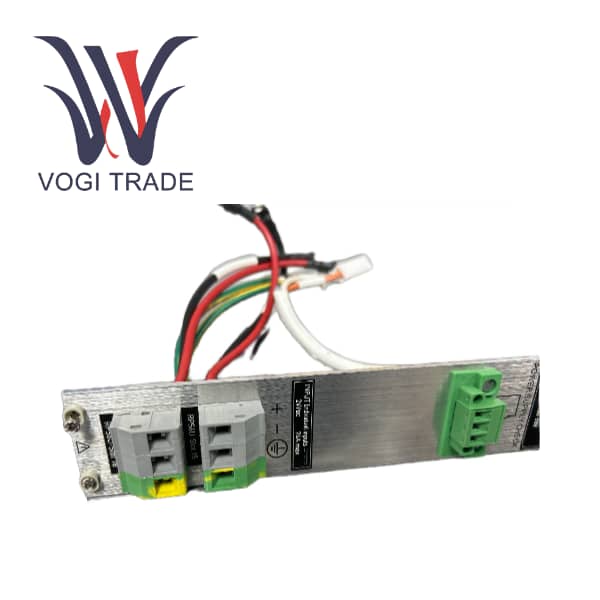

The Parker Meggitt 200-582-911-NHh is a dedicated rear panel for the VM600Mk2/VM600 mechanical protection and condition monitoring system which is used to provide an external AC power input connection for the RPS6U power module installed at the front of the rack.

This rear panel is an important component of the VM600Mk2/VM600 system rack, installed at the rear of the rack, and connected to the RPS6U power module at the front through the back panel. The panel provides a safe and reliable external power access point for the RPS6U power module, including protection functions such as power switches, fuses, and filters.

Specific features

Type                            Rear panel for AC input version

Input voltage               120/230 VAC

Connection method       Screw-terminal connector

Function                      Includes power switch, fuse and filter

Input method               Provides a shared input for all RPS6U power modules in the rack

The 200-582-911-NHh is a universal rear panel component for the VM600Mk2 second-generation mechanical monitoring system and the first-generation VM600 system, and has wide compatibility.

Problems encountered during use

Screw terminals loosening

In a high-vibration environment, if the screw terminals are not tightened to the specified torque, it may cause the connection to loosen, resulting in increased contact resistance, overheating, and even power failure

Solution

Regularly check and use a torque wrench to tighten them according to the specifications.

Incorrect power cord selection

The power plug standards vary in different countries/regions. If the wrong type of power cord is selected during ordering, it may cause the inability to connect to the local power grid

Solution

Before ordering, confirm the local power standards or choose the "no-plug" flyline version (H01) to connect by yourself

Incompatible fuse specifications

If an incorrect specification of fuse is used for replacement, it may cause protection failure or frequent fuse melting

Solution

Replace the fuse strictly according to the specifications specified on the equipment nameplate or manual

Space limitation

The 200-582-911-NHh model has a width of 2 slots/8 HP. However, in some compact cabinet layouts, it may conflict with the wiring of other devices

Solution

Fully consider the wiring space during the design stage. If necessary, choose a narrower version if available

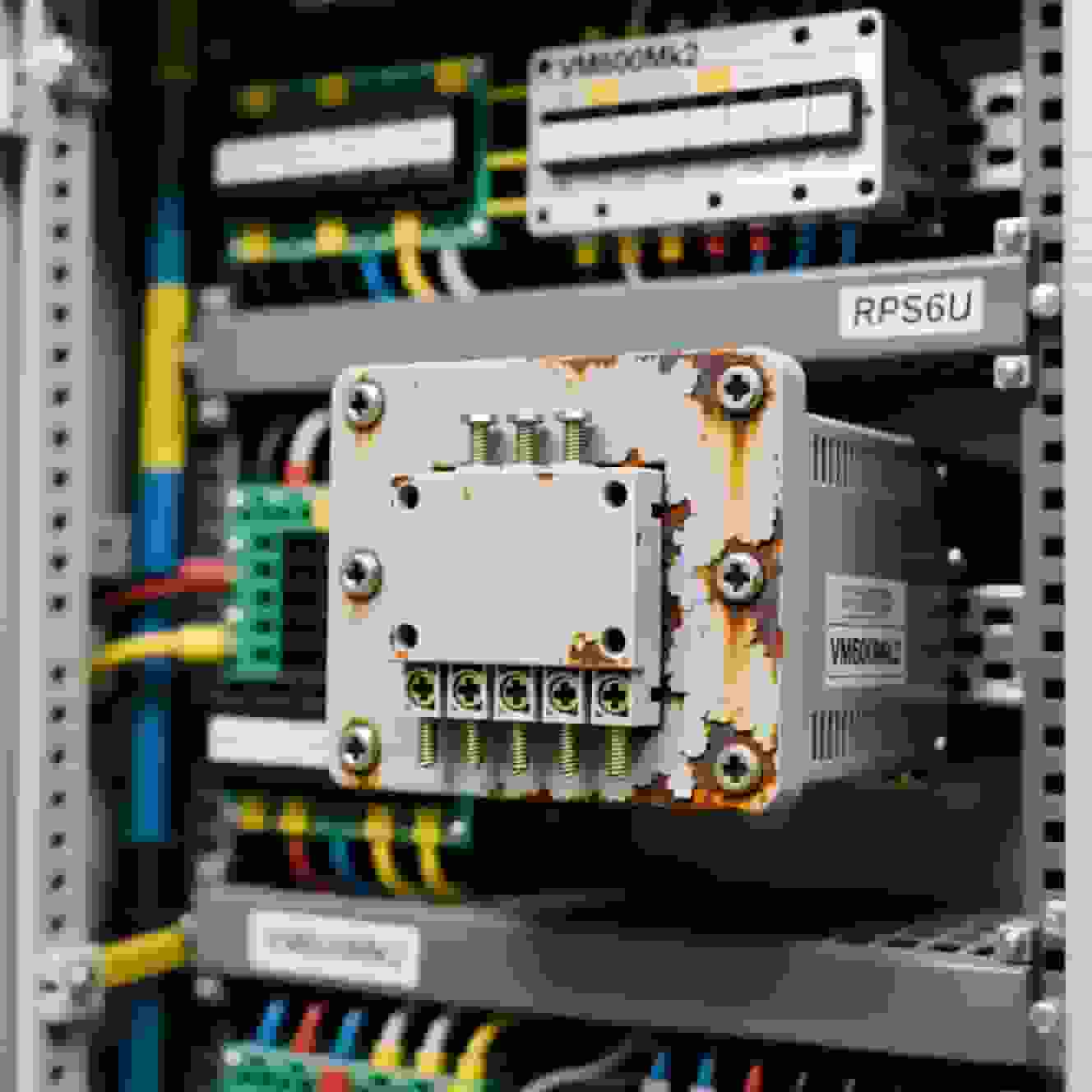

Corrosion in humid environments

In high humidity or salt spray environments, the screw terminals may experience corrosion and result in poor contact

Solution

Use anti-corrosion terminal protectants or choose a version with additional protective coatings

Risk of misoperation

Improper position of the power switch may lead to misoperation and accidental power cut of the system

Solution

Install a protective cover on the switch or clearly mark it in the operation procedures

Complexity of dual power configuration

When two RPS6U power supplies are installed in the rack, the 200-582-911-NHh provides a shared input and cannot achieve true power redundancy

Solution

If power redundancy is required, choose a dual-input version like 200-582-962-NHh or 200-582-960-NHh
