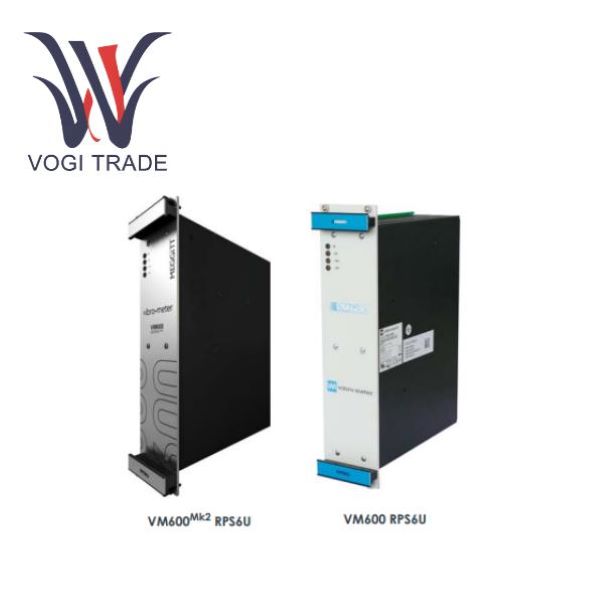

Brand: Vibro-Meter Description: Rack Power Supply Condition：New Certificate：COO TEST REPORT WARRANTY LETTER Warranty:1 year Inventory Qty:2 Payment term:T/T Shipping Port:Xiamen The Meggitt RPS6U 200-582-200-122 is a high-performance Rack Power Supply Unit specifically designed for the VM600 series mechanical protection and condition monitoring systems. It belongs to the Vibra-meter product line and is mainly used to provide stable and reliable DC power for processing modules such as MPC4 and IOC4 within the rack
|
Manufacture |
Vibro-Meter |
|
Model Number |
RPS6U |
|
Ordering Number |
200-582-200-013 |
|
Catalog |
rack power supply |
|
Country Of Origin |
Switzerland |
|
Humidity |
5 to 90%, non-condensing |
|
Drop test |
30° drop angle |
|
Vibration |
10 to 55 Hz, 0.35 mm peak below resonance and 2 g peak above, 6 hours/axis |
|
Weight |
0.8kg |
Product functional features
RPS6U 200-582-200-122
The wide voltage input and high stability feature a wide input voltage range, which can adapt to the power supply environment with large fluctuations in industrial sites. Its output voltage stability is extremely high (≤±0.2%), ensuring the precise operation of sensitive electronic components inside the rack.
Redundancy and hot-swapping support dual power supply installation
When configured in redundant mode, if the main power supply (PS1) fails, the backup power supply (PS2) will take over seamlessly to ensure the continuous operation of the system. Supports live plugging and unplugging, facilitating maintenance and replacement. Comprehensive protection mechanism
Overvoltage protection: Automatically cut off when the output voltage exceeds the safe range.
Short-circuit protection: A continuous short circuit at the output terminal will not damage the power supply, and it will automatically recover after the fault is eliminated.
Micro-interruption tolerance: It has a certain ability to resist micro-interruptions in the power grid, and the specific duration depends on the size of the load.
Status indication and alarm: The POWER module is equipped with indicator lights, usually green Power and red FAULT, and outputs dry contact signals indicating normal/faulty power Supply to the outside through the Power Supply Check Relay at the rear of the rack.
VME bus compatibility: Fully compatible with the VME bus standard, ensuring seamless communication and power supply with VM600 series modules
Applicable industry scope
RPS6U 200-582-200-122. In the power industry, the monitoring systems for steam turbines and generators in coal-fired/gas-fired power plants are usually powered by UPS 24Vdc.
Petrochemical industry: Monitoring of compressors and pump sets in oil refineries and chemical plants, and use in control cabinets outside explosion-proof areas.
Water treatment: Automation control system for pumping stations in large water plants.
Rail transit: Auxiliary monitoring systems for locomotives or subways.

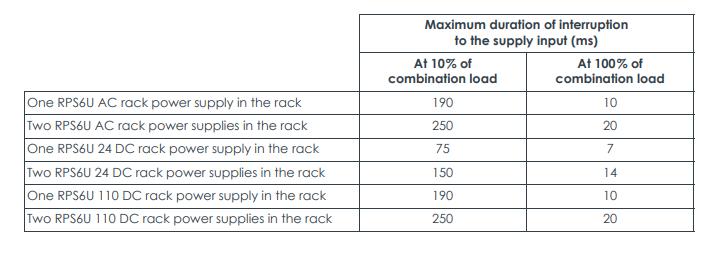

The table below shows the maximum permissible duration of an interruption (cut) to the external AC or DC mains supply used as the input voltage to an RPS6U rack power supply. The maximum duration values depend on the maximum combination load for the RPS6U rack power supply,
the number of RPS6U rack power supplies installed in the rack and the number of modules (cards) installed in the VM600Mk2/VM600 rack (the actual load). If an interruption lasts longer than the maximum permissible duration, then the VM600Mk2/VM600 modules (cards) installed in the rack may reset.
