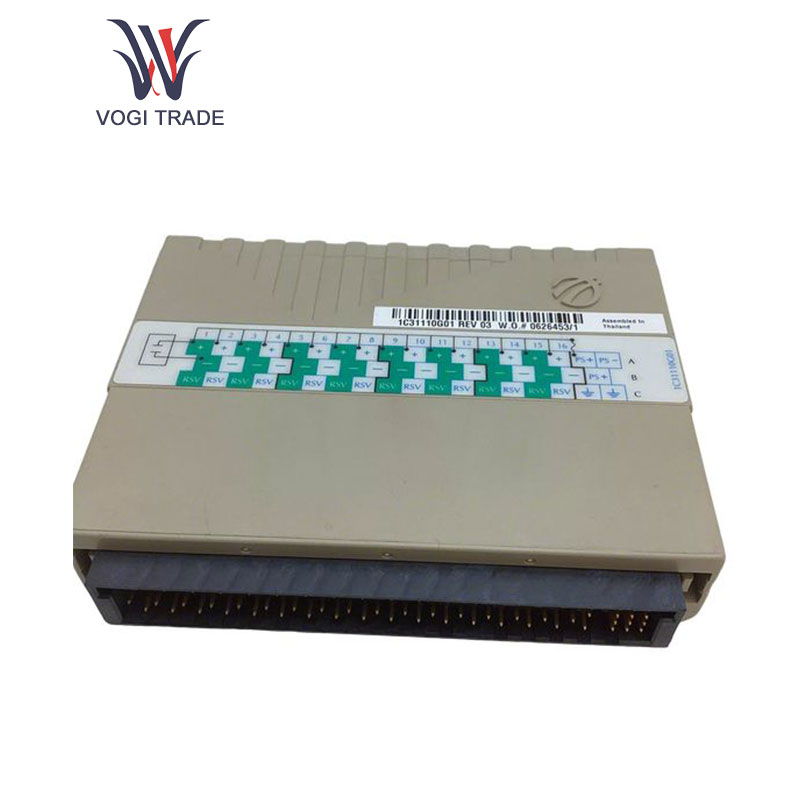

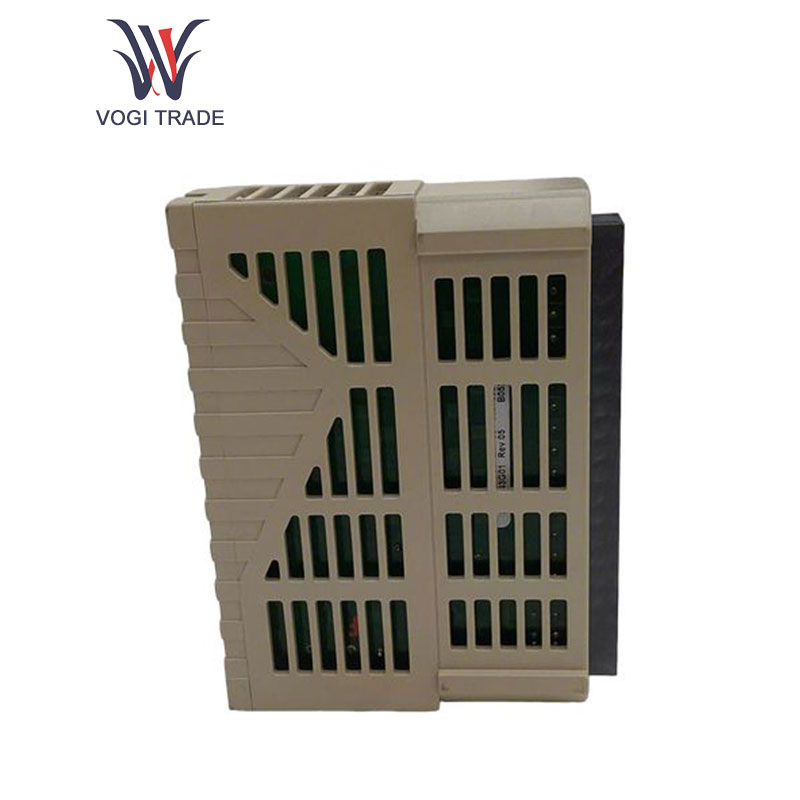

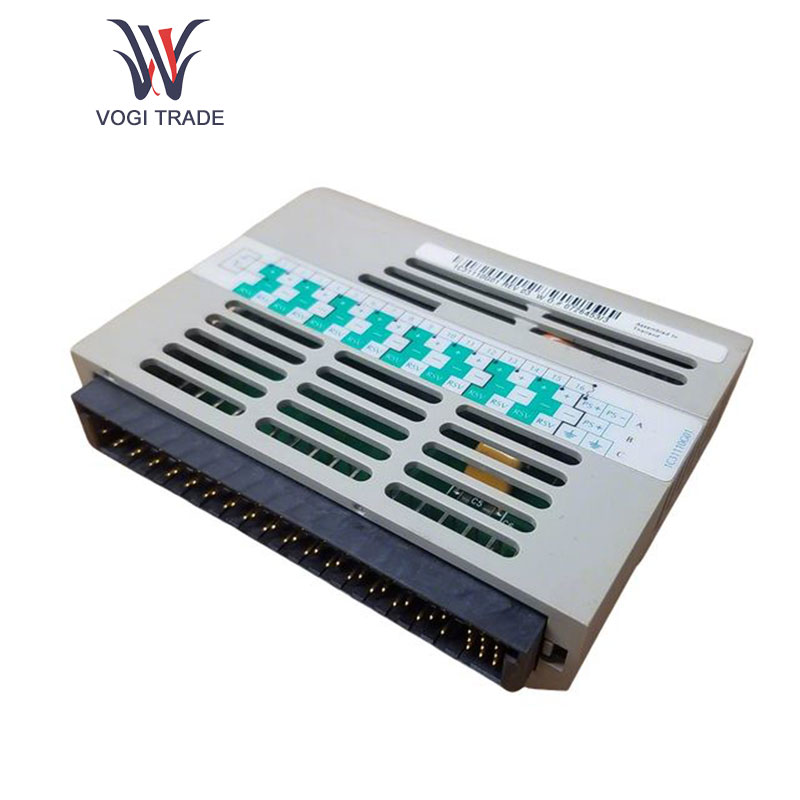

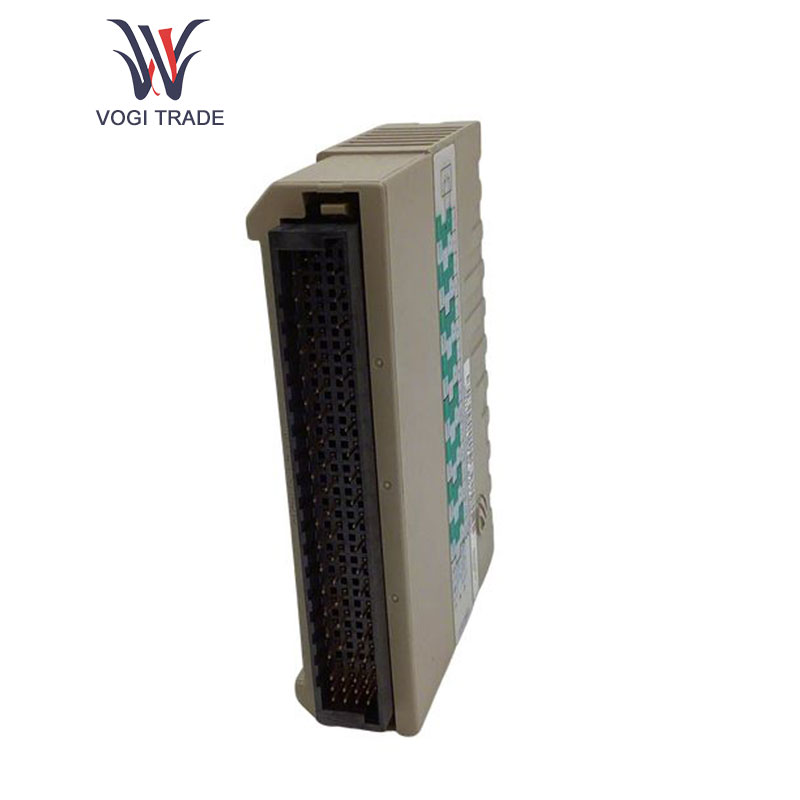

Westinghouse 1C31110G01

Details

The Westinghouse 1C31110G01 can sense the digital information of switch signals that arise because of various sensors in an industrial production line as well as feedback of equipment operational status. There is also a properly-designed and quite fast receiving circuit in the module. This allows it to recognize weak fluctuations of signals, effectively catching every key signal in extremely complicated industrial premises.

Specification

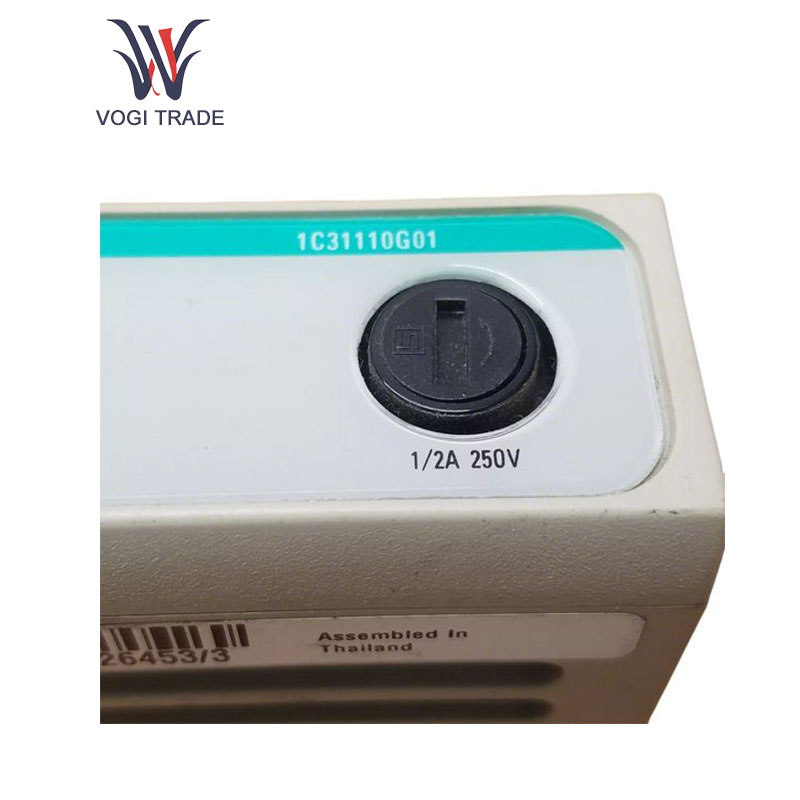

Input voltage: The rated input voltage is 1/2 A, 250 V, which is the range that covers the voltage for the usual digital signal into most industrial situations and allows direct connection to various standard digital signal sources.

Response time: Fast response time is guaranteed by its accuracy in detecting changes in input signals for a short time, together with its nature of being secure for timeous information dispatch to the control system, thus permitting swift control and protection actions; with a typical response of milliseconds.

Signal type: Westinghouse 1C31110G01 is suitable for any type of digital signal such as dry contacts, wet contacts, or anything in between, and may flexibly be configured and selected based on actual application scenarios and the kind of signal output by external devices.

Features

Reliable signal isolation:  Industrial environments are often home to many types of electromagnetic interference sources including the start-stop of large motors, electric welding, and many more. These generate strong fluctuations in fields. The isolation function of Westinghouse 1C31110G01 thus becomes paramount as it utilizes special circuit design in the electrical isolation of the input digital signal they receive outside and the circuit inside your control system. On one hand, it effectively negates any interference signals from entering the control system and, thus, protects the normal operation of the system, preventing false judgments or erratic control commands or timing. In addition, Westinghouse 1C31110G01 removes any adverse effects of fluctuations of signals inside the control system on the operations of external devices, via its illustrated works that focus on reducing fluctuations for stable functioning. This bi-direction isolation played a momentous role toward enhancing overall system reliability and robustness.

Highly versatile: Westinghouse 1C31110G01 will accept dry contact signals, simply switch contact signals, and wet contact signals, switch signals with power. In practical industrial applications, different sensors and devices may very well exhibit different digital signal output methods. The integration of the Westinghouse 1C31110G01 module facilitates simple connections with other devices without the impediments commonly arising from the need for signal conversion devices, optimizing the design of the hardware architecture in the system, thus in some measure considerably simplifying the integration of the control system in terms of time and costs-alleviated hardware connections and modification of software programs.

Speeding up project implementation: as an important component of the Westinghouse 1C31 series DCS system, the Westinghouse 1C31110G01 exhibits high compatibility to other modules and devices of the same series in the integration of the system. During integration, in a simple manner, this module is going to instantly interact with other devices without complex hardware adaptations and extent of software programming change. In a newly established automated factory project, for example, the use of Westinghouse 1C31110G01 facilitates the rapid establishment of the signal acquisition section of the complete control system- connecting, operating with other control modules, operations stations, and other equipment in now time saved that can be put to better use, in an improvement of the market competitiveness of the enterprise involved-save a lot of time and company cost.

Application

Automobile manufacturing industry:

In the automobile assembly workshop, Westinghouse 1C31110G01 is used to collect digital signals of various assembly equipment, such as the tightening completion signal of the tightening machine, the running status signal of the conveyor belt, etc. Through the processing of these signals, automatic control of the production line and accurate distribution of materials are achieved in enhancing the efficiency and quality of automobile assembly.

Oil extraction and refining industry:

1.In the sphere of oil extractions, Westinghouse 1C31110G01 can monitor the pumping unit's workings, for example, by collecting the signals for starting and stopping the unit motor, along with overload protection signals to deal promptly with the potential hazards to the pumping unit and conduct any required maintenance so that production can commence and continue without interruptions.

2.In oil refining, Westinghouse 1C31110G01 finds application as the monitor system of the various production units of the refinery, such as distillation towers, hydrogenation reactors, and other equipment.
